Description

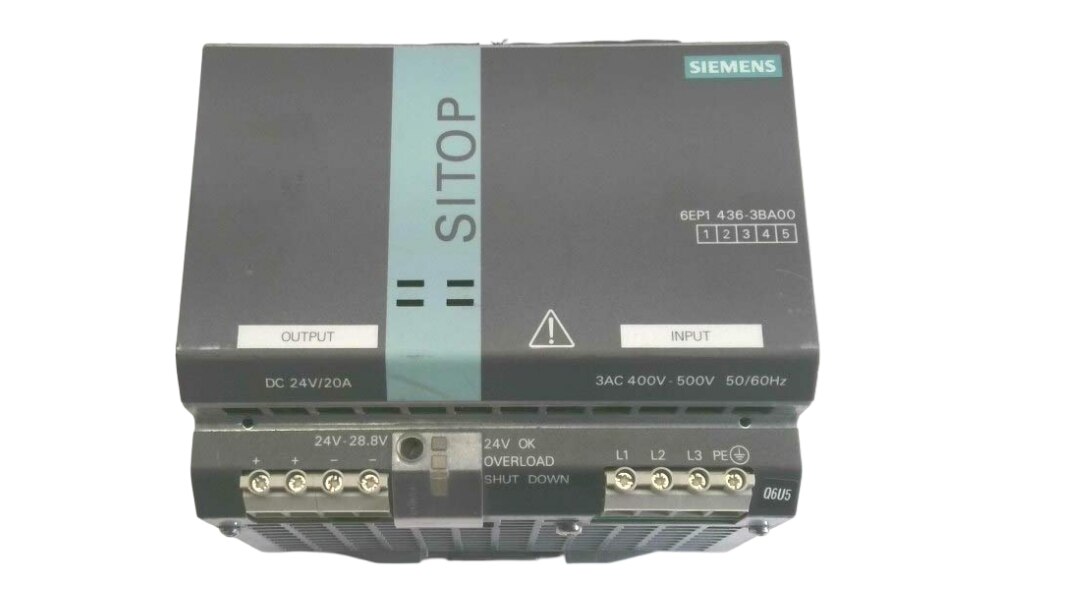

Series: SITOP Modular Type: Stabilized Power Supply Input Voltage: 3 Phase 400–500 V AC Input Voltage Range: 320–550 V AC Input Frequency: 47–63 Hz Output Voltage: 24 V DC Adjustable Output Voltage: 24–28.8 V DC Output Current: 20 A Output Power: 480 W Efficiency: Approx. 90% Mounting Type: DIN Rail Mount Protection Features: Overload, Overvoltage, Short Circuit Protection Cooling Type: Natural Air Cooling Indicator Type: Green LED Status Indicator Connection Type: Screw Terminal Operating Temperature: 0°C to +70°C Protection Rating: IP20 Dimensions: 160 × 125 × 125 mm Weight: Approx. 2 kg Parallel Operation: Yes, Up to 2 Units
