Description

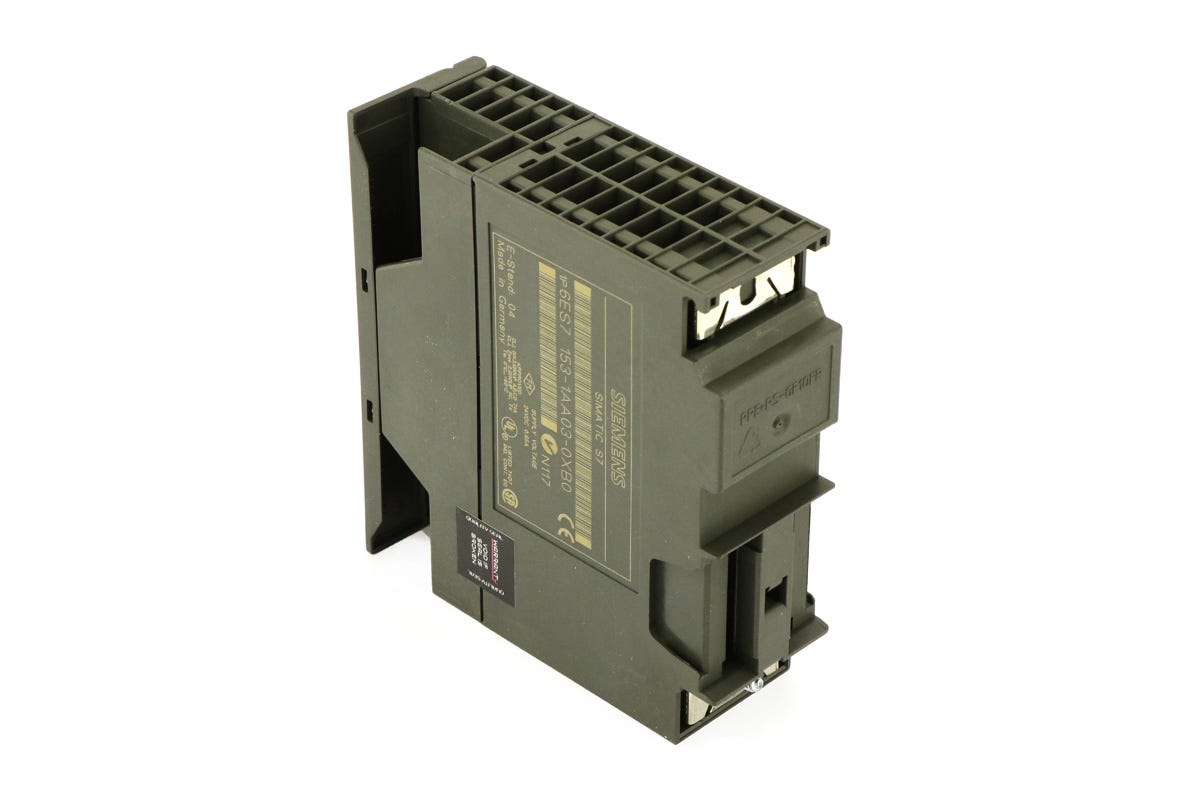

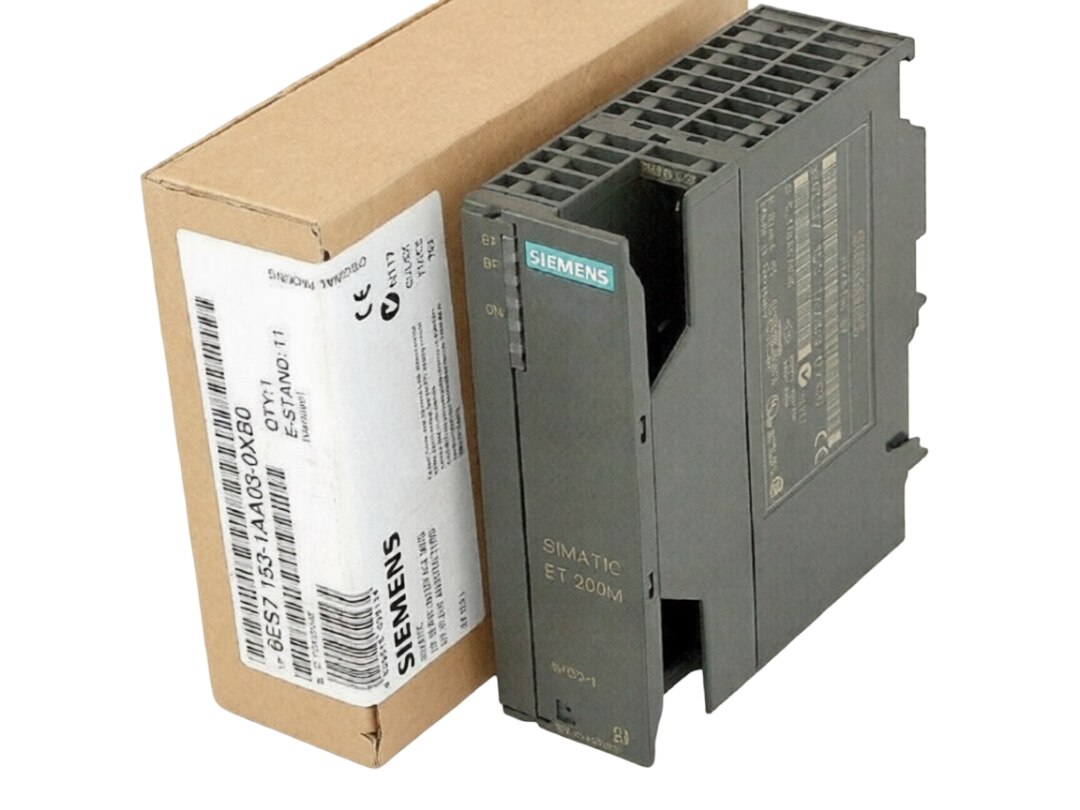

Brand: Siemens • Model Number: 6ES7153-1AA03-0XB0 • Product Series: SIMATIC ET 200M • Product Type: DP Slave Interface Module • Number of Digital Inputs (DI): Supports Connected I/O Modules • Number of Digital Outputs (DO): Supports Connected I/O Modules • Supply Voltage: 24 V DC • Output Type: PROFIBUS DP Communication Output • Work Memory: Integrated Communication Processing • Communication Protocol: PROFIBUS DP / RS485 • Number of Analog Inputs (AI): Supports Connected Analog Modules • Number of Analog Outputs (AO): Supports Connected Analog Modules • Maximum Modules Supported: Up to 8 S7-300 Modules • Data Transfer Rate: Up to 12 Mbit/s • Interface Type: RS485 • Current Consumption: 350 mA • Power Loss: Approx. 3 W • Protection Class: IP20 • Mounting Type: DIN Rail Mount • Operating Temperature: 0°C to +60°C • Dimensions: 40 x 125 x 117 mm • Application: Distributed I/O Systems, Industrial Automation, PLC Systems, Process Control, Factory Automation
