Description

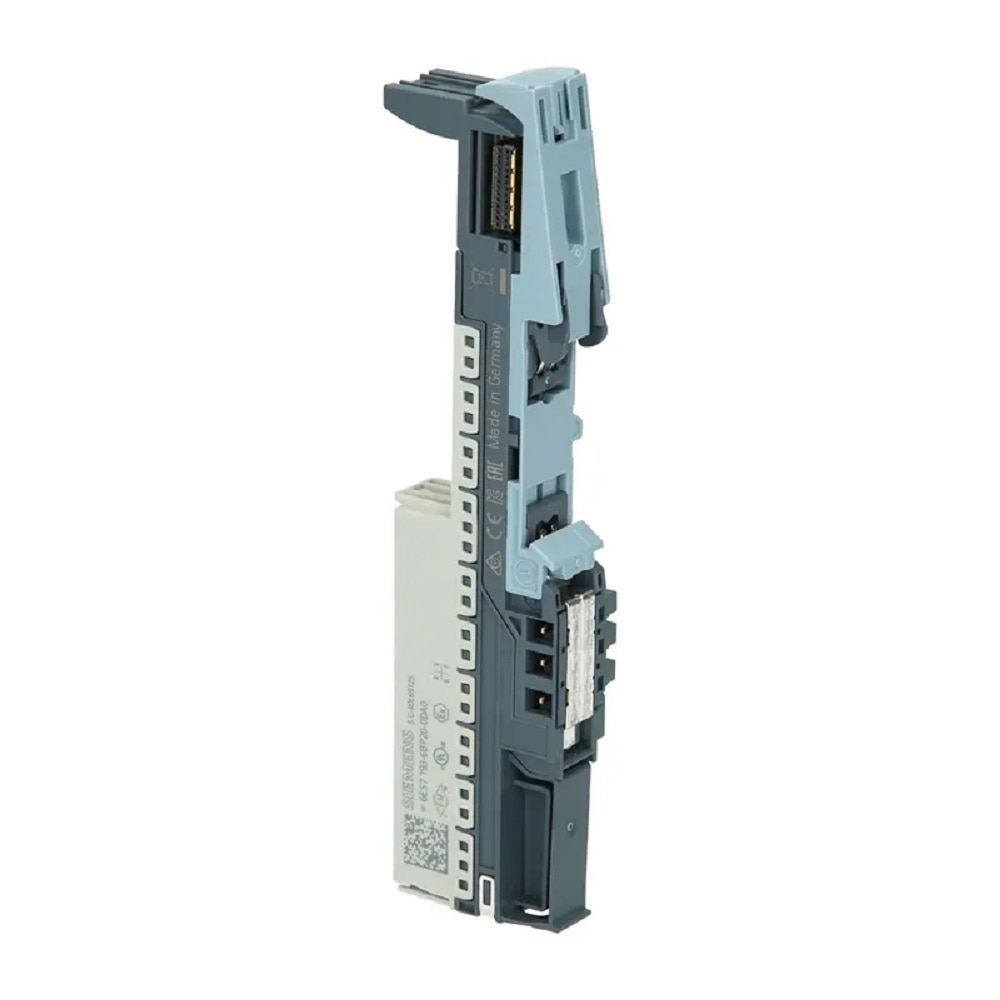

Specifications Brand: Siemens Model: 6ES7193-6BP20-0DA0 Series: SIMATIC ET 200SP Product Type: Base Unit (BU Type A0) Model Type: BU15-P16+A10+2D Mounting: DIN Rail Electrical Rated Voltage: 24 V DC Bus Current Capacity: Up to 10 A Process Terminal Current: Up to 2 A Functional Connection Type: Push-in terminals Process Terminals: 16 Auxiliary Terminals: 10 Load Group: New load group supported Isolation: Tested up to 707 V DC Mechanical Dimensions (W × H × D): 15 × 141 × 35 mm Weight: Approx. 0.05–0.06 kg Environmental Operating Temperature: -30°C to +60°C Protection Class: IP20
