Description

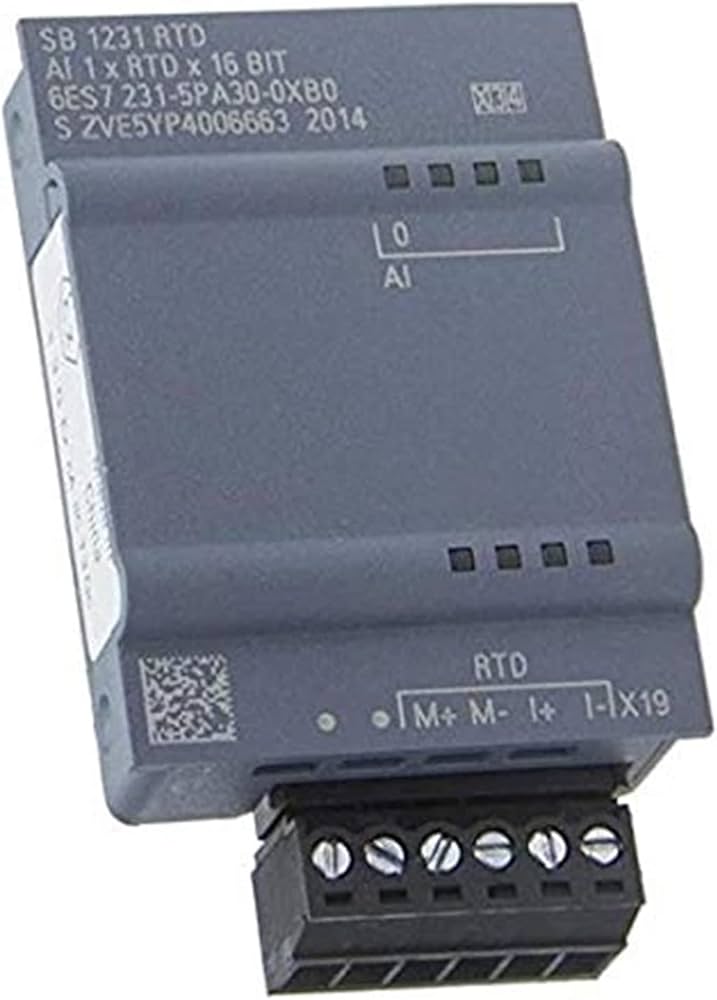

Brand : Siemens Model Number : 6ES7231-5PA30-0XB0 Series : SIMATIC S7-1200 Module Type : Analog Input (RTD Signal Board) Product Family : SB 1231 RTD Number of Channels : 1 Analog Input Input Type : RTD (Resistance Temperature Detector) Supported Sensors : Pt100, Pt1000 Resolution : 15–16 Bit Input Signal Range : Resistance : 0–150 Ω, 0–300 Ω, 0–600 Ω Voltage : -80 mV to +80 mV Supply Voltage : 24 V DC Current Consumption : Approx. 5 mA Power Loss : Approx. 0.5 W Backplane Current : 20 mA (5V DC) Measurement Unit : °C / °F (Configurable) Isolation : Not Isolated Mounting Type : Direct Plug-on CPU (Signal Board) Dimensions (L×W×H) : Approx. 62 × 38 × 21 mm Weight : Approx. 0.03 kg Operating Temperature : -20°C to +60°C IP Rating : IP20 Country of Origin : China Product Status : Active
