Description

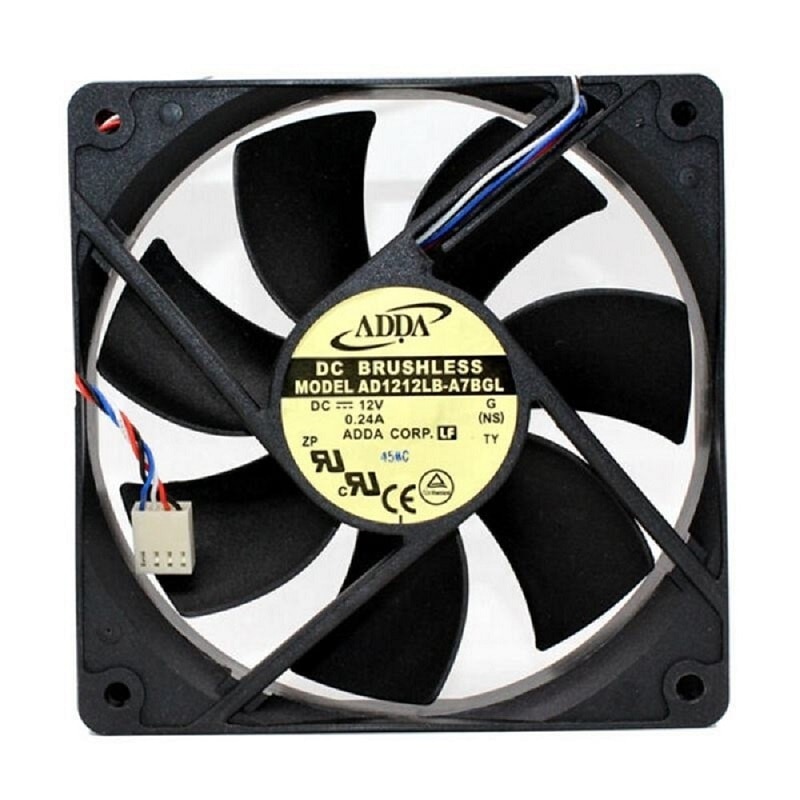

ADDA AD1212LB-A7BGL is a high-quality 120mm DC axial cooling fan designed for efficient and reliable thermal management. Operating at 12V DC, it features a durable ball-bearing design, low noise operation, and stable airflow performance, making it ideal for servers, control panels, telecom equipment, UPS systems, and various industrial cooling applications. Brand: ADDA Corporation Model: AD1212LB-A7BGL Product Type: DC Axial Cooling Fan Voltage: 12 VDC Frequency: Not Applicable (DC Fan) Current: 0.30 A Power Consumption: 3.6 W Fan Size: 120 × 120 × 25 mm Blade Material: PBT Thermoplastic (UL94V-0) Frame Material: Plastic Bearing Type: Ball Bearing Number of Wires: 3 Wires (with Tachometer Signal) Rotational Speed: 1650 RPM Air Flow: 69.5 CFM (Approx.) Static Pressure: 2.5 mmH₂O (Approx.) Noise Level: 32 dBA (Approx.) Operating Temperature: -10°C to +70°C Life Expectancy: Up to 70,000 Hours @ 40°C Mounting Type: Axial Mounting
