Description

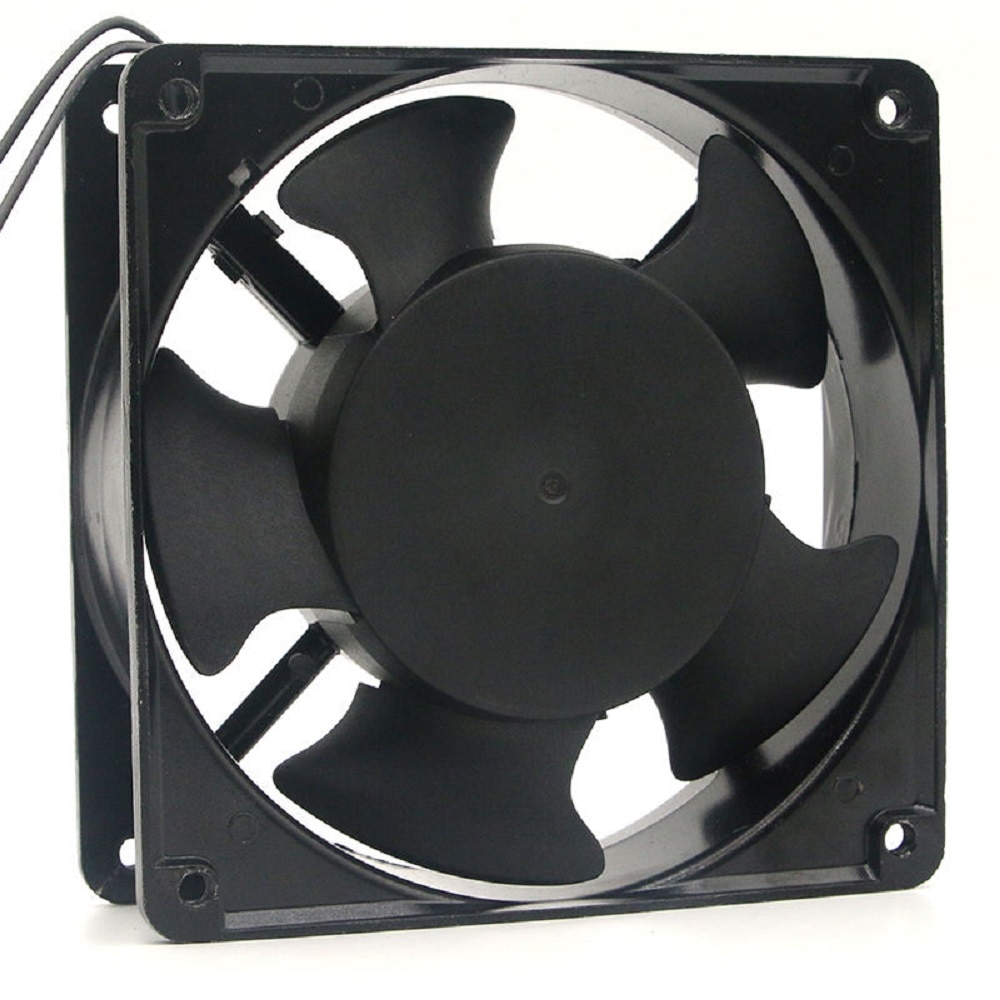

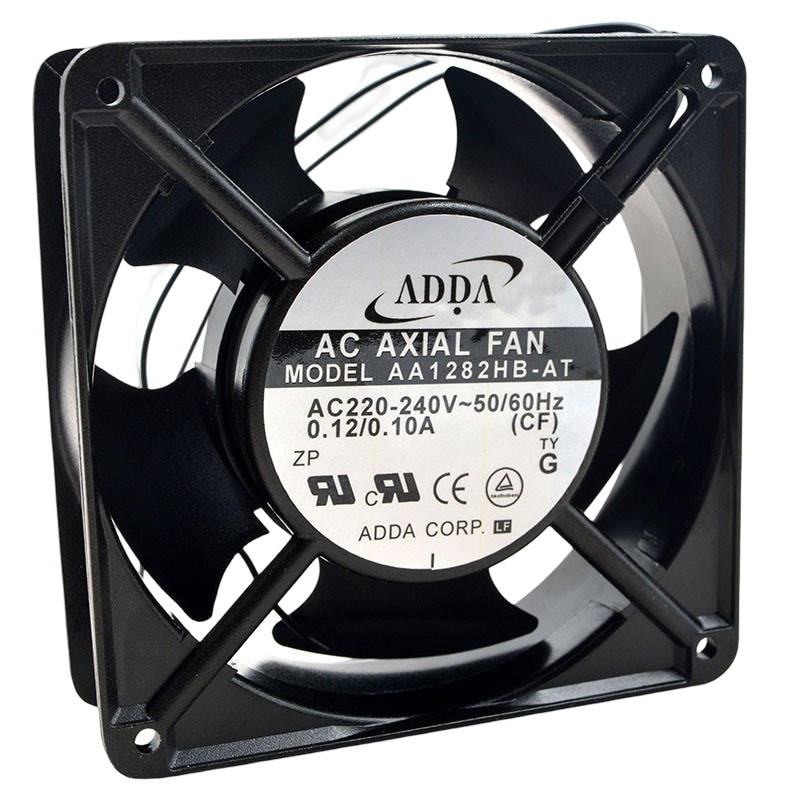

Brand: ADDA Corporation Model: AA1282HB-AT Product Type: AC Axial Cooling Fan Voltage: 220-240 VAC / 230 VAC Frequency: 50/60 Hz Current: 0.13 A (50 Hz), 0.11 A (60 Hz) Power Consumption: 31.2 W (50 Hz), 26.4 W (60 Hz) Fan Size: 120 × 120 × 38 mm Blade Material: PBT Plastic (UL94V-0) Frame Material: Aluminum Alloy Bearing Type: Dual Ball Bearing Rotational Speed: 2400 RPM (50 Hz), 2500 RPM (60 Hz) Air Flow: 92.6 CFM (50 Hz), 100.2 CFM (60 Hz) Noise Level: 44.5 dBA (Approx.) Connection Type: Terminal Connection Operating Temperature: -10°C to +70°C Application: Industrial Control Panels, Telecom Equipment, UPS Systems, Power Supplies, Inverters, HVAC Equipment, and Electronic Cooling Applications
