Description

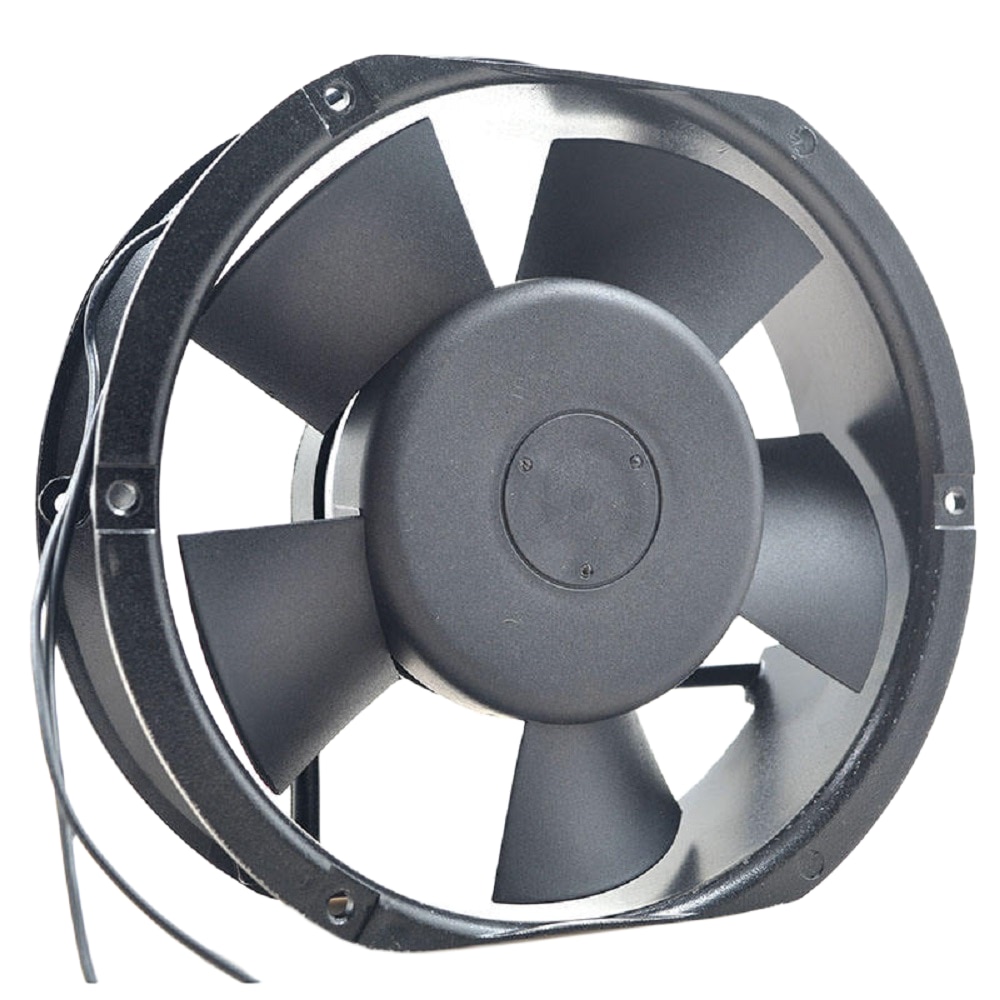

ADDA AA1752HB-AW/AT is a heavy-duty AC axial cooling fan engineered for high-airflow industrial cooling applications. Featuring a rugged die-cast aluminum frame, dual ball-bearing construction, and reliable continuous-duty performance, this fan is ideal for electrical panels, UPS systems, telecom equipment, industrial machinery, power supplies, and automation cabinets requiring efficient heat dissipation. Brand: ADDA Corporation Model: AA1752HB-AW/AT Product Type: AC Axial Cooling Fan Voltage: 220–240 VAC Frequency: 50/60 Hz Current: 0.45 A (50 Hz), 0.40 A (60 Hz) Power Consumption: 100 W (Approx.) Fan Size: 172 × 150 × 51 mm Blade Material: Thermoplastic (UL94V-0) Frame Material: Die-Cast Aluminum Bearing Type: Dual Ball Bearing Number of Blades: 5 Rotational Speed: 2800 RPM (50 Hz), 3200 RPM (60 Hz) Air Flow: Up to 235 CFM Noise Level: 52 dBA (Approx.) Insulation Resistance: 500 MΩ Minimum Dielectric Strength: 1500 VAC for 1 Minute Operating Temperature: -10°C to +70°C Mounting Type: Panel / Cabinet Mounting
