Description

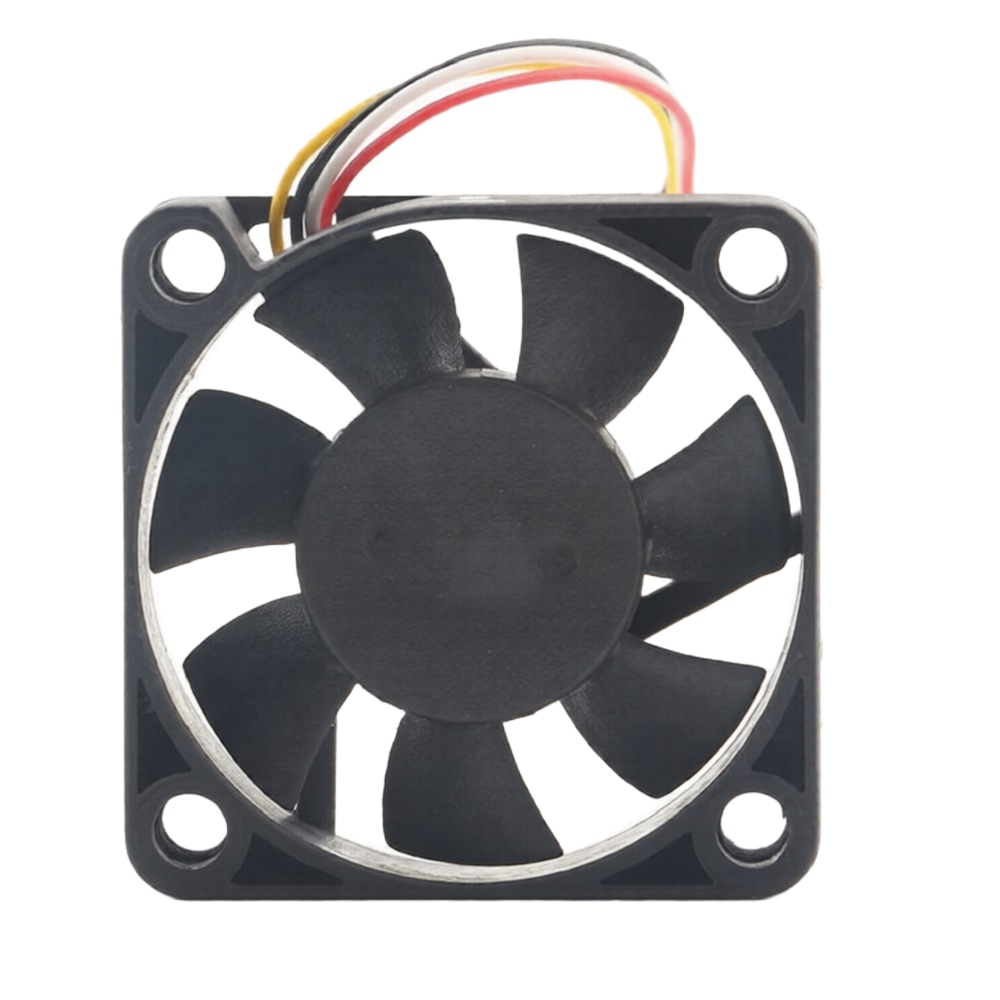

ADDA AD0405MB-G7B is a compact 5V DC axial cooling fan designed for efficient heat dissipation in electronic and industrial equipment. Featuring a reliable ball-bearing design, low power consumption, quiet operation, and long service life, it is ideal for networking devices, DVR systems, mini computers, control panels, and power supply cooling applications. Brand: ADDA Corporation Model: AD0405MB-G7B Product Type: DC Axial Cooling Fan Voltage: 5 VDC Frequency: Not Applicable (DC Fan) Current: 0.09 A Power Consumption: 0.45 W Fan Size: 40 × 40 × 10 mm Blade Material: Thermoplastic PBT (UL94V-0) Frame Material: Plastic Bearing Type: Ball Bearing Number of Wires: 2 Wires Rotational Speed: 5000 RPM (Approx.) Air Flow: 5.8 CFM (Approx.) Static Pressure: 2.8 mmH₂O (Approx.) Noise Level: 23 dBA (Approx.) Operating Temperature: -10°C to +70°C Life Expectancy: Up to 50,000 Hours @ 40°C Mounting Type: Axial Mounting
