Description

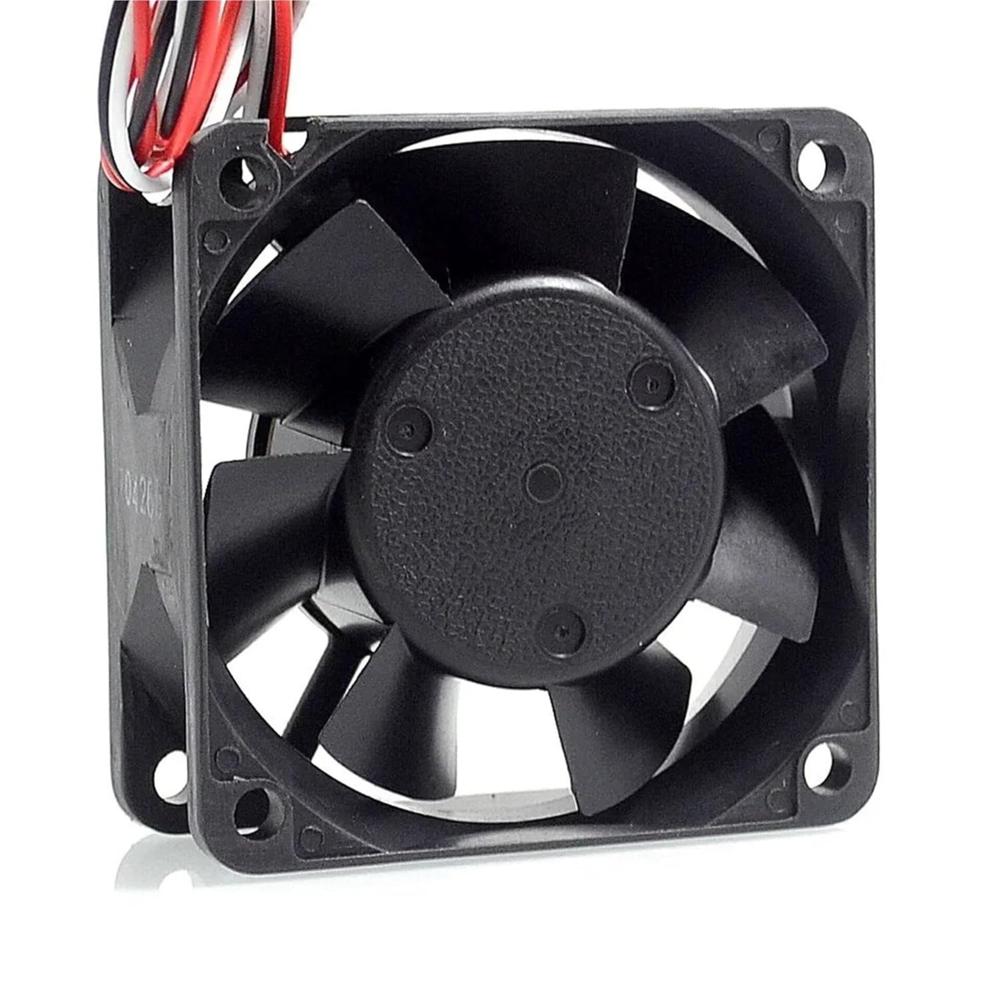

The ADDA AD0624HB-A71GL is a high-performance DC axial cooling fan designed for industrial automation systems, telecom equipment, servers, power supplies, UPS systems, and control panels. It delivers reliable airflow, low noise operation, and long service life with a durable ball bearing design. (Some values are based on the AD0624HB-A series specifications as the A71GL variant datasheet is not publicly available.) Brand: ADDA Model: AD0624HB-A17GL Product Type: DC Axial Cooling Fan Fan Type: Axial Cooling Fan Voltage: 24 V DC Current: 0.15 A Power: 3.60 W Frequency: DC (Not Applicable) Size: 60 mm × 60 mm Dimensions (L × W × H): 60 × 60 × 25 mm Dimensions (Inch): 2.36 × 2.36 × 0.98 Inch Thickness: 25 mm Blade Material: Plastic (PBT) Frame Material: Glass Fiber Reinforced PBT Bearing Type: Ball Bearing Number of Blades: 7 Rotational Speed: 4500 RPM Airflow: 23.2 CFM (Approx.) Static Pressure: 0.188 Inch-H₂O (Approx.) Noise Level: 32.3 dBA Phase: DC Power Connection: 2 Wire Lead Color: Black Application: Servers, Industrial Equipment, UPS Systems, Telecom Equipment, Medical Devices, Power Supplies, Automation Panels Features: High Airflow, Low Noise, Ball Bearing, Long Service Life, Continuous Duty, Energy Efficient, Reliable Performance Weight: Approx. 68 g (0.068 kg) Package Dimensions (Inch): 3.50 × 3.50 × 1.50 Inch Package Dimensions (cm): 8.9 × 8.9 × 3.8 cm Country of Origin: China
