Description

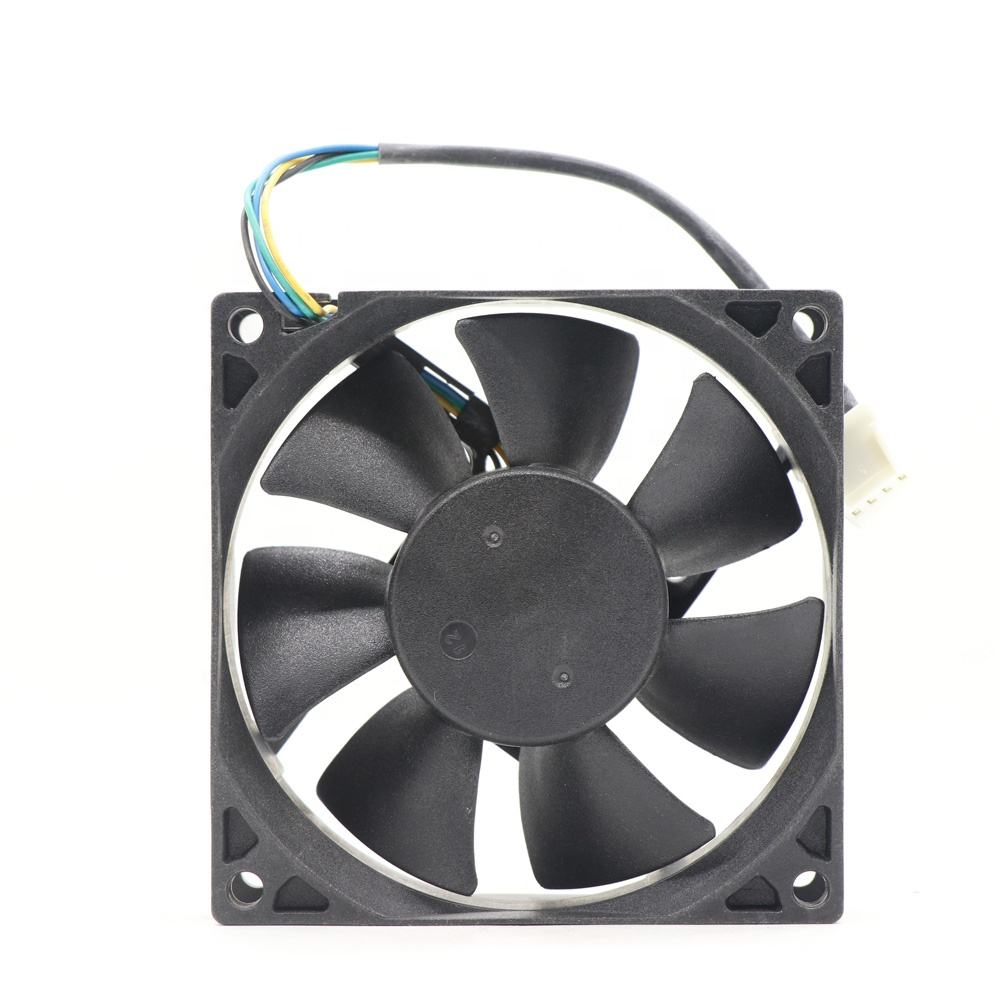

ADDA AD0812UX-A7BGL is a high-performance DC brushless axial cooling fan designed for industrial equipment, servers, telecom systems, power supplies, UPS systems, and electronic control panels. It provides high airflow, reliable cooling performance, low vibration, and long service life with dual ball-bearing construction. Brand : ADDA Model : AD0812UX-A7BGL Fan Type : DC Brushless Axial Cooling Fan Bearing Type : Dual Ball Bearing Rated Voltage : 12 VDC Operating Voltage : 7.0 ~ 13.8 VDC Rated Current : 0.60 A Power Consumption : 7.2 W Fan Size : 80 x 80 x 25 mm Speed : Approx. 5000 RPM Air Flow : Approx. 50 CFM Noise Level : Approx. 42 dBA Connection Type : 3-Wire Lead Motor Type : Brushless DC Motor Frame Material : Thermoplastic (UL94V-0) Operating Temperature : -10°C to +70°C Application : Servers, Telecom Equipment, UPS Systems, Power Supplies, Industrial Equipment, Control Panels
