Description

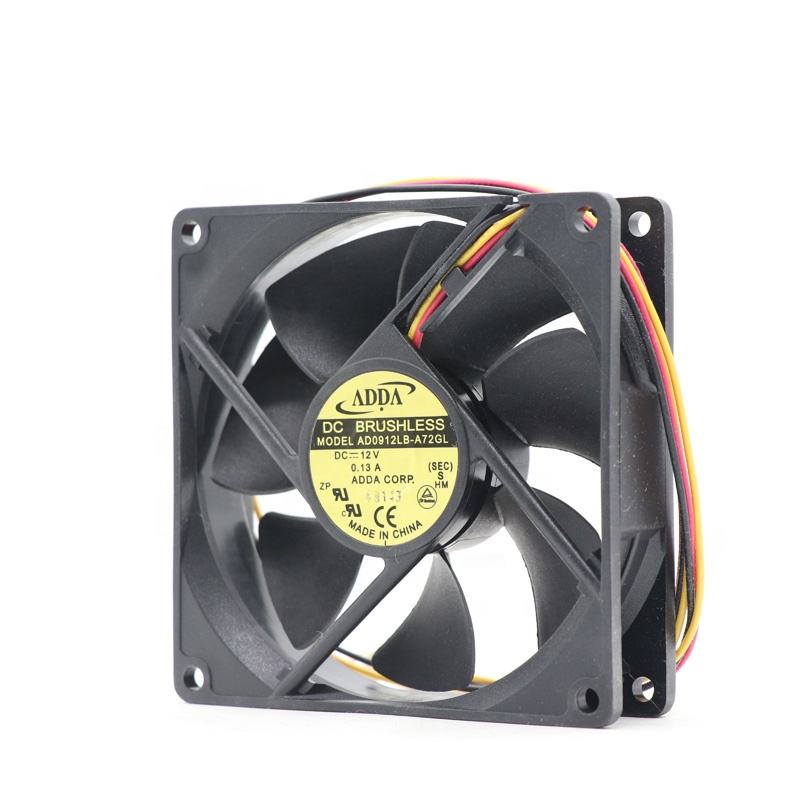

ADDA AD0912LB-A72GL is a reliable DC brushless axial cooling fan designed for industrial electronics, power supplies, telecom equipment, UPS systems, servers, and control panels. It provides efficient airflow, low noise operation, stable performance, and long service life, making it suitable for continuous-duty cooling applications. Brand : ADDA Model : AD0912LB-A72GL Fan Type : DC Brushless Axial Cooling Fan Bearing Type : Ball Bearing Rated Voltage : 12 VDC Rated Current : 0.14 A Power Consumption : 1.68 W Fan Size : 92 x 92 x 25 mm Speed : Approx. 2500 RPM Air Flow : Approx. 42 CFM Static Pressure : Approx. 0.11 Inch-H₂O Noise Level : Approx. 30 dBA Connection Type : 3-Wire Lead Motor Type : Brushless DC Motor Frame Material : Thermoplastic (UL94V-0) Operating Temperature : -10°C to +70°C Application : Servers, UPS Systems, Telecom Equipment, Power Supplies, Industrial Machinery, Electronic Enclosures, Control Panels Net Weight : Approx. 95 g (0.095 kg) Package Dimensions (Inch) : 5.0 x 5.0 x 1.8 Inch Package Dimensions (cm) : 12.70 x 12.70 x 4.57 cm Package Weight : Approx. 150 g (0.15 kg) Features : Low Noise Operation, Energy Efficient Design, Long Life Ball Bearing, Reliable Cooling Performance, Continuous Duty Operation, Industrial Grade Quality.
