Description

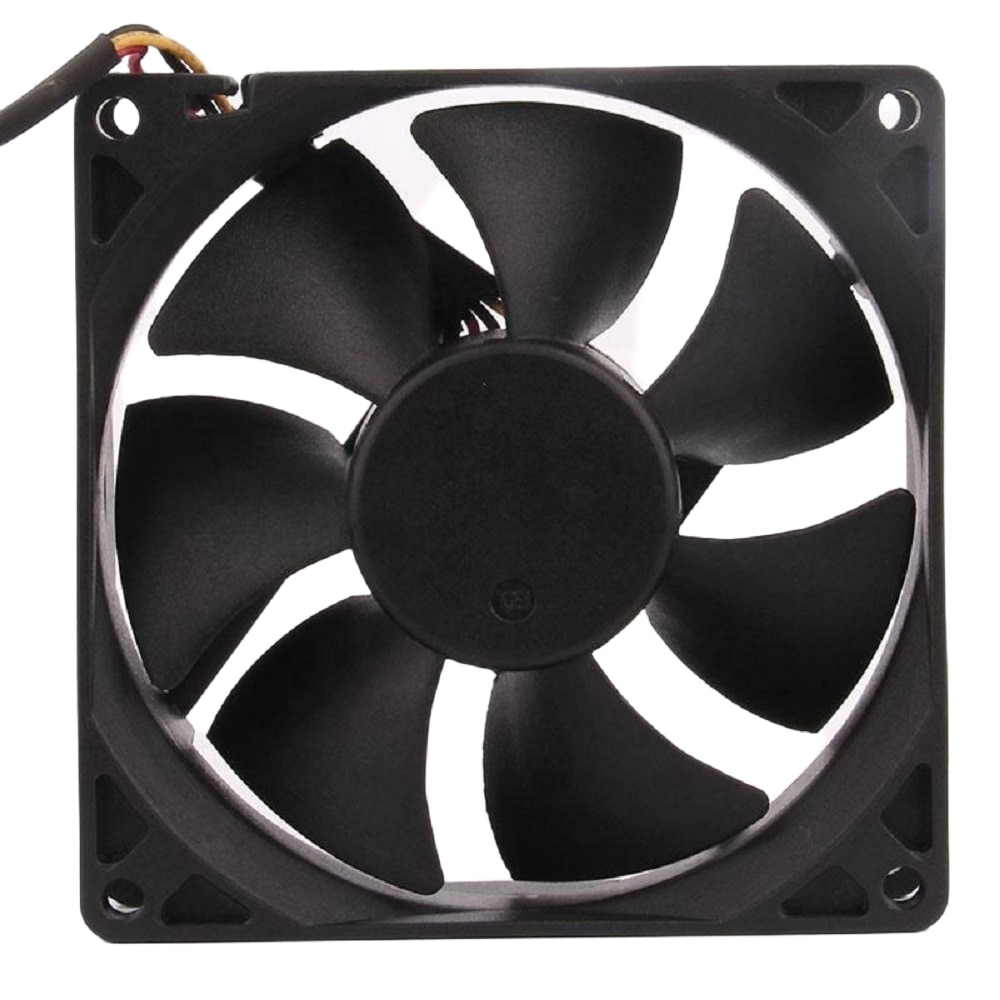

ADDA AD0912XB-A73GL is a high-performance DC brushless axial cooling fan engineered for industrial equipment, servers, telecom systems, power supplies, UPS units, and electronic control panels. It delivers high airflow, efficient heat dissipation, low vibration, and reliable continuous-duty operation with a long-life dual ball bearing design. Brand : ADDA Model : AD0912XB-A73GL Fan Type : DC Brushless Axial Cooling Fan Bearing Type : Dual Ball Bearing Rated Voltage : 12 VDC Operating Voltage : 7.0 ~ 13.8 VDC Rated Current : 1.20 A Power Consumption : 14.4 W Fan Size : 92 x 92 x 38 mm Speed : Approx. 6000 RPM Air Flow : Approx. 110 CFM Static Pressure : High Static Pressure Design Noise Level : Approx. 58 dBA Connection Type : 3-Wire Lead Motor Type : Brushless DC Motor Frame Material : Thermoplastic (UL94V-0) Operating Temperature : -10°C to +70°C Application : Servers, Telecom Equipment, Industrial Machinery, UPS Systems, Power Supplies, Electronic Enclosures, Control Panels
