Description

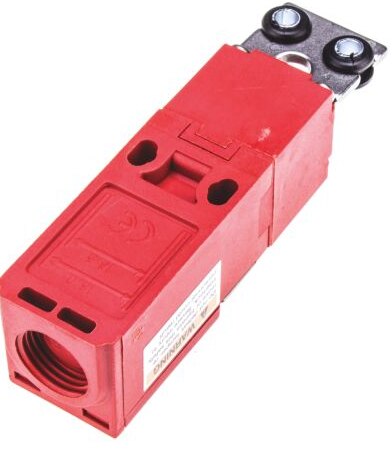

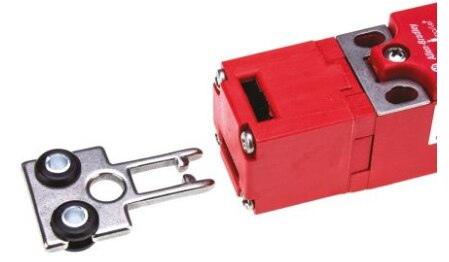

Width 29mm Safety Contacts 1NC Lock Style Key Brand Allen Bradley Guardmaster Actuator Included Yes Minimum Operating Temperature -20°C Maximum Operating Temperature +80°C IP Rating IP67 Auxiliary Contacts 1NO Maximum dc Voltage 600V Series 440K Range Elf Maximum Current 2.2 A, 6 A Number of Head Directions 8 Dimensions 75 x 29 x 25 mm Normal State Configuration 1NC/1NO Housing Material Glass Filled PBT Length 75mm Depth 25mm Maximum ac Voltage 600V Connection Type M16
