Description

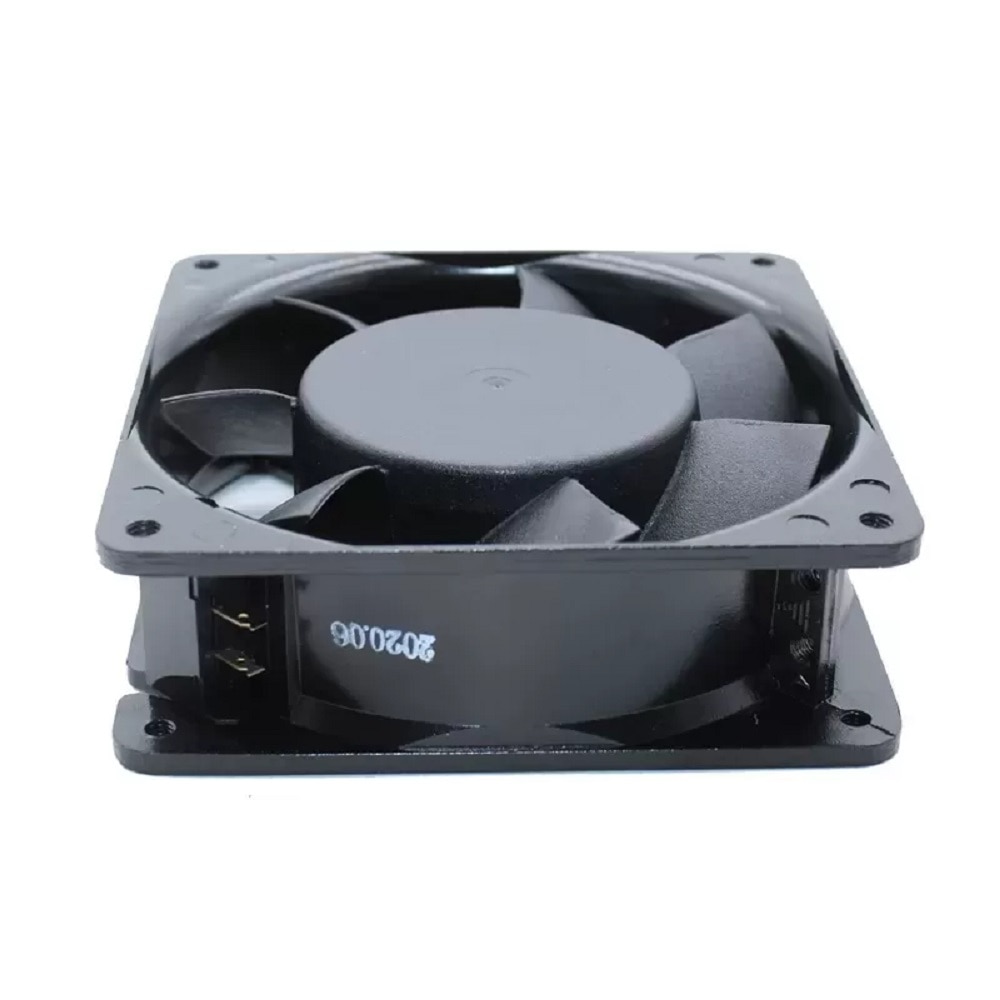

The FP-108-1 S1BU AC Cooling Fan features a rugged die-cast aluminum frame, high-quality thermoplastic impeller, and impedance-protected shaded pole motor. It delivers dependable ventilation and efficient heat dissipation for industrial and commercial equipment operating in demanding environments. Product Type: AC Axial Cooling Fan Model: FP-108-1 S1BU Brand: Commonwealth Rated Voltage: 220–240 V AC Frequency: 50/60 Hz Rated Current: 0.13/0.11 A Power Consumption: 18/17 W Fan Size: 119 × 119 × 38 mm Fan Size (Inch): 4.69 × 4.69 × 1.50 in Fan Speed: 2700/3000 RPM Air Flow: 80/105 CFM (2.30/3.00 m³/min) Static Pressure: 0.23/0.28 inH₂O (Approx. 5.8/7.1 mmH₂O) Noise Level: 42/47 dB(A) Bearing Type: Ball Bearing Motor Type: Shaded Pole AC Motor Frame Material: Die-Cast Aluminum Blade Material: Fiberglass Reinforced Thermoplastic (UL94V-0) Connection Type: Terminal / Wire Lead Protection: Impedance Protected Insulation Class: Class B Operating Temperature: -10°C to +70°C Storage Temperature: -20°C to +75°C Life Expectancy: Up to 100,000 Hours Mounting Type: Panel Mount Application: Electrical Control Panels, Industrial Machinery, UPS Systems, Servo Stabilizers, Telecom Equipment, HVAC Systems, Automation Equipment, Power Supplies
