Description

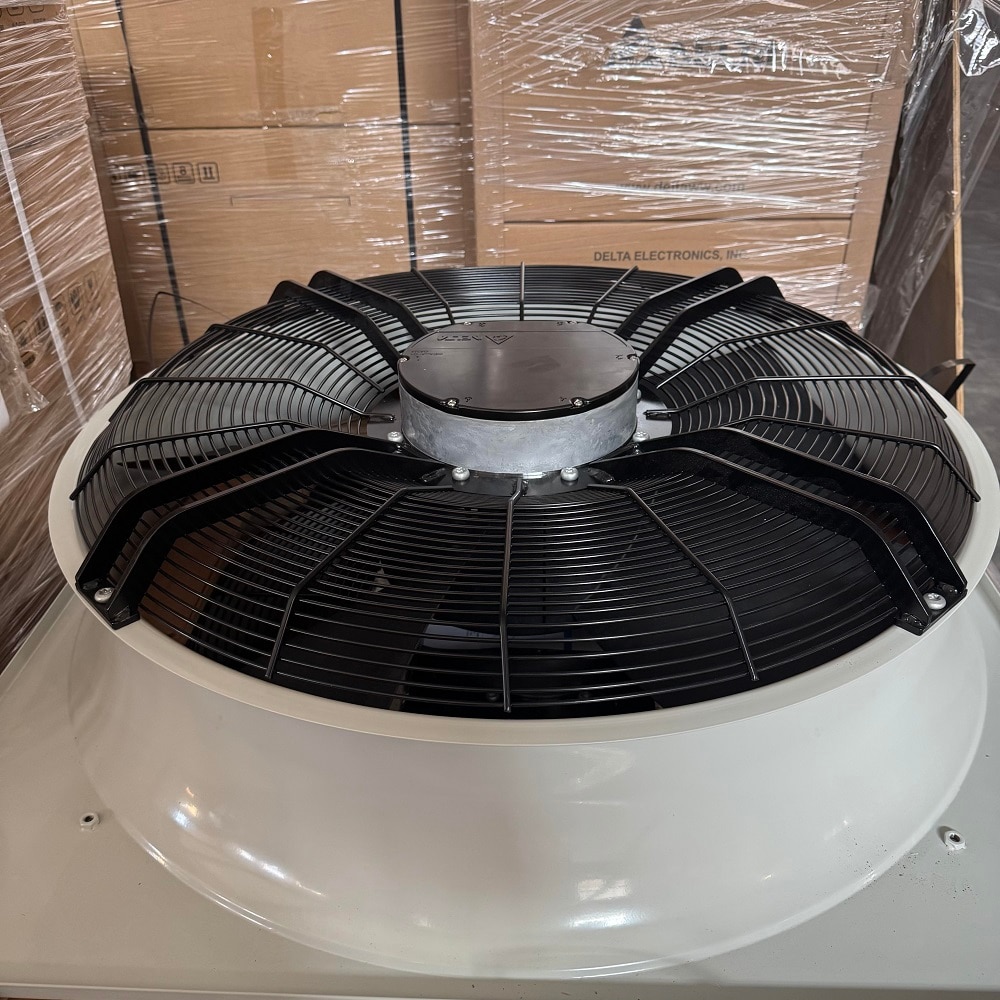

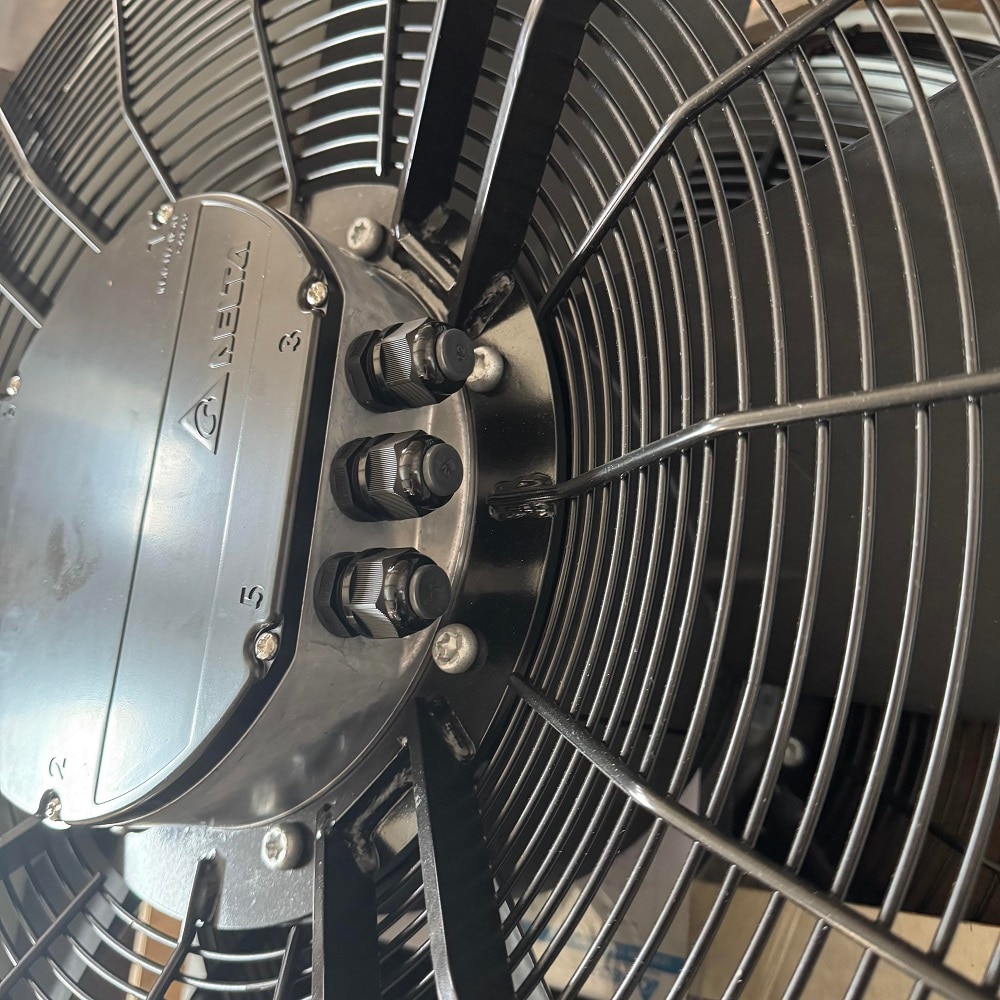

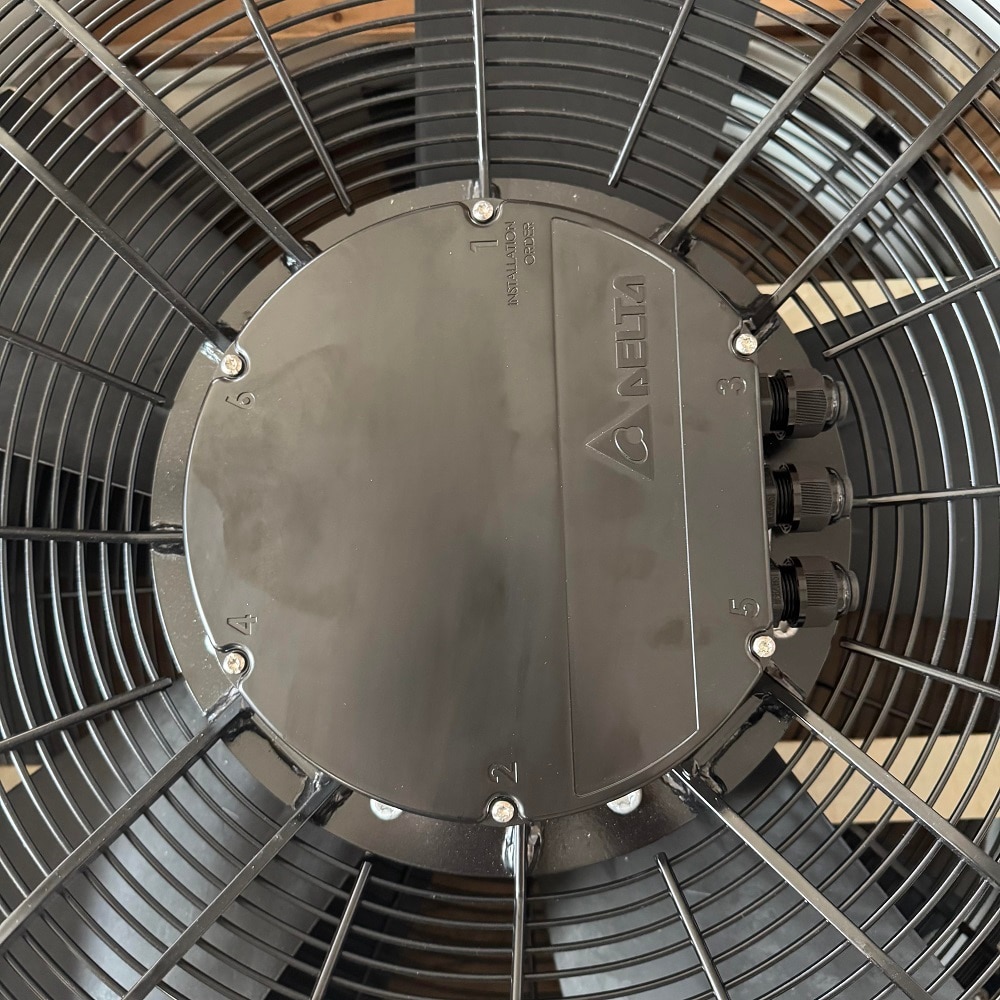

Brand: Delta Model: GTW091PUU23E Fan Type: EC Axial Cooling Fan Fan Size / Dimensions: 1070 × 1070 × 237 mm Impeller Diameter: 910 mm Voltage: 3-Phase 380–480 V AC (Nominal 400 V) Frequency: 50 / 60 Hz Power Consumption: 2320 W (typical) / 3100 W (max) Speed (RPM): ~1100 RPM Air Flow: ~21,286 CFM (36,186 CMH) Static Pressure: 219 Pa Noise Level: ~86 dB(A) Bearing Type: Ball Bearing Motor Type: EC (Electronically Commutated) Motor Control Type: 0–10V / PWM / RS485 (Modbus) Number of Wires: Terminal Block Connection Phase: 3 Phase IP Rating: IP54 Material (Impeller): Plastic
