Description

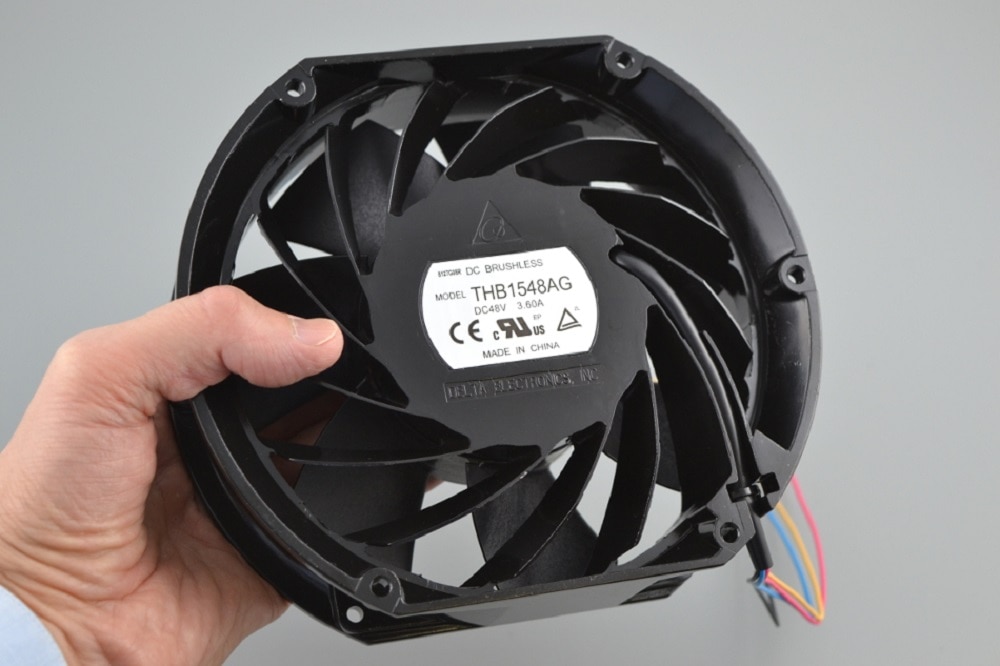

Brand: Delta Model: THB1548AG Fan Type: DC Axial / Tubeaxial Fan Fan Size: 172 mm × 150 mm × 50.8 mm Voltage: 48 V DC Operating Voltage Range: 36 – 60 V DC Current: ~3.0 A Power Consumption: 144 W Speed (RPM): ~7200 – 7500 RPM Air Flow: ~527 CFM (14.9 m³/min) Static Pressure: 3.78 inH₂O Noise Level: ~77 dB(A) Bearing Type: Ball Bearing Number of Wires: 4 Wires Motor Type: Brushless DC Motor Frame Material: Plastic / Die-cast (industrial grade) Blade Material: Plastic Operating Temperature: -10°C to +70°C Weight: ~760–900 g
