Description

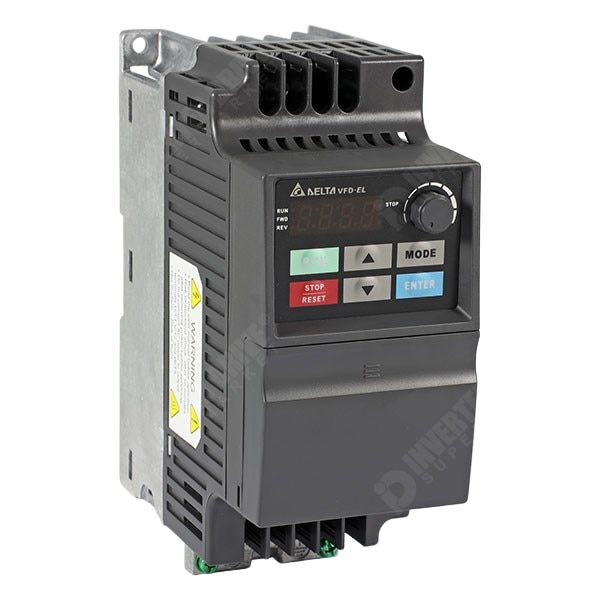

Series: VFD-EL Series Power Rating: 0.4 kW / 0.5 HP Input Voltage: 200–240V AC Input Phase: Single Phase Control Mode: V/F Control, Sensorless Vector Control Motor Power: 0.4 kW Enclosure: IP20 Application: Pumps, Fans, Conveyors, Packaging Machines, Industrial Automation Braking Type: DC Injection Braking Communication: RS-485 Modbus Brand: Delta Frame Size: Compact Micro Drive Cooling Method: Natural Air Cooling EMC Filter: Built-in EMI/EMC Filter Supported Motor Type: AC Induction Motor PLC Function: Built-in PLC Function Available Certifications: CE, UL, RoHS DC Reactor: Optional External DC Reactor Braking Chopper: Built-in Width: Approx. 72 mm Height: Approx. 142 mm Depth: Approx. 152 mm Weight: Approx. 1 Kg Safety Standards: IEC International Standards Compliance Rated Output Current (Heavy Duty): 2.5 A Rated Output Current (Normal Duty): 2.5 A Output Frequency: 0.1–600 Hz Carrier Frequency: 2–15 kHz Overload Tolerance: 150% for 1 Minute Efficiency: Above 95% Power Factor: 0.98 Operating Temperature: -10°C to 50°C Starting Torque: 150% at 5 Hz V/F Curve: Adjustable V/F Curve Rated Output Current (Light Duty): 2.5 A Rated Output Current: 2.5 A Rated Output Current (Super Heavy Duty): Not Applicable Rated Input Current: Approx. 4.8 A Rated Output Capacity (kVA): 0.95 kVA Safe Torque Off (STO): Not Available Rated Output Current (Constant Torque): 2.5 A Rated Output Current (Variable Torque): 2.5 A Input Current (Heavy Duty): 4.8 A Input Current (Normal Duty): 4.8 A
