Description

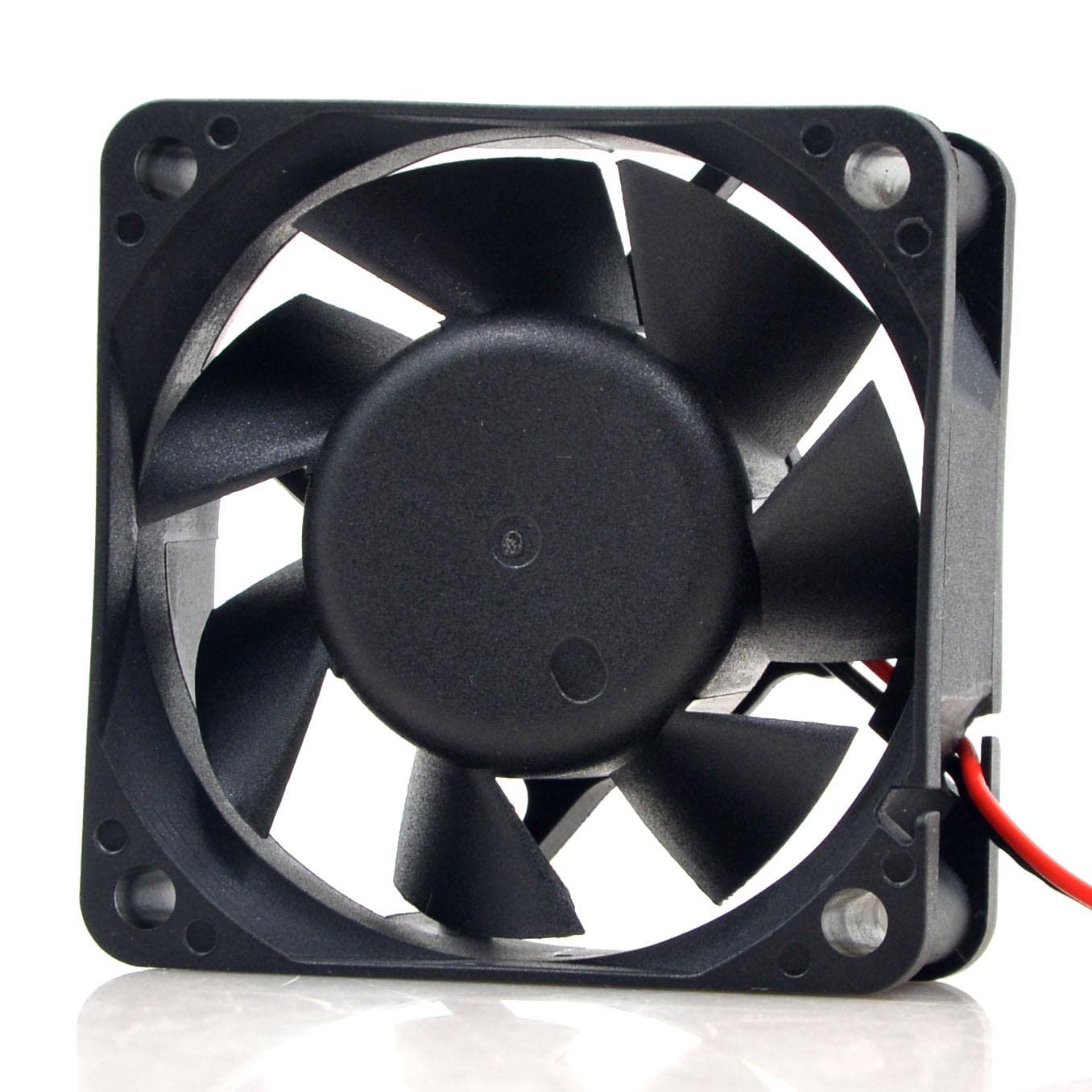

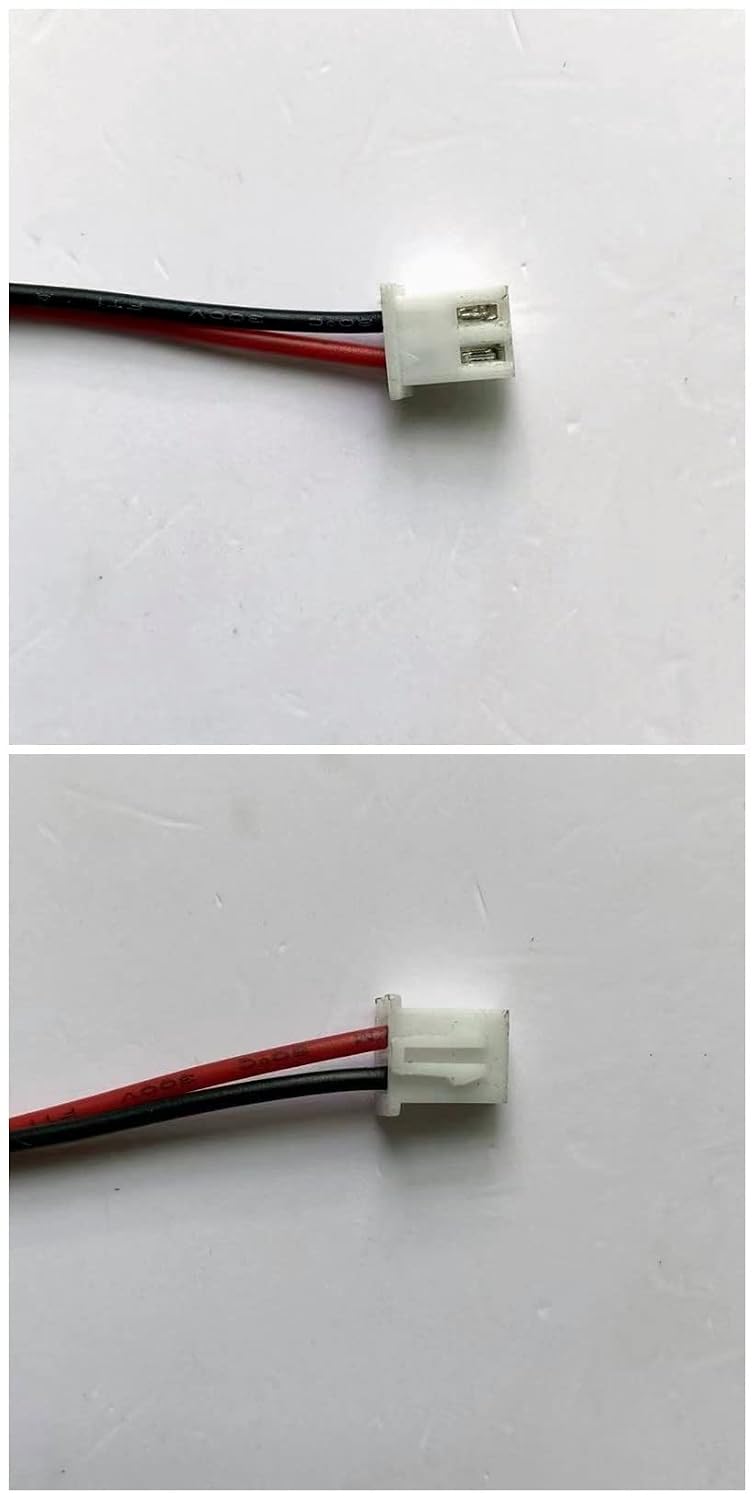

The DF6025M12S DC Cooling Fan features a durable brushless DC motor with ball bearing construction for long service life and stable operation. It is ideal for cooling industrial electronics, UPS systems, CNC machines, networking equipment, and other applications requiring dependable thermal management. Product Type: DC Brushless Axial Cooling Fan Model: DF6025M12S Rated Voltage: 12 V DC Rated Current: 0.15 A Power Consumption: 1.8 W Fan Size: 60 × 60 × 25 mm Fan Size (Inch): 2.36 × 2.36 × 0.98 in Fan Speed: 3500 RPM (Approx.) Air Flow: 18 CFM (Approx.) Static Pressure: 3.5 mmH₂O (Approx.) Noise Level: 30 dB(A) (Approx.) Bearing Type: Ball Bearing Motor Type: Brushless DC Motor Frame Material: Engineering Plastic Blade Material: PBT Thermoplastic Connection Type: 2-Wire Lead Protection: Locked Rotor Protection Operating Temperature: -10°C to +70°C Storage Temperature: -20°C to +75°C Life Expectancy: Up to 50,000 Hours Mounting Type: Panel Mount
