Description

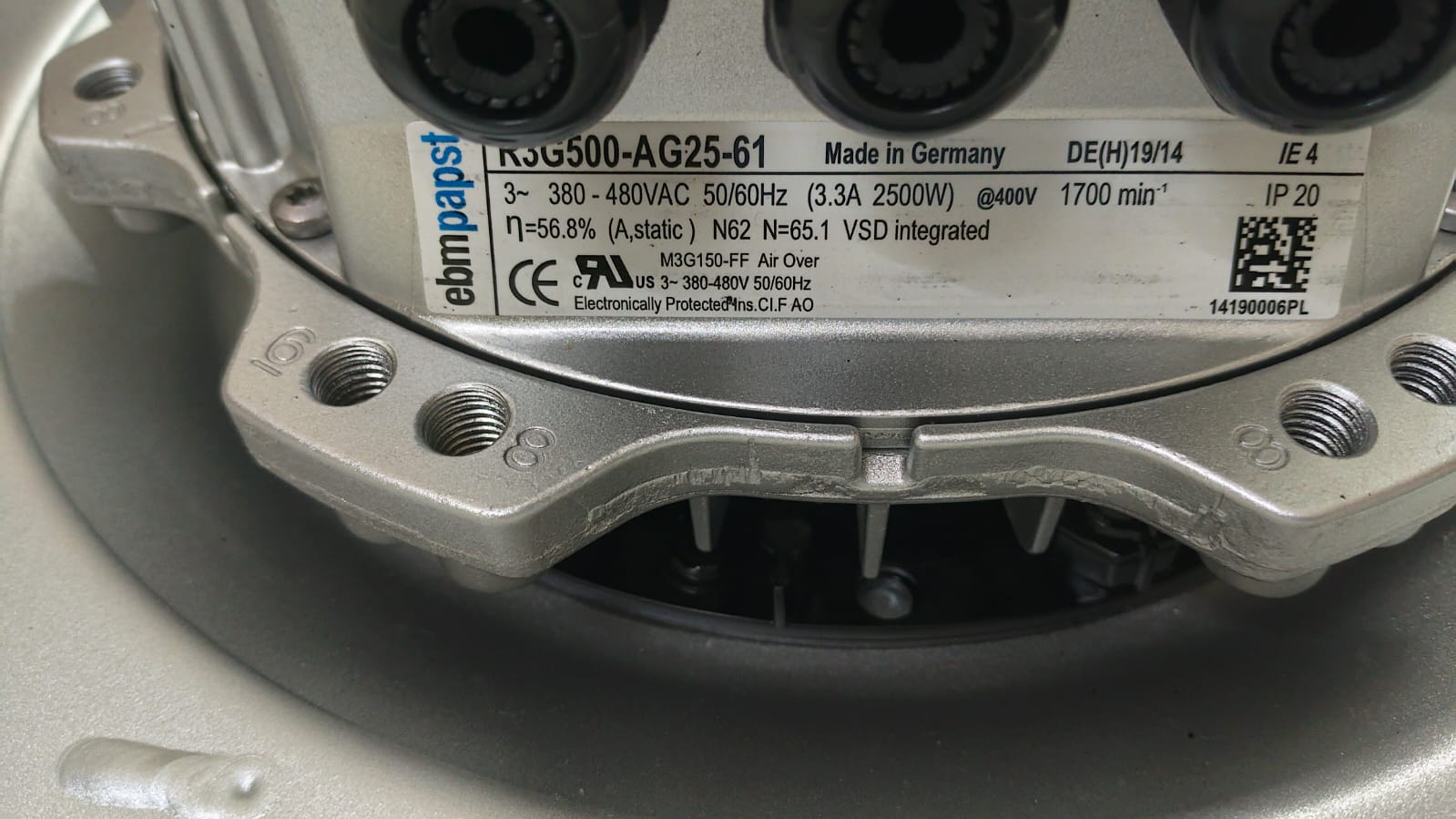

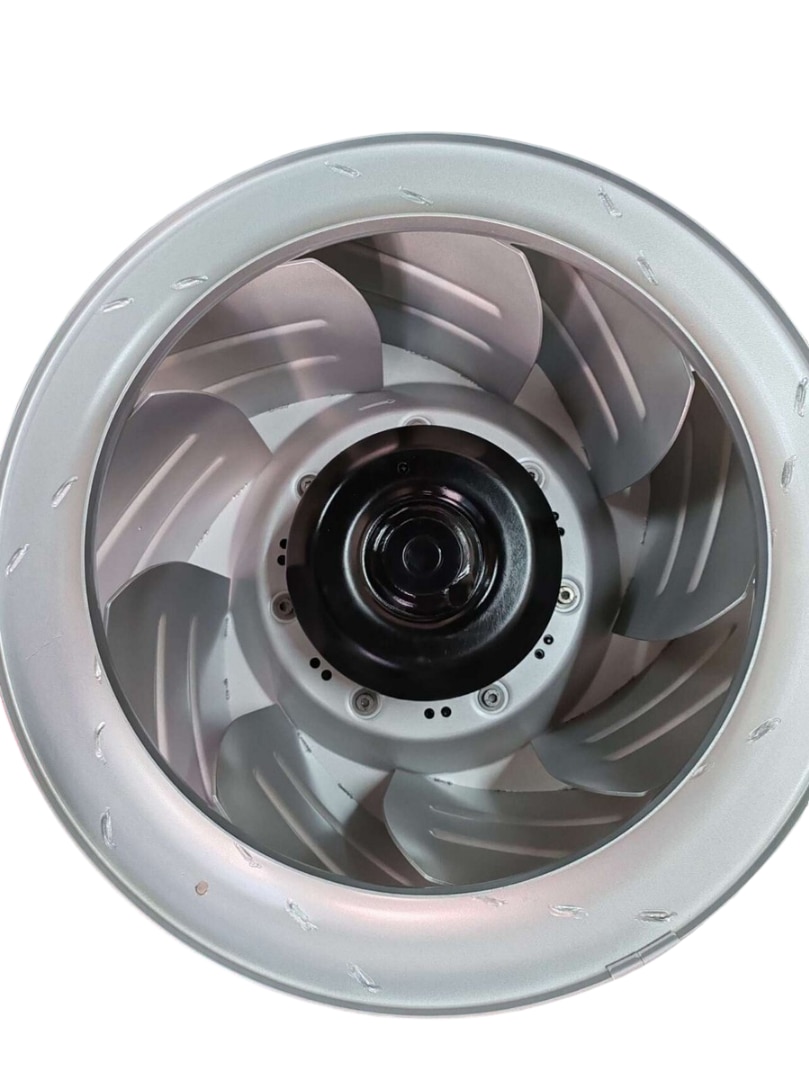

Brand : ebm-papst Model Number : R3G500-AG25-61 Product Type : EC Centrifugal Fan Fan Type : Backward Curved Centrifugal Fan Impeller Diameter : 500 mm Motor Type : Electronically Commutated (EC) Motor Phase : Three Phase Rated Voltage : 380-480 VAC Frequency : 50/60 Hz Power Rating : 2500 W Current Rating : 3.9 A Rotational Speed : 1700 RPM Ingress Protection : IP20 Air Flow : Up to 6450 CFM (Approx. 180.6 m³/min) Bearing Type : Ball Bearing Impeller Material : Aluminium Frame Material : Aluminium Operating Temperature : -25°C to +60°C Mounting Position : Flexible Installation Duty Cycle : Continuous Duty (S1) Insulation Class : Class F Weight : Approx. 22.7 kg Protection Features : Thermal Overload Protection Applications : HVAC Systems, Air Handling Units, Industrial Ventilation, Refrigeration Equipment, Process Cooling, Clean Rooms, Commercial Ventilation Features : High Efficiency EC Technology, Energy Saving Operation, Low Maintenance, High Airflow Performance, Long Service Life, Integrated Motor Protection, Compact Motorized Impeller Design
