Description

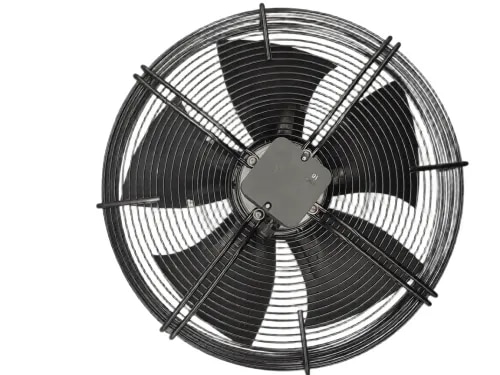

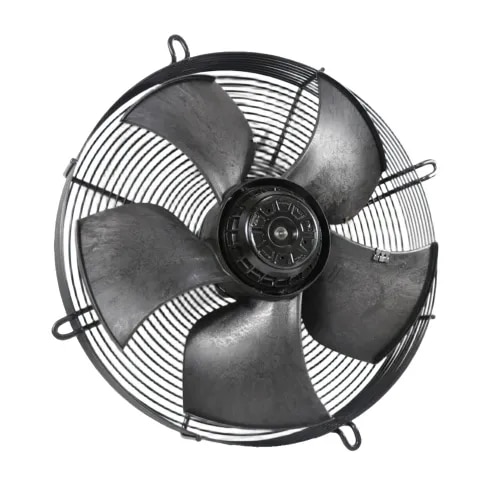

Manufacturer: ebm-papst Model: S4E-450-AP01-02 Fan Type: AC Axial Cooling Fan Supply Voltage: 230 VAC Frequency: 50/60 Hz Phase: Single Phase Motor Type: M4E074-GA Power Consumption: 245 W (50 Hz) / 355 W (60 Hz) Current Rating: 1.1 A (50 Hz) / 1.55 A (60 Hz) Speed: 1400 RPM (50 Hz) / 1600 RPM (60 Hz) Airflow: Up to 5705 m³/h Bearing Type: Ball Bearing Blade Material: Sheet Steel Number of Blades: 5 Fan Diameter: 450 mm Overall Size: Ø522 × 164 mm Protection Rating: IP44 Insulation Class: F Capacitor: 8 µF / 400 V Operating Temperature: -25°C to +60°C (50 Hz), -25°C to +40°C (60 Hz) Thermal Protection: Internal Thermal Overload Protector (TOP) Rotation Direction: Clockwise (viewed from rotor side) Weight: Approx. 7.06 kg
