Description

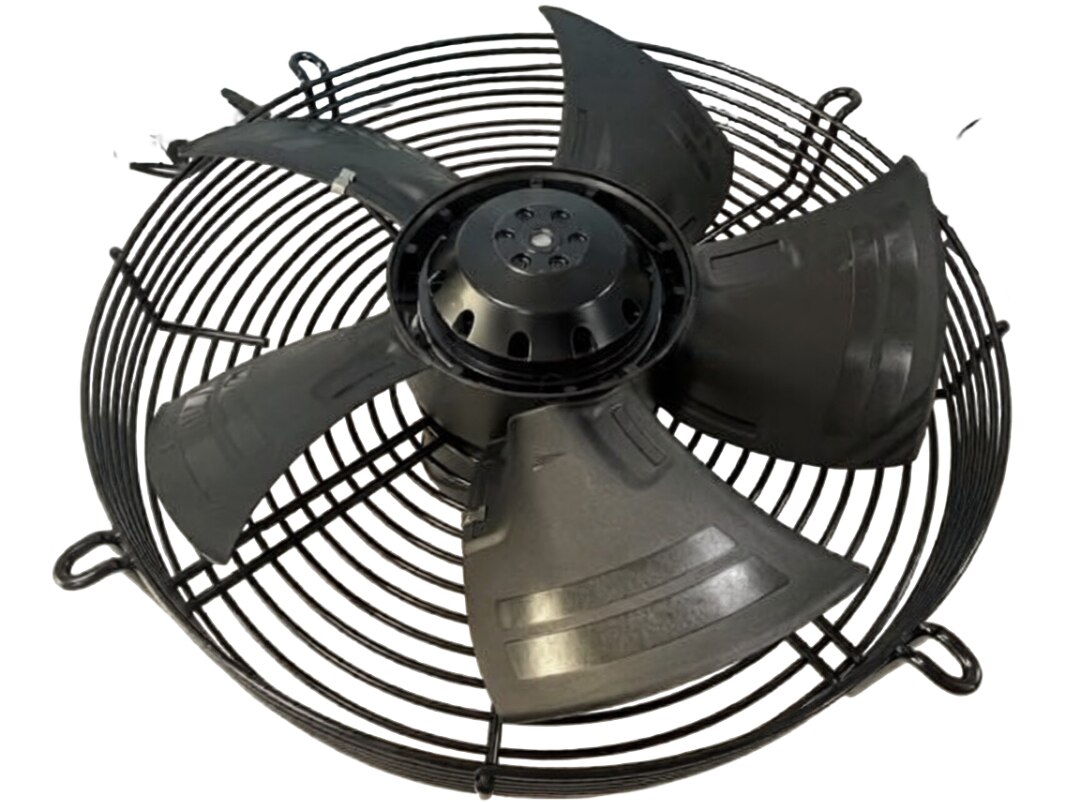

Manufacturer: ebm-papst Brand: EBM-Papst Model: S4E300-AS72-68 Fan Type: AC Axial Cooling Fan Application Type: Wall Mounted / Tube Axial Series: S Series (Sickle Blade) Fan Size: 300 mm (12") Supply Voltage: 230 VAC Frequency: 50/60 Hz Phase: Single Phase Motor Type: External Rotor AC Motor Motor Power: Approx. 0.12 HP (90 W) Power Consumption: Approx. 90 W Speed: 1440 RPM (Approx.) Air Flow: Up to 2,100 m³/h (≈1,236 CFM) Bearing Type: Maintenance-Free Ball Bearing Blade Material: Plastic/PP Composite Number of Blades: 5 Protection Rating: IP44 Insulation Class: B Operating Mode: Continuous Duty (S1) Motor Protection: Internal Thermal Overload Protector (TOP) Mounting Position: Any Position Operating Temperature: -25°C to +60°C Rotation Direction: Clockwise (Viewed from Rotor Side) Weight: Approx. 2.9 kg
