Description

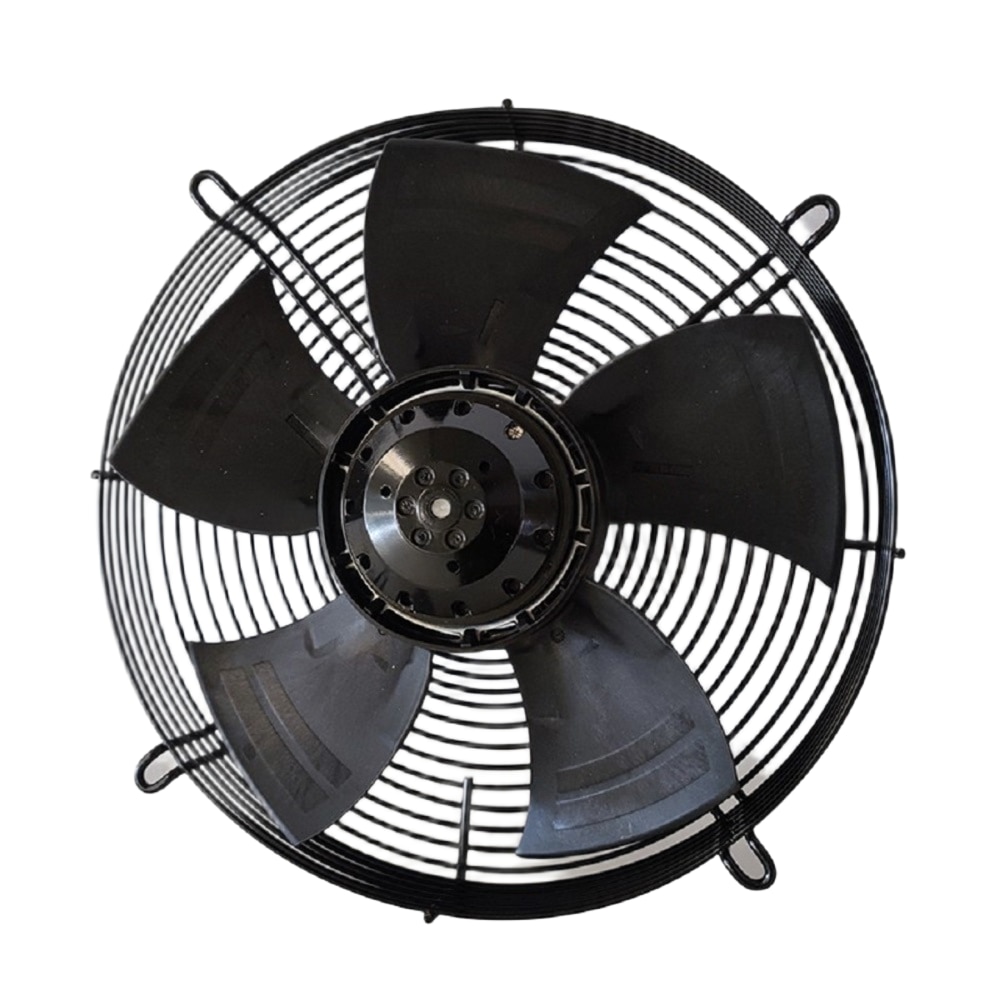

Manufacturer: ebm-papst Brand: EBM-Papst Model: S4E350-AN02-30 Fan Type: AC Axial Cooling Fan Application Type: Wall Mounted / Tube Axial Series: S Series (HyBlade®) Fan Size: 350 mm (14") Supply Voltage: 230 VAC Frequency: 50 Hz Phase: Single Phase Motor Type: External Rotor AC Motor (M4E074-DF) Motor Power: 165 W (Approx. 0.22 HP) Current Rating: 0.73 A Speed: 1340 RPM Air Flow: Up to 3305 m³/h (≈1,945 CFM) Maximum Static Pressure: 90 Pa Bearing Type: Maintenance-Free Ball Bearing Blade Material: HyBlade® Composite (Aluminium Core with Plastic/PP) Number of Blades: 5 Protection Rating: IP44 Insulation Class: F Motor Protection: Internal Thermal Overload Protector (TOP) Capacitor: 4 µF / 400 V Operating Temperature: -25°C to +65°C Mounting Position: Any Position Rotation Direction: Clockwise (Viewed from Rotor Side) Operating Mode: Continuous Duty (S1) Overall Dimensions: Ø422 × 132.3 mm Net Weight: Approx. 4.8 kg Package Dimensions: 460 × 460 × 200 mm (Approx.) Gross Weight: Approx. 5.5 kg
