Description

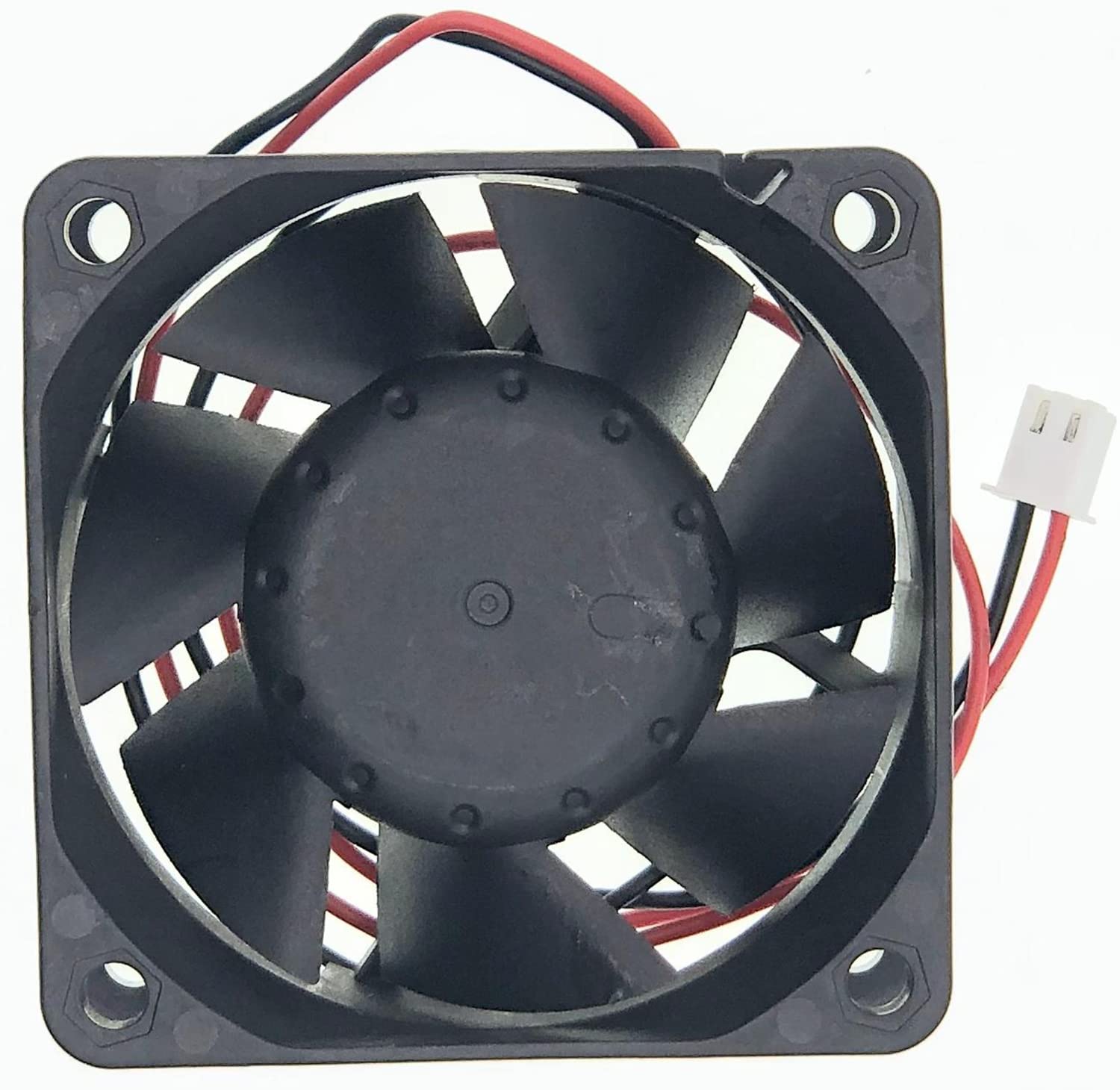

Product Type: DC Brushless Axial Cooling Fan Model: F6025X24B Brand: Mechatronics Fan Group Rated Voltage: 24 V DC Operating Voltage: 24 V DC Rated Current: 0.17 A Power Consumption: 4.08 W Fan Size: 60 × 60 × 25 mm Fan Size (Inch): 2.36 × 2.36 × 0.98 in Fan Speed: 5200 RPM Air Flow: 27 CFM (0.756 m³/min) Static Pressure: 69.7 Pa (0.280 in H₂O) Noise Level: 41 dB(A) Bearing Type: Ball Bearing Motor Type: Brushless DC Motor Frame Material: PBT (Polybutylene Terephthalate) Blade Material: PBT (Polybutylene Terephthalate) Connection Type: 2-Wire Lead Protection: Auto Restart, Locked Rotor Protection Approval: CE, cUL, TUV, UL Operating Temperature: -10°C to +70°C Mounting Type: Panel Mount Application: Power Supplies, Industrial Control Panels, Telecom Equipment, Medical Devices, UPS Systems, Inverters, Servers, Automation Equipment
