Description

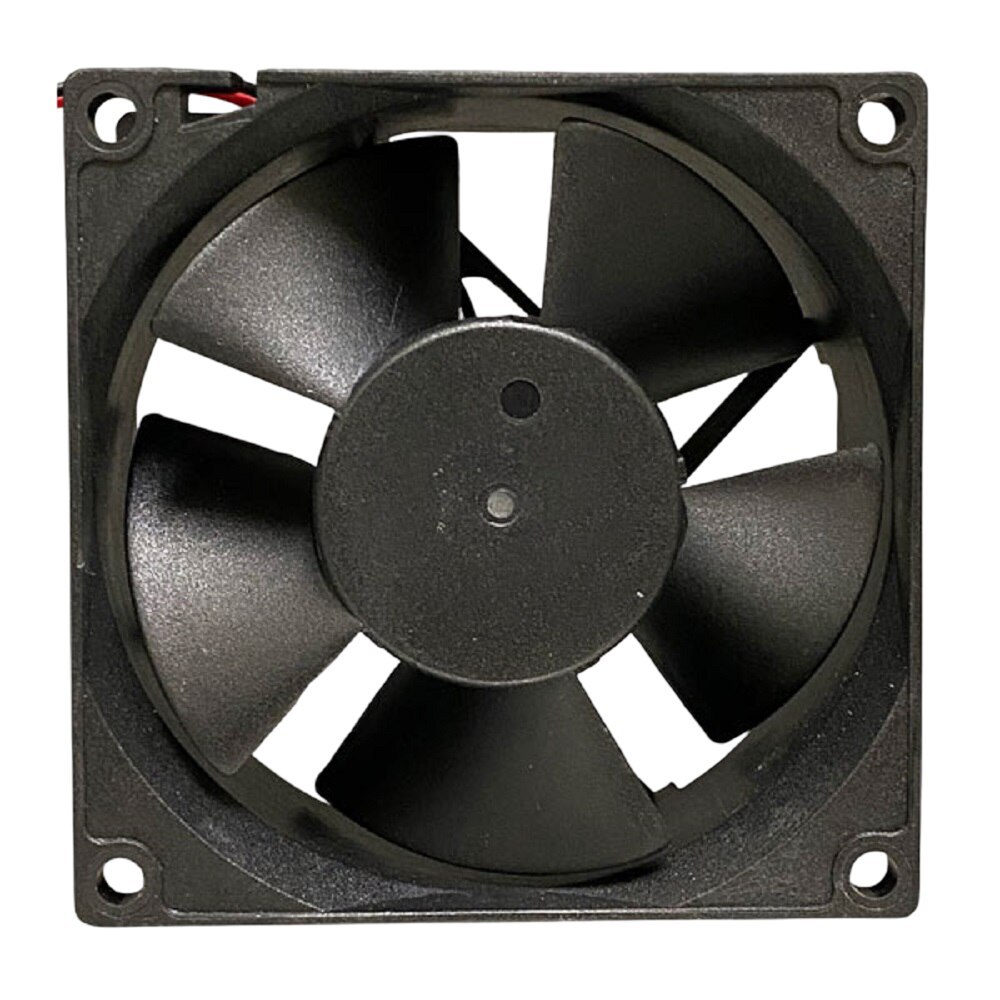

The FAD1-8032DBHW12 DC Cooling Fan features a durable thermoplastic frame with a brushless DC motor that provides efficient heat dissipation for industrial and commercial electronic equipment. Its compact design, stable performance, and long operating life make it ideal for demanding cooling applications. Product Type: DC Brushless Axial Cooling Fan Model: FAD1-8032DBHW12 Brand: Qualtek Series: FAD1-08032 Rated Voltage: 24 V DC Operating Voltage: 21.6–26.4 V DC Rated Current: 0.12 A Power Consumption: 2.88 W Fan Size: 80 × 80 × 32 mm Fan Size (Inch): 3.15 × 3.15 × 1.26 in Fan Speed: 3800 RPM Air Flow: 50 CFM (1.40 m³/min) Static Pressure: 7.42 mmH₂O (72.7 Pa) Noise Level: 42.4 dB(A) Bearing Type: Dual Ball Bearing Motor Type: Brushless DC Motor Frame Material: UL94V-0 Thermoplastic Blade Material: UL94V-0 Thermoplastic Connection Type: 2-Wire Lead Protection: IC Motor Protection Operating Temperature: -10°C to +70°C Storage Temperature: -20°C to +75°C Life Expectancy: Up to 70,000 Hours Approvals: CE, cURus, TUV, RoHS Mounting Type: Panel Mount Application: Industrial Automation, Server Cabinets, UPS Systems, Power Supplies, Telecom Equipment, CNC Machines, Electrical Control Panels, Inverters Color: Black
