Description

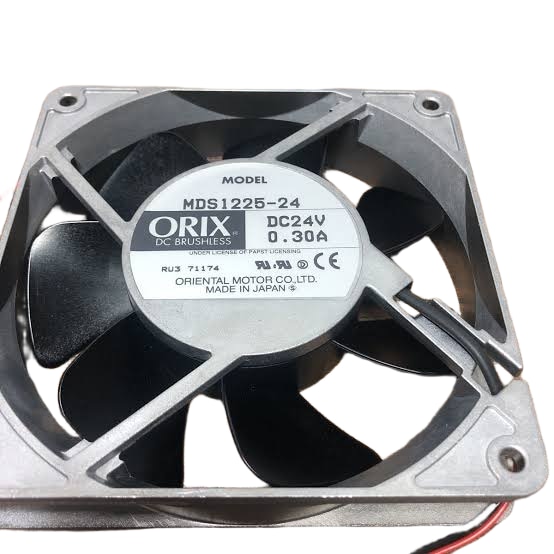

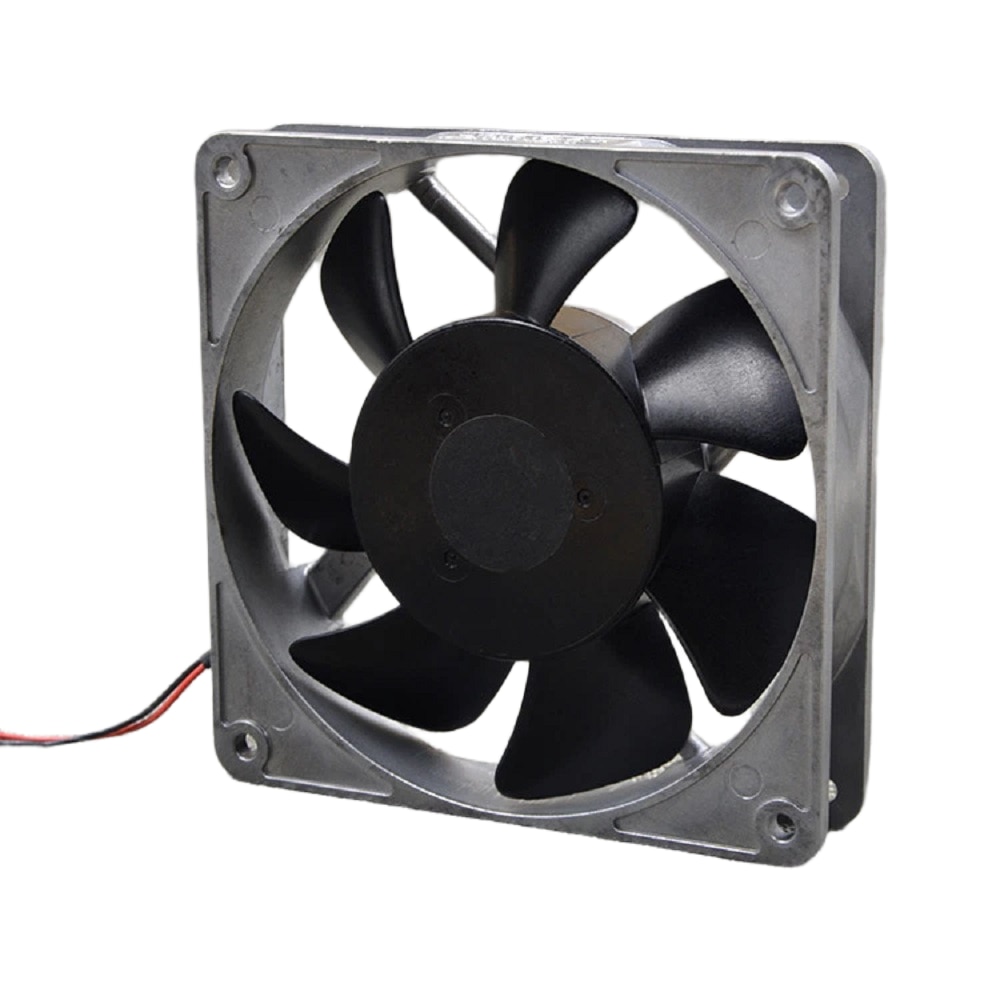

The MDS1225-24 DC Cooling Fan features a durable die-cast aluminum frame, brushless DC motor, and ball bearing construction to provide efficient heat dissipation in industrial and commercial electronic equipment. Its high airflow and dependable performance make it suitable for demanding cooling applications. Product Type: DC Brushless Axial Cooling Fan Model: MDS1225-24 Brand: Oriental Motor (ORIX®) Series: MDS / MD Series Rated Voltage: 24 V DC Operating Voltage: 24 V DC ±15% Rated Current: 0.30 A Power Consumption: 7.2 W Fan Size: 120 × 120 × 25 mm Fan Size (Inch): 4.72 × 4.72 × 0.98 in Fan Speed: 3000 RPM Air Flow: 95.3 CFM (2.7 m³/min) Static Pressure: 70 Pa (0.281 inH₂O) Noise Level: 46 dB(A) Bearing Type: Ball Bearing Motor Type: Brushless DC Motor Frame Material: Die-Cast Aluminum Blade Material: Polycarbonate (Flame Retardant) Connection Type: Lead Wire Protection: Built-in Burnout Protection Circuit Insulation Resistance: 10 MΩ Minimum @ 250 VDC Dielectric Strength: 500 VAC for 1 Minute Operating Temperature: -10°C to +60°C Operating Humidity: Up to 85% RH (Non-Condensing) Safety Standards: UL, CE, DEMKO, RoHS
