Description

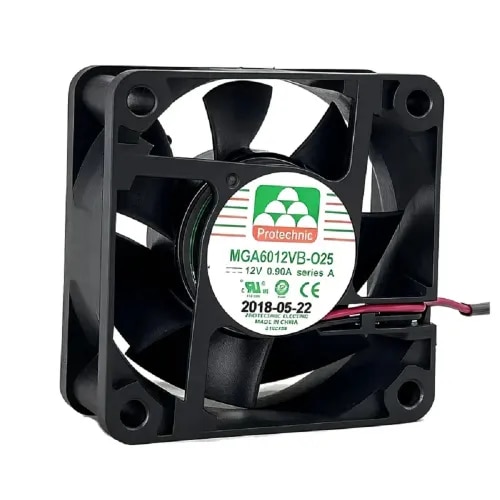

The MGA6012VB-025 DC Cooling Fan features a compact 60 × 60 × 25 mm design with a brushless DC motor and 2-wire connection. It offers excellent heat dissipation, low maintenance, automatic restart protection, and dependable performance for industrial and commercial electronic equipment. Product Type: DC Brushless Axial Cooling Fan Model: MGA6012VB-025 Brand: Protechnic Electric (MAGIC) Rated Voltage: 12 V DC Rated Current: 0.90 A Power Consumption: 10.8 W Fan Size: 60 × 60 × 25 mm Fan Size (Inch): 2.36 × 2.36 × 0.98 in Fan Speed: 9000 RPM Air Flow: 46.8 CFM (1.326 m³/min) Static Pressure: 22.8 mmH₂O (223.67 Pa) Noise Level: 53.4 dB(A) Bearing Type: Ball Bearing Motor Type: Brushless DC Motor Frame Material: Engineering Plastic Blade Material: Engineering Plastic Connection Type: 2-Wire Lead Protection: Automatic Restart, Locked Rotor Protection Operating Temperature: -10°C to +70°C Storage Temperature: -40°C to +70°C
