Description

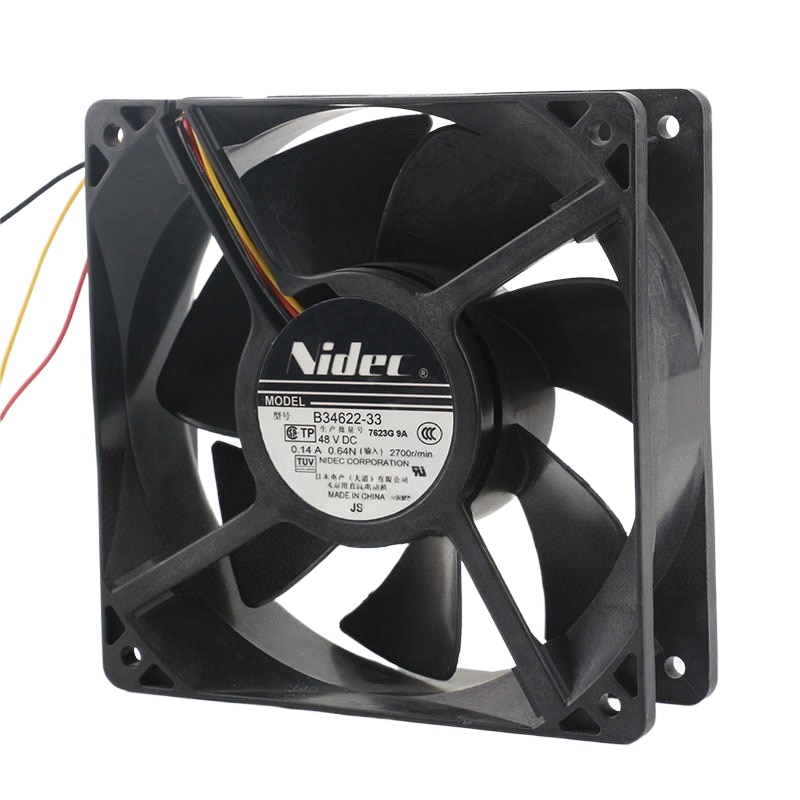

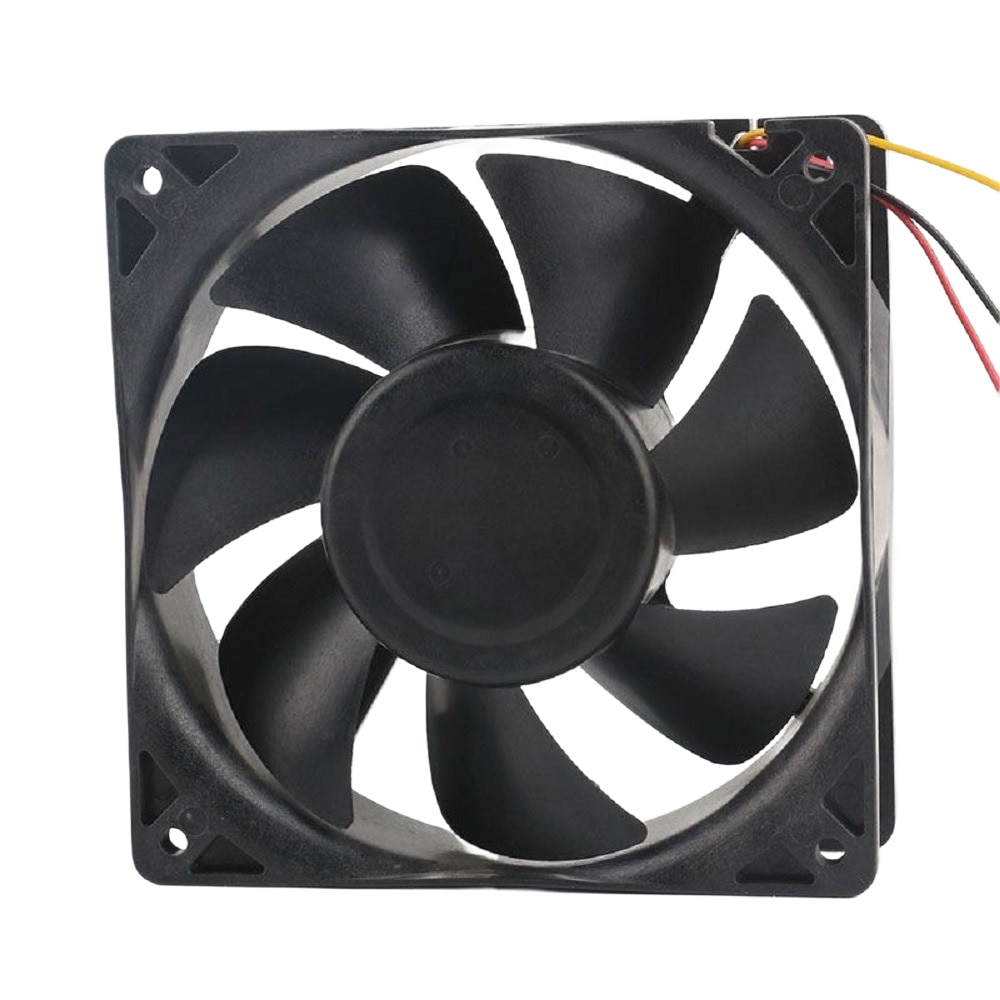

Brand : Nidec Model : B34622-33 Fan Type : DC Axial Cooling Fan Rated Voltage : 48 V DC Operating Voltage Range : 36 – 56 V DC Rated Current : 0.13 A Power Consumption : 6.24 W Fan Size : 120 × 120 × 38 mm Bearing Type : Dual Ball Bearing Rated Speed : 2900 RPM Maximum Airflow : 108 CFM Maximum Static Pressure : 82.4 Pa (8.4 mmH₂O) Noise Level : 44.5 dBA Housing Material : PBT Plastic (UL94V-0) Impeller Material : PBT Plastic (UL94V-0) Connection Type : Lead Wires / 4-Wire Operating Temperature : -10°C to +70°C Storage Temperature : -40°C to +70°C Life Expectancy : 70,000 Hours @ 40°C Protection Rating : IP20 Certifications : UL, cUL, TUV, CE Weight : 270 g Application : Telecom Equipment, Server Racks, Industrial Control Panels, Network Switches, Power Systems
