Description

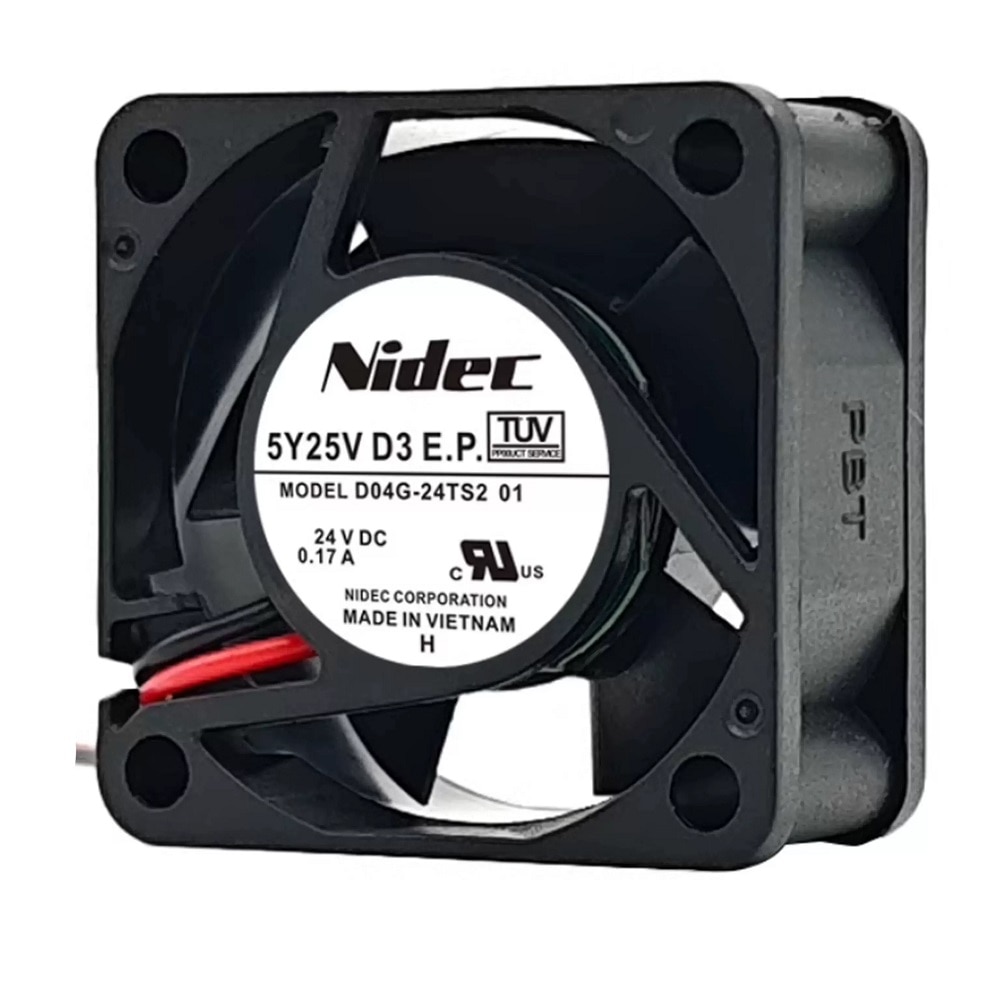

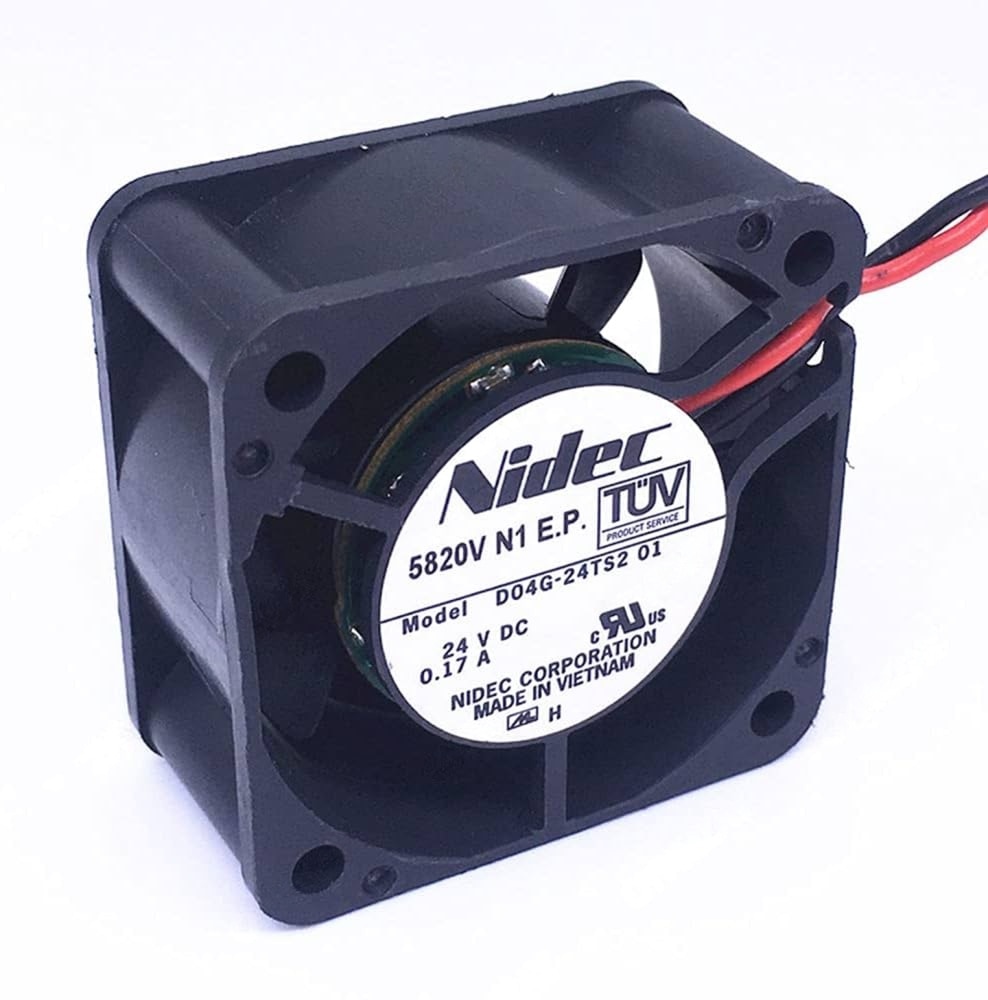

Brand: Nidec Model Number: D04G-24TS2 Product Type: DC Axial Cooling Fan Fan Type: Axial Flow Fan Rated Voltage: 24 V DC Current: 0.17 A Power Consumption: 4.08 W Air Flow: 10 CFM Rotational Speed: 7000 RPM Bearing Type: Ball Bearing Noise Level: 35-40 dBA Number of Wires: 2 Wires Blade Material: Plastic Motor Type: Brushless (BLDC) Fan Size: 40 x 40 x 20 mm Frame Material: Plastic Insulation Resistance: 100 MΩ Minimum Dielectric Strength: 500 VAC for 1 Minute Operating Temperature: -10°C to +70°C Mounting Type: Panel Mount Life Expectancy: Up to 80,000 Hours
