Description

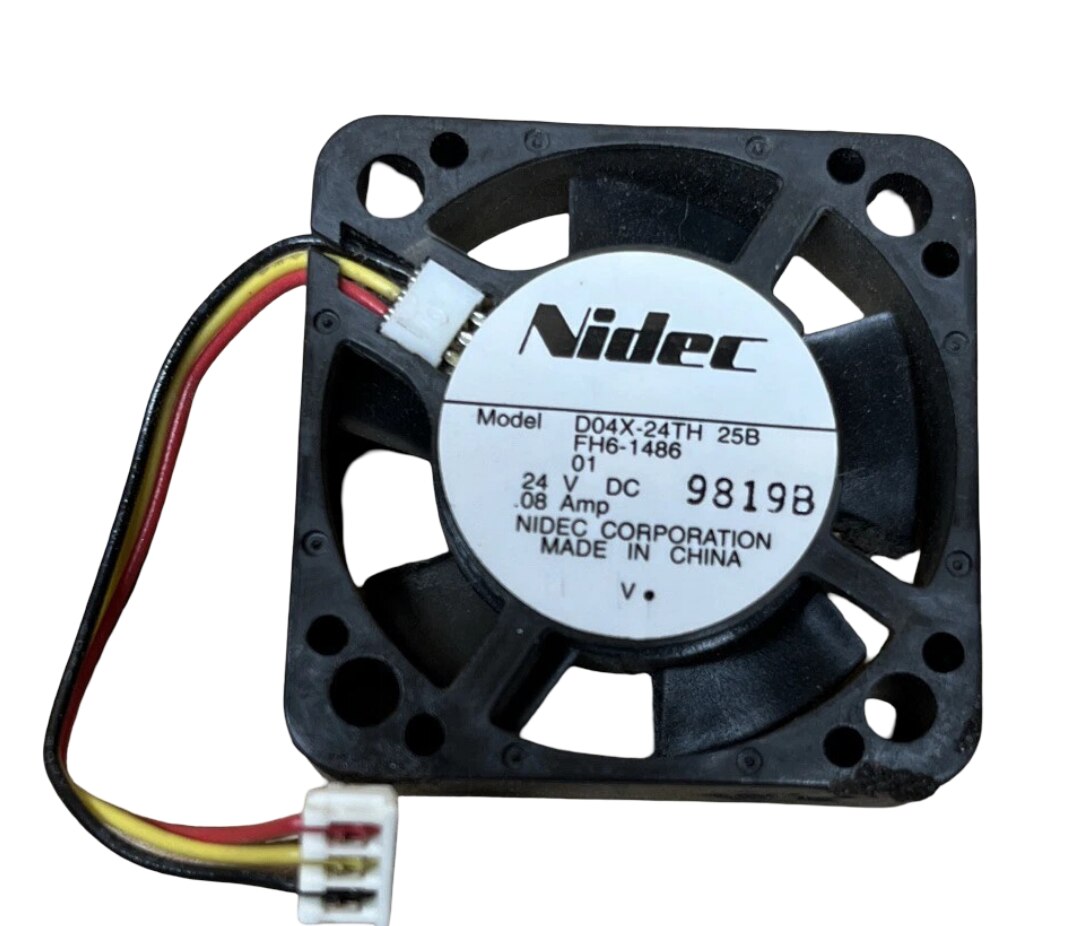

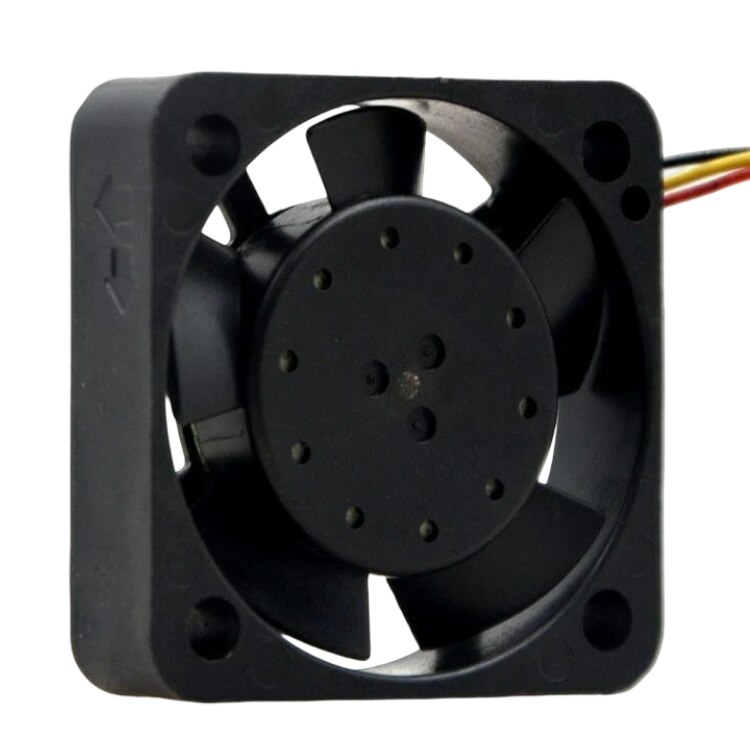

Brand: Nidec Model Number: D04X-24TH Product Type: DC Cooling Fan Fan Type: Axial Flow Fan Rated Voltage: 24 V DC Current: 0.10 A Power Consumption: 2.4 W Air Flow: 10 CFM Rotational Speed: 7000 RPM Bearing Type: Ball Bearing Noise Level: 30-35 dBA Number of Wires: 2 Wires Blade Material: Plastic Motor Type: Brushless (BLDC) Frame Material: Plastic Fan Size: 40 x 40 x 20 mm Insulation Resistance: 100 MΩ Minimum Dielectric Strength: 500 VAC for 1 Minute Operating Temperature: -10°C to +70°C Mounting Type: Panel Mount Life Expectancy: Up to 60,000 Hours Application: Industrial Equipment, Power Supplies, Control Panels, Telecom Equipment, Medical Devices, Automation Systems Features: Compact Design, High Reliability, Long Service Life, Low Power Consumption, Efficient Heat Dissipation, Continuous Duty Operation, Maintenance-Free Performance, Industrial Grade Construction
