Description

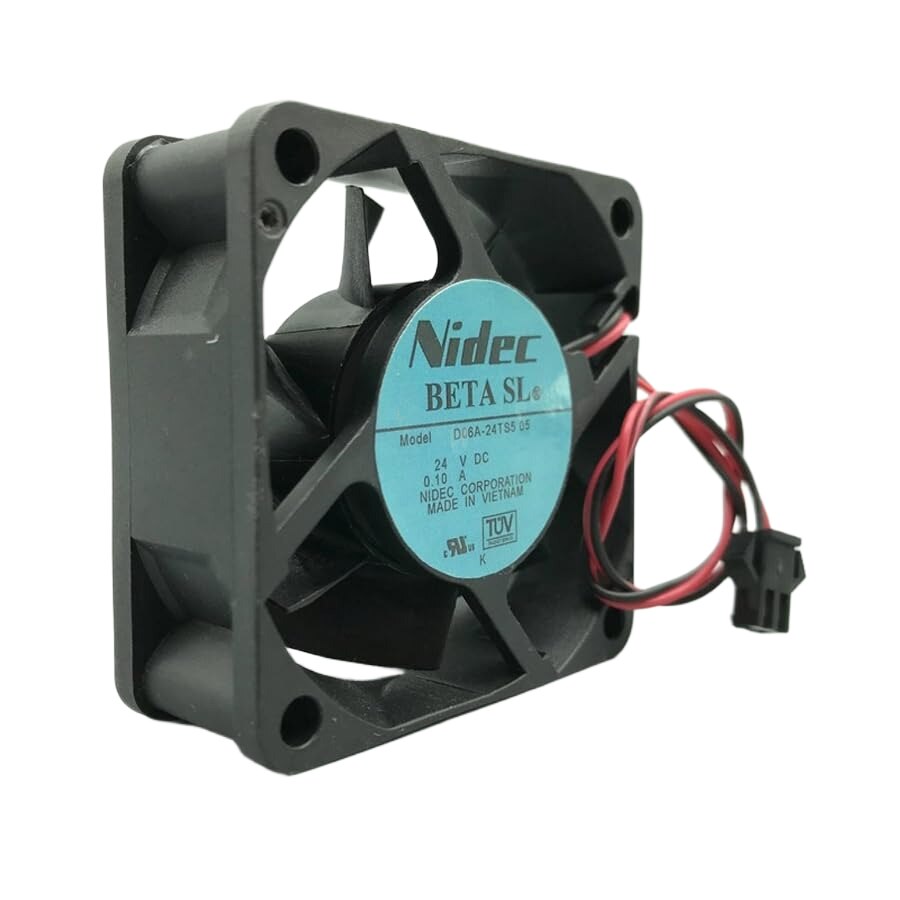

Brand: Nidec Model Number: D06A-24TS5 05 Product Type: DC Cooling Fan Fan Type: Axial Flow Fan Rated Voltage: 24 V DC Current: 0.15 A Power Consumption: 3.6 W Air Flow: 25 CFM Rotational Speed: 5000 RPM Bearing Type: Ball Bearing Noise Level: 35-40 dBA Number of Wires: 2 Wires Blade Material: Plastic Motor Type: Brushless (BLDC) Frame Material: Plastic Fan Size: 60 x 60 x 25 mm Insulation Resistance: 100 MΩ Minimum Dielectric Strength: 500 VAC for 1 Minute Operating Temperature: -10°C to +70°C Mounting Type: Panel Mount Life Expectancy: Up to 70,000 Hours Application: Industrial Equipment, Power Supplies, Telecom Systems, Control Panels, Medical Equipment, Automation Machinery Features: High Reliability, Efficient Heat Dissipation, Long Service Life, Low Power Consumption, Continuous Duty Operation, Maintenance-Free Performance, Compact Design, Industrial Grade Construction
