Description

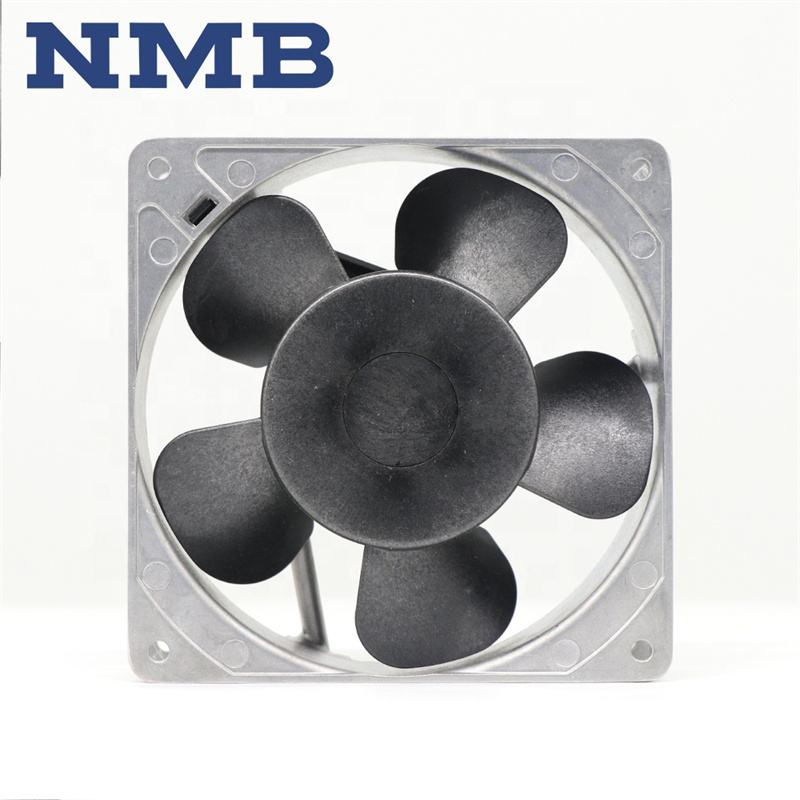

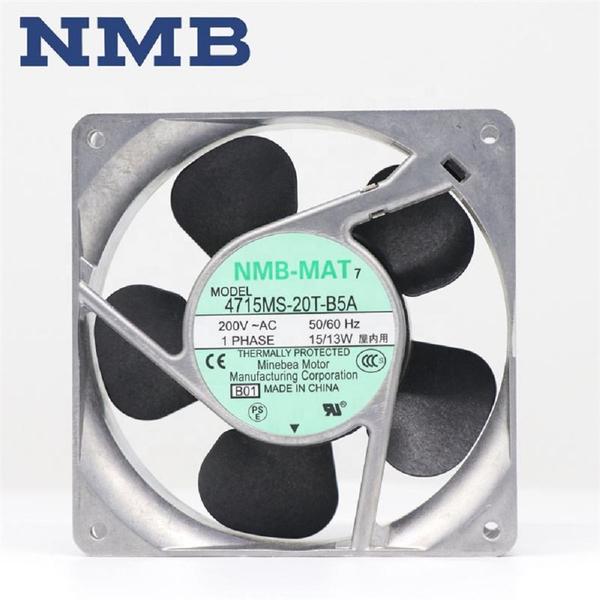

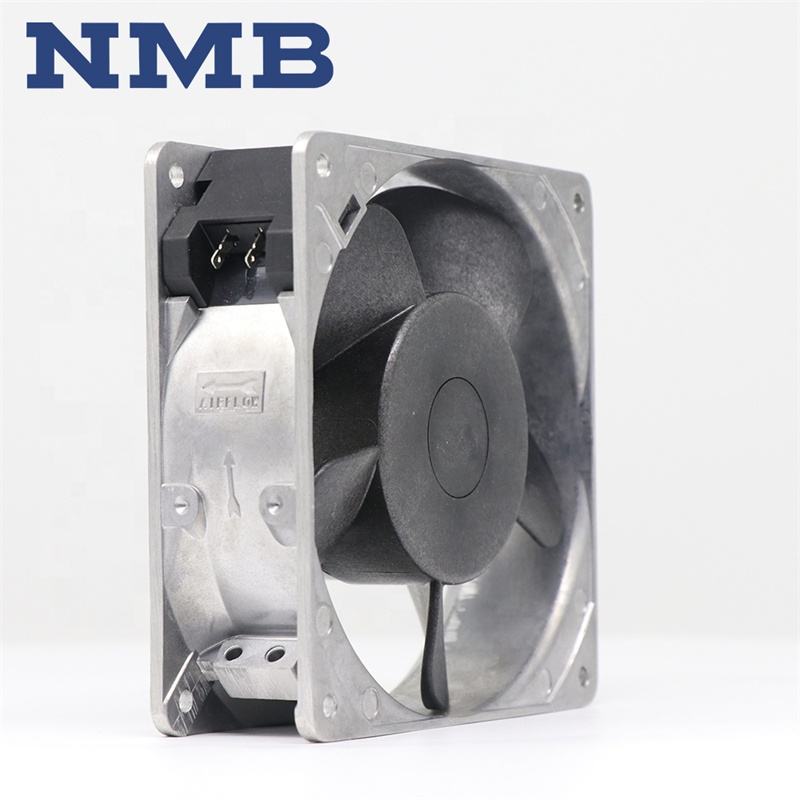

Fan Type: AC Axial Fan Size: 120 × 120 × 38 mm Rated Voltage: 200V AC Frequency: 50/60 Hz Current Type: AC Power Consumption: 13 – 15 W Speed: ~2800 – 2900 RPM (typical for this series) Air Flow: ~102 CFM (≈ 2.9 m³/min) Noise Level: ~40 – 42 dB Static Pressure: ~0.30 in H₂O Bearing Type: Ball Bearing Frame Material: Aluminum Mounting Type: Flange Mount Connection: Terminal / Wire Leads Weight: ~500 – 550 g
