Description

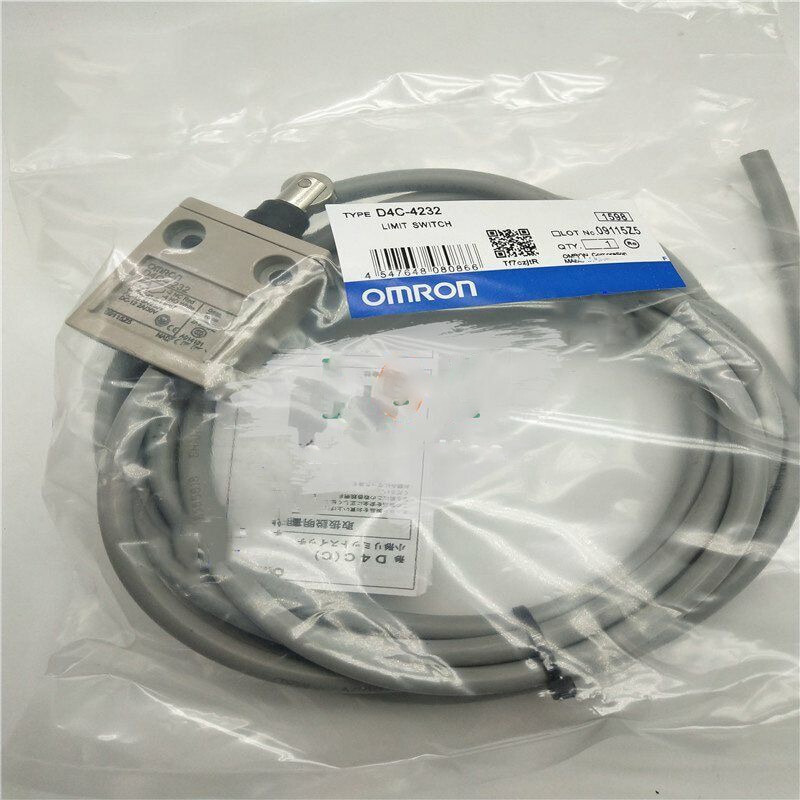

Brand: Omron Model: D4C-4232 Product Type: Enclosed Limit Switch Actuator Type: Sealed Roller Plunger Contact Configuration: SPDT (1 NO + 1 NC) Switch Action: Snap Action Rated Voltage: 125 VAC / 30 VDC (Micro Load) Rated Current: 0.1 A Rated Frequency: 50/60 Hz Protection Rating: IP67 Housing Material: Die-Cast Metal Cable Type: Oil-Resistant VCTF Cable, 4 Core, 3 m Terminal Type: Pre-Wired Cable Operating Speed: 0.1 mm/s to 0.5 m/s Mechanical Life: 10 Million Operations Electrical Life: 200,000 Operations Operating Temperature: -10°C to +70°C Operating Humidity: 35% to 95% RH Contact Resistance: 300 mΩ Maximum Insulation Resistance: 100 MΩ Minimum Application: Industrial Automation, Packaging Machines, Conveyors, Material Handling Equipment, Machine Tools
