Description

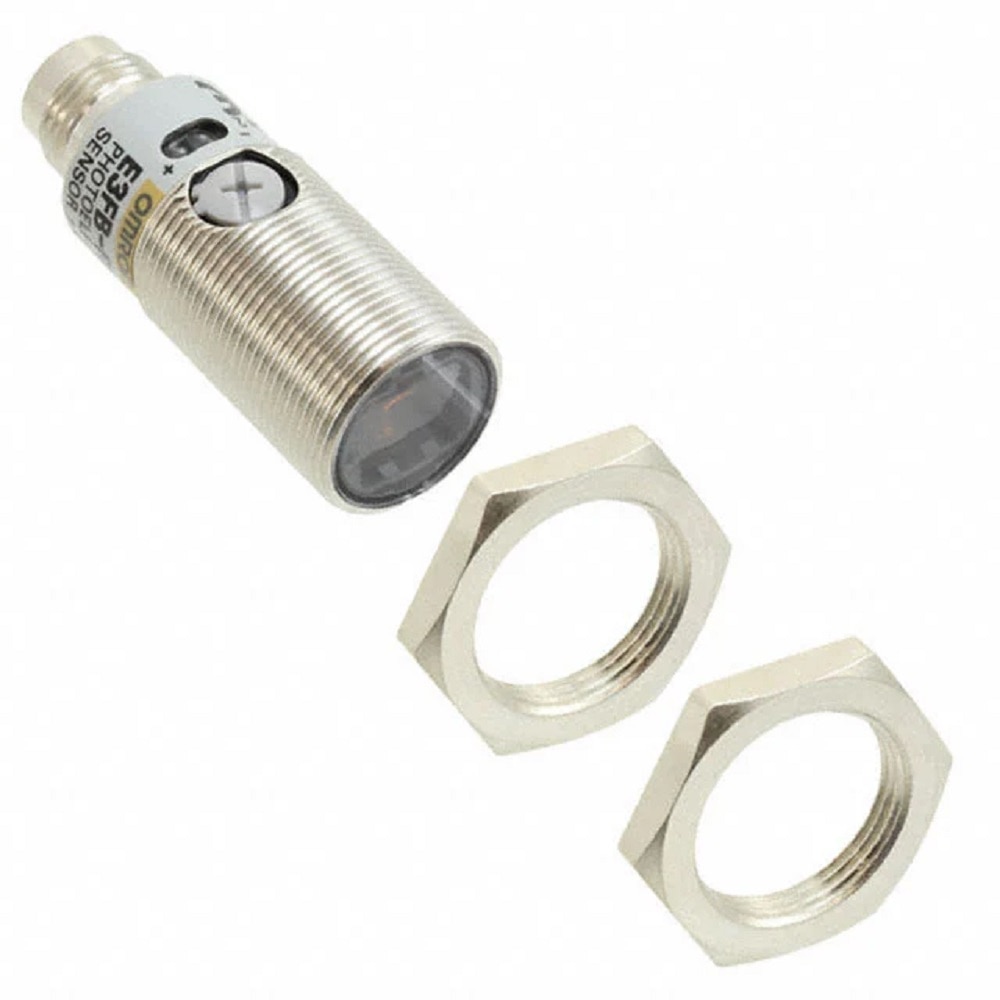

Brand: Omron Model: E3FB-DN22 Product Type: Photoelectric Sensor Sensor Type: Diffuse Reflective Shape: Cylindrical Axial Thread Size: M18 Sensing Distance: 300 mm Output Type: NPN Open Collector Operation Mode: Light-ON / Dark-ON (Selectable) Light Source: Red LED (624 nm) Power Supply Voltage: 10 to 30 VDC Current Consumption: 25 mA Max. Load Current: 100 mA Max. Response Time: 0.5 ms Connection Type: M12 4-Pin Connector Housing Material: Nickel-Plated Brass Protection Rating: IP67 / IP69K Product Length: 48 mm Operating Temperature: -25°C to +55°C
