Description

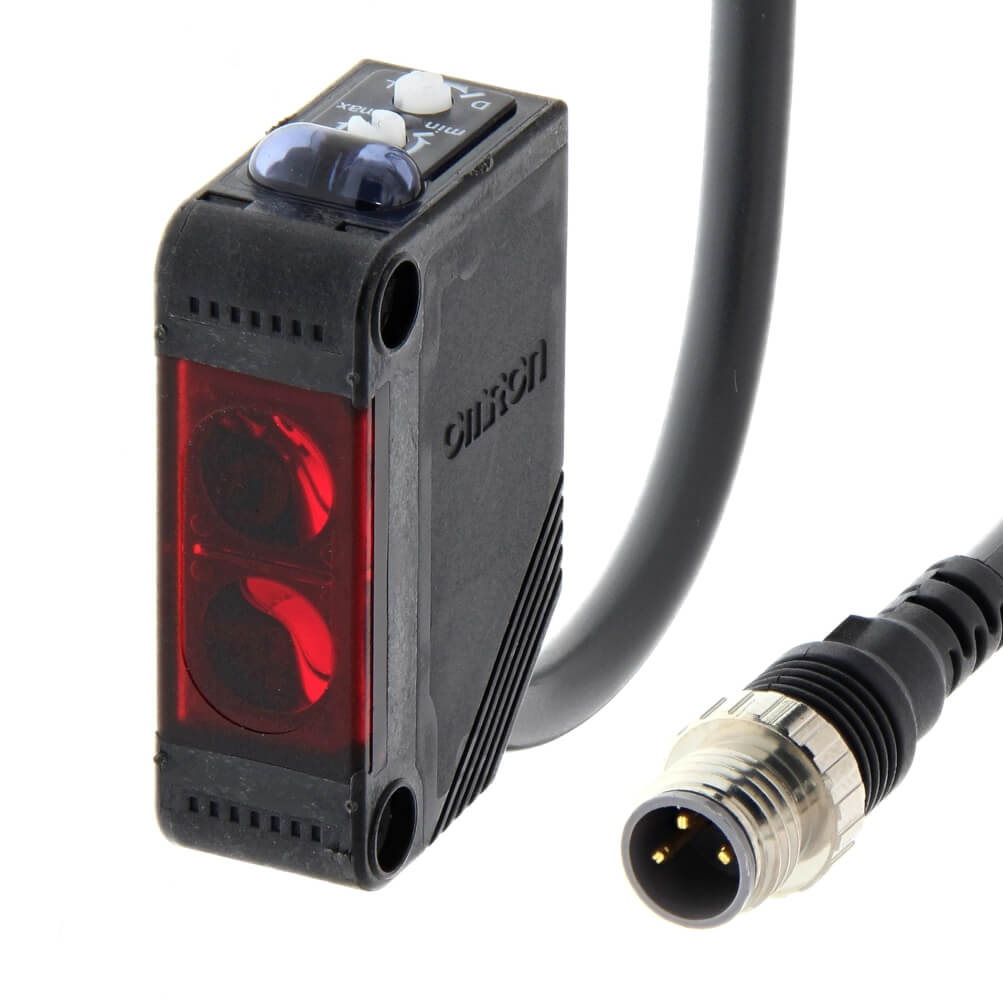

Sensor Type: Photoelectric Sensor Sensing Method: Retro-reflective with M.S.R. Function Sensing Distance: 100 mm to 4 m Output Type: PNP Open Collector Operation Mode: Light-ON / Dark-ON Selectable Supply Voltage: 12 to 24 VDC ±10% Current Consumption: 30 mA Max Load Current: 100 mA Max Response Time: 1 ms Max Light Source: Red LED (660 nm) Protection Rating: IP67 Connection Type: Pre-wired Cable Cable Length: 0.5 m / 2 m / 5 m Housing Material: PBT Plastic Lens Material: Methacrylate Resin Mounting Style: Bracket / Screw Mount Operating Temperature: -25°C to 55°C Humidity Range: 35% to 85% RH Shock Resistance: 500 m/s² Vibration Resistance: 10 to 55 Hz Indicator: Orange Operation LED, Green Stability LED Shape: Square Type Standard Sensing Object: Opaque Object 75 mm Dia. Min.
