Description

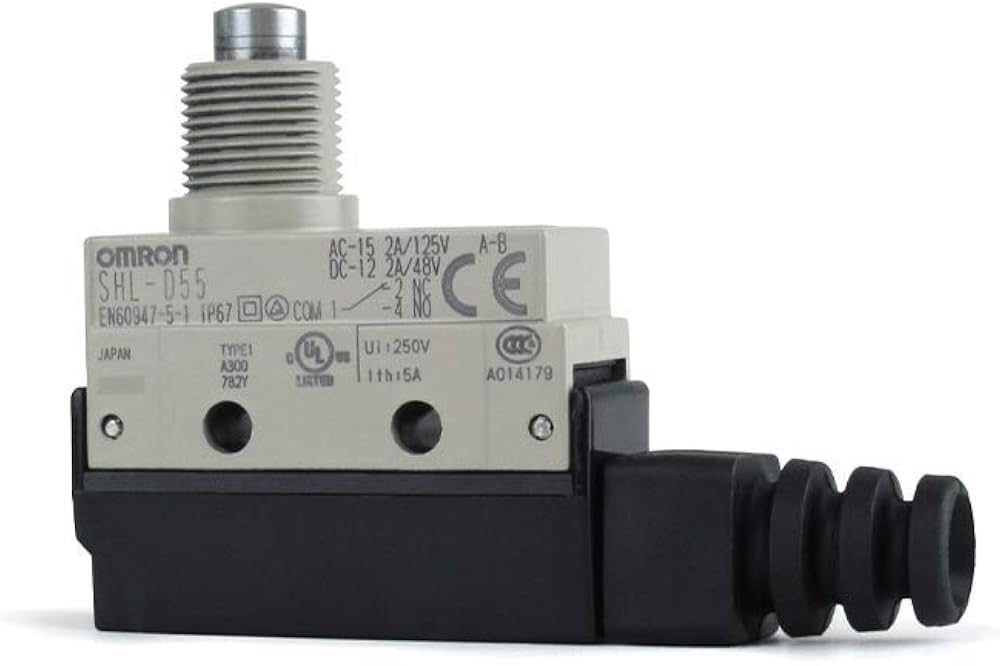

Brand: Omron Model: SHL-D55 Product Type: Enclosed Limit Switch Actuator Type: Stainless Steel Plunger Contact Configuration: SPDT (1 NO + 1 NC) Switch Action: Snap Action Rated Voltage: Up to 250 VAC / 250 VDC Rated Current: 10 A Rated Frequency: 50/60 Hz Protection Rating: IP67 Housing Material: Zinc Die-Cast Terminal Type: Screw Terminal Mounting Type: Panel Mount Mechanical Life: 10 Million Operations Electrical Life: 500,000 Operations Operating Temperature: -10°C to +80°C Operating Speed: 0.1 mm/s to 0.5 m/s Insulation Resistance: 100 MΩ Minimum Contact Resistance: 15 mΩ Maximum
