Description

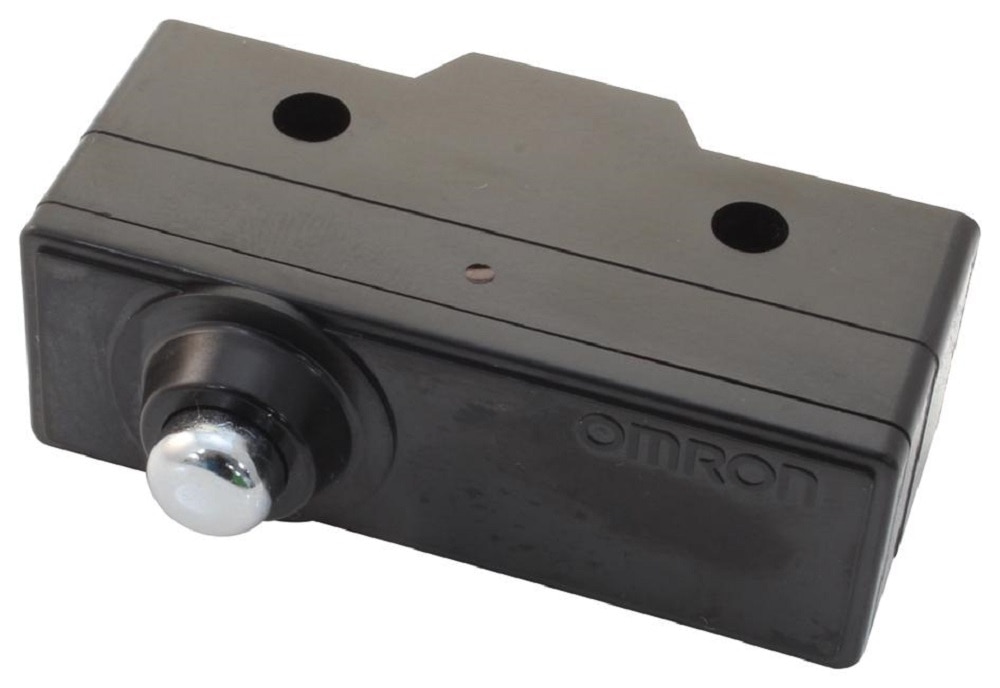

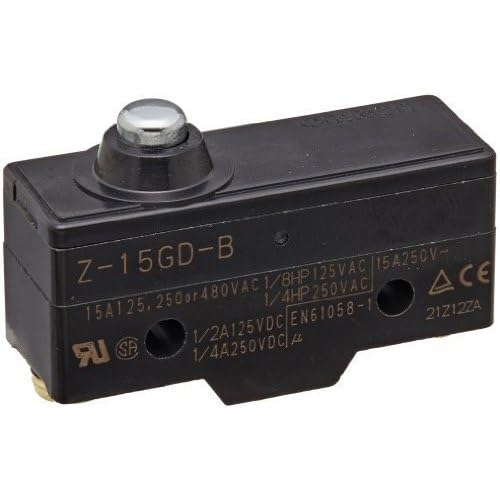

Brand: OMRON Series: Z Model: Z-15GD-B Product Type: General Purpose Basic Switch Switch Type: Snap Action Microswitch Actuator Type: Short Spring Plunger Actuator Material: Stainless Steel Circuit Type: SPDT Contact Configuration: 1NO + 1NC Current Rating: 15A AC DC Current Rating: 6A DC Operating Voltage: 250V AC DC Voltage Rating: 30V DC Contact Type: Silver Terminal Type: Screw Terminal Terminal Size: M4 Screw Operating Force: 2.45–3.43 N Release Force: 1.12 N Pretravel: 0.4 mm Overtravel: 1.6 mm Differential Travel: 0.05 mm Operating Position: 21.5 ± 0.5 mm IP Rating: IP00
