Description

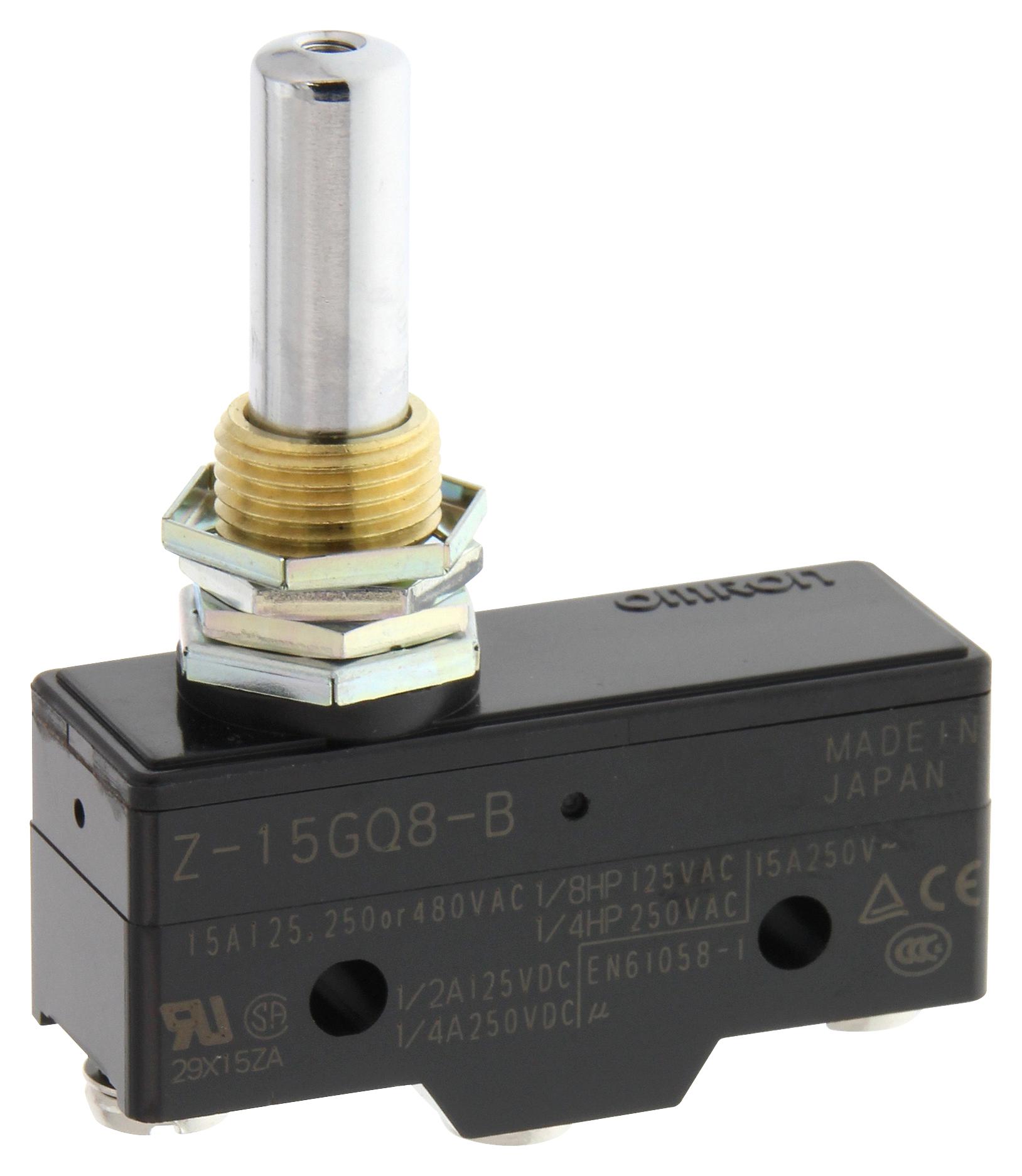

Brand: OMRON Series: Z Model: Z-15GQ8-B Product Type: General-Purpose Basic Switch Switch Type: Snap Action Microswitch Actuator Type: Panel Mount Plunger Plunger Material: Stainless Steel Plunger Diameter: 8.35 mm Contact Configuration: SPDT / 1NO+1NC Contact Form: 1c Rated Current: 15 A Rated Voltage: 250V AC Maximum AC Voltage: 500V AC Maximum DC Voltage: 250V DC Terminal Type: Screw Terminal Terminal Size: M4 Contact Material: Silver Rivet Contact Gap: 0.5 mm Mounting Type: Panel Mount IP Rating: IP00
