Description

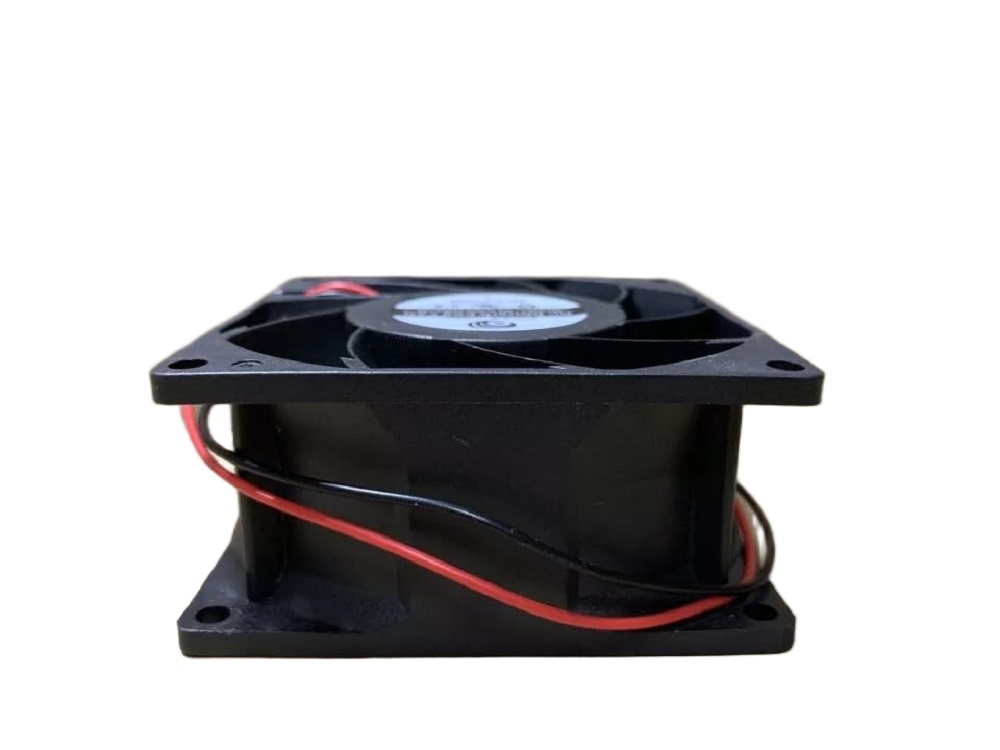

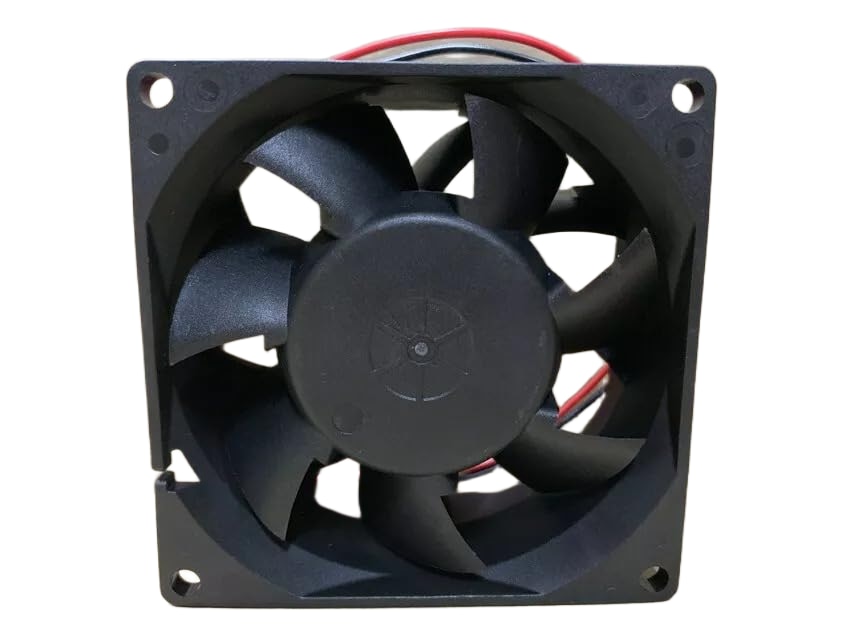

Product Type: DC Brushless Axial Cooling Fan Model: PLA08038B24M Brand: Power Logic Rated Voltage: 24 V DC Rated Current: 0.80 A Power Consumption: 19.2 W Fan Size: 80 × 80 × 38 mm Fan Size (Inch): 3.15 × 3.15 × 1.50 in Fan Speed: 4900 RPM (Approx.) Air Flow: 85 CFM (Approx.) Static Pressure: 11.5 mmH₂O (Approx.) Noise Level: 48 dB(A) (Approx.) Bearing Type: Ball Bearing Motor Type: Brushless DC Motor Frame Material: PBT Thermoplastic Blade Material: PBT Thermoplastic Connection Type: 2-Wire Lead Rotation: Counter Clockwise (Rotor Side) Protection: Locked Rotor Protection Operating Temperature: -10°C to +70°C Storage Temperature: -20°C to +75°C Life Expectancy: Up to 60,000 Hours Mounting Type: Panel Mount
