Description

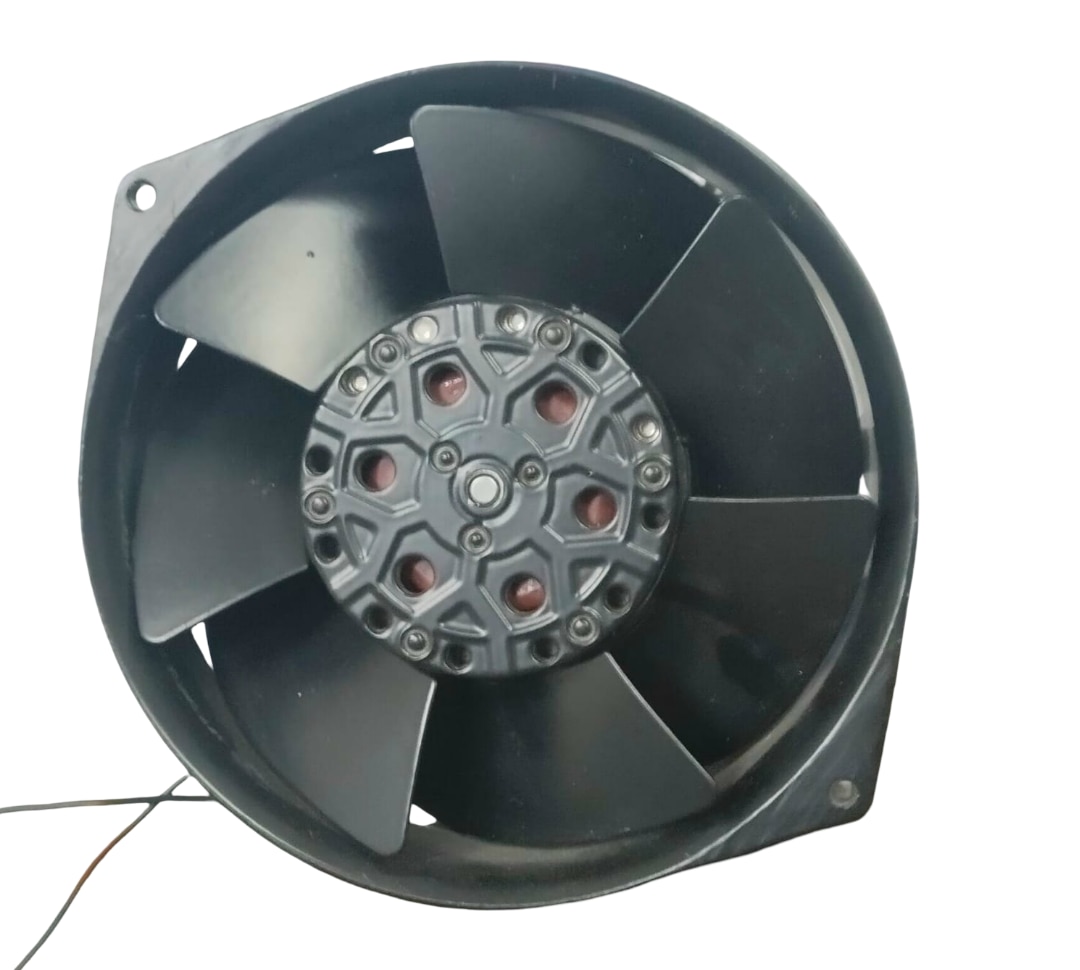

Brand: Rexnord Model No.: REC 15055 B2 HW-MB Product Type: AC Axial Cooling Fan Fan Type: Industrial AC Axial Fan Size: 6 Inch Dimension (L×W×H): 172 × 150 × 55 mm Dimension (Inches): 6-3/4 × 5-7/8 × 2-3/16 Inch Housing Material: Aluminium Die-Cast Impeller Material: Metal Blade Type: Metal Blade Bearing Type: Ball Bearing Color: Black Rated Voltage: 220–240V AC Operating Voltage: 185–250V AC Frequency: 50/60 Hz Phase: Single Phase Rated Current: 0.28 A Input Power: 38 W Speed: 2800 RPM Air Flow: 200 CFM Static Pressure: 14 mm H₂O Noise Level: Approx. 50 dB(A) Motor Design: Shaded Pole / External Rotor Motor Protection: Impedance Protected Insulation Class: Class F IP Rating: IP20 Connection: Lead Wire Dielectric Strength: 1500 VAC for 1 minute Insulation Resistance: Above 100 MΩ at 500 VDC Operating Temperature: -20°C to +70°C
