Description

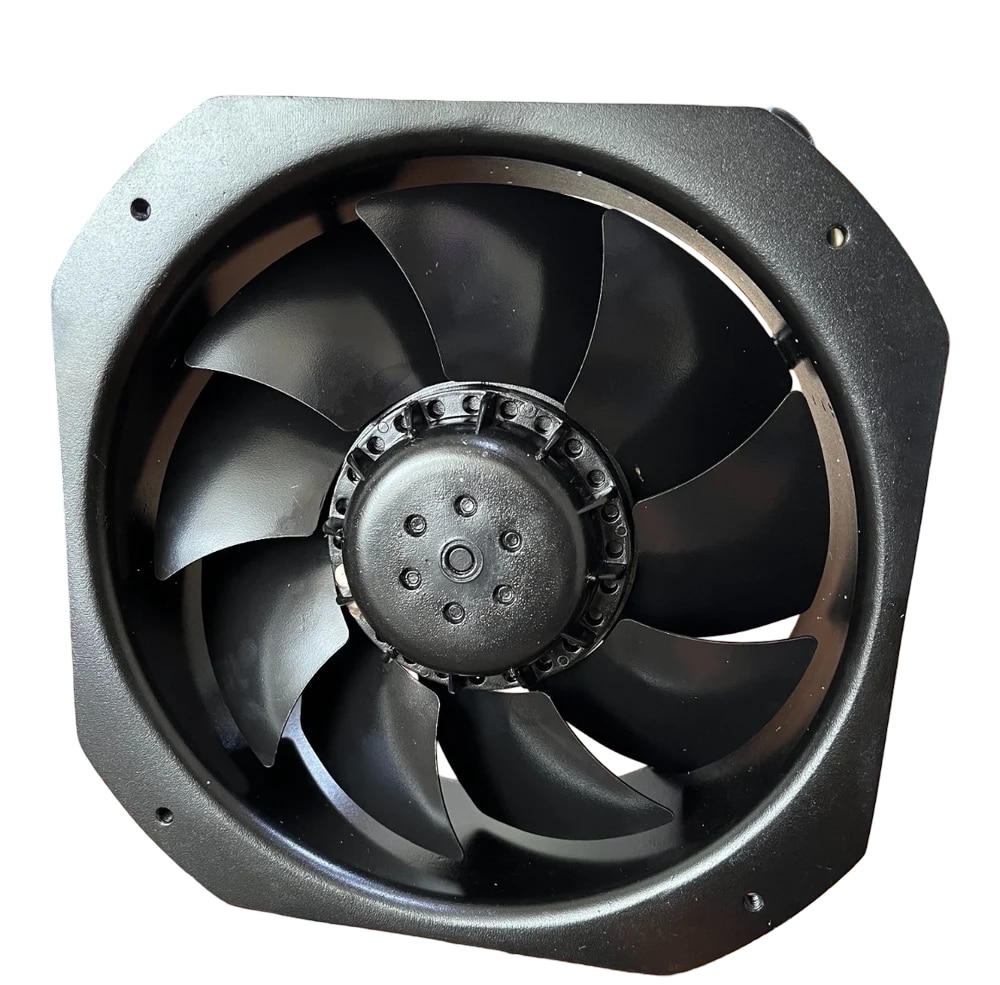

Brand: Rexnord Model No.: REC 22580 B2 HW-MB-C Product Type: AC Axial Cooling Fan Fan Type: Industrial AC Axial Fan Size: 8 Inch Dimension (L×W×H): 225 × 225 × 80 mm Dimension (Inches): 8-7/8 × 8-7/8 × 3-1/8 Inch Bearing Type: Ball Bearing Blade Type: Metal Blade Impeller Material: Metal Housing Material: Aluminium Die-Cast Housing Color: Black Rated Voltage: 220–240V AC Operating Voltage: 185–245V AC Frequency: 50 Hz Phase: Single Phase Rated Current: 0.26 A Input Power: 58 W Speed: 2650 RPM Air Flow: 550 CFM Static Pressure: 22 mm H₂O Noise Level: 56 dB(A) Motor Design: External Rotor with Capacitor Driven Motor Insulation Class: Class F IP Rating: IP54 Connection: Connector PA-10 Dielectric Strength: 1500 VAC for 1 minute Insulation Resistance: Above 100 MΩ at 500 VDC Operating Temperature: -20°C to +80°C
