Description

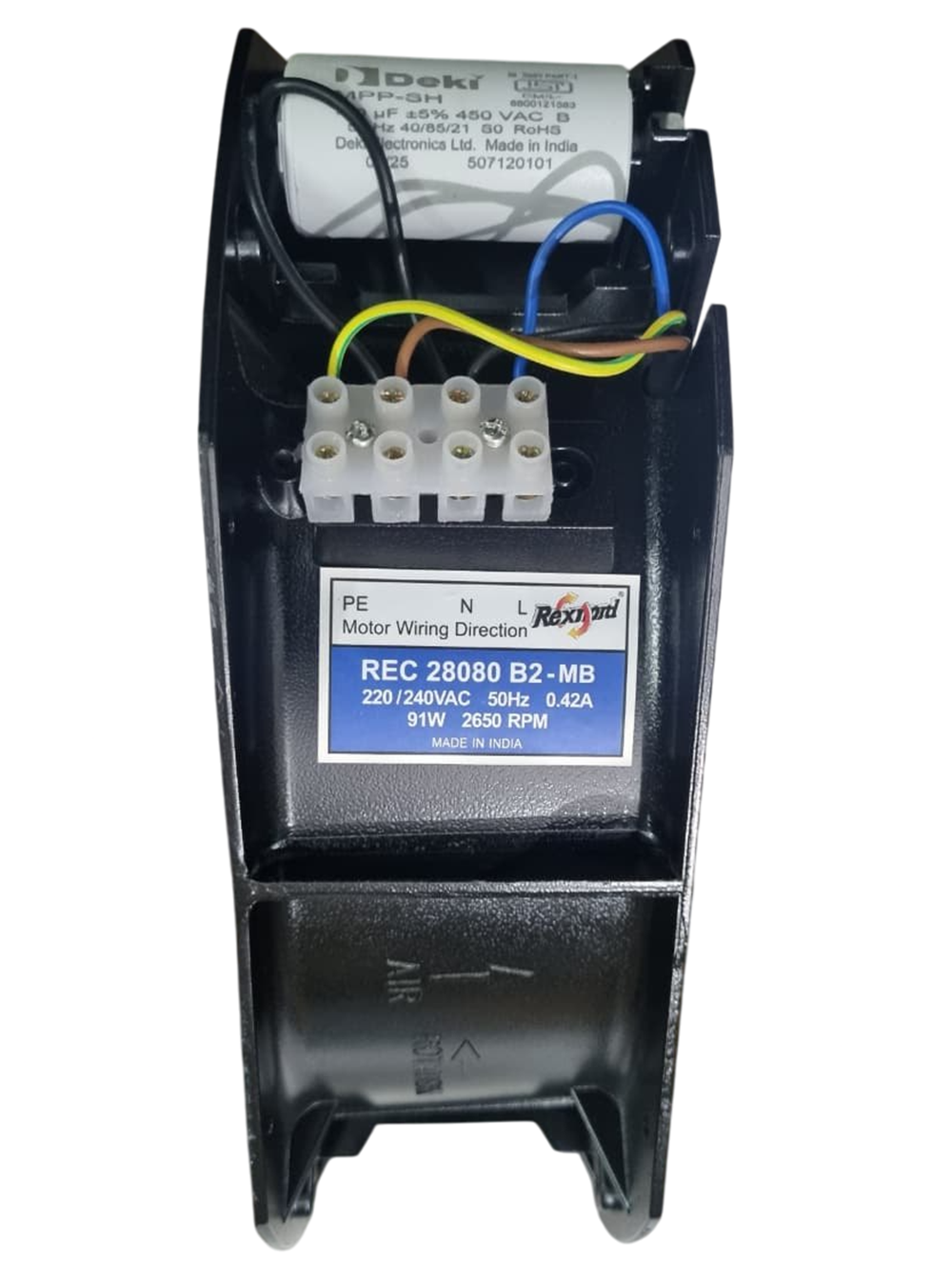

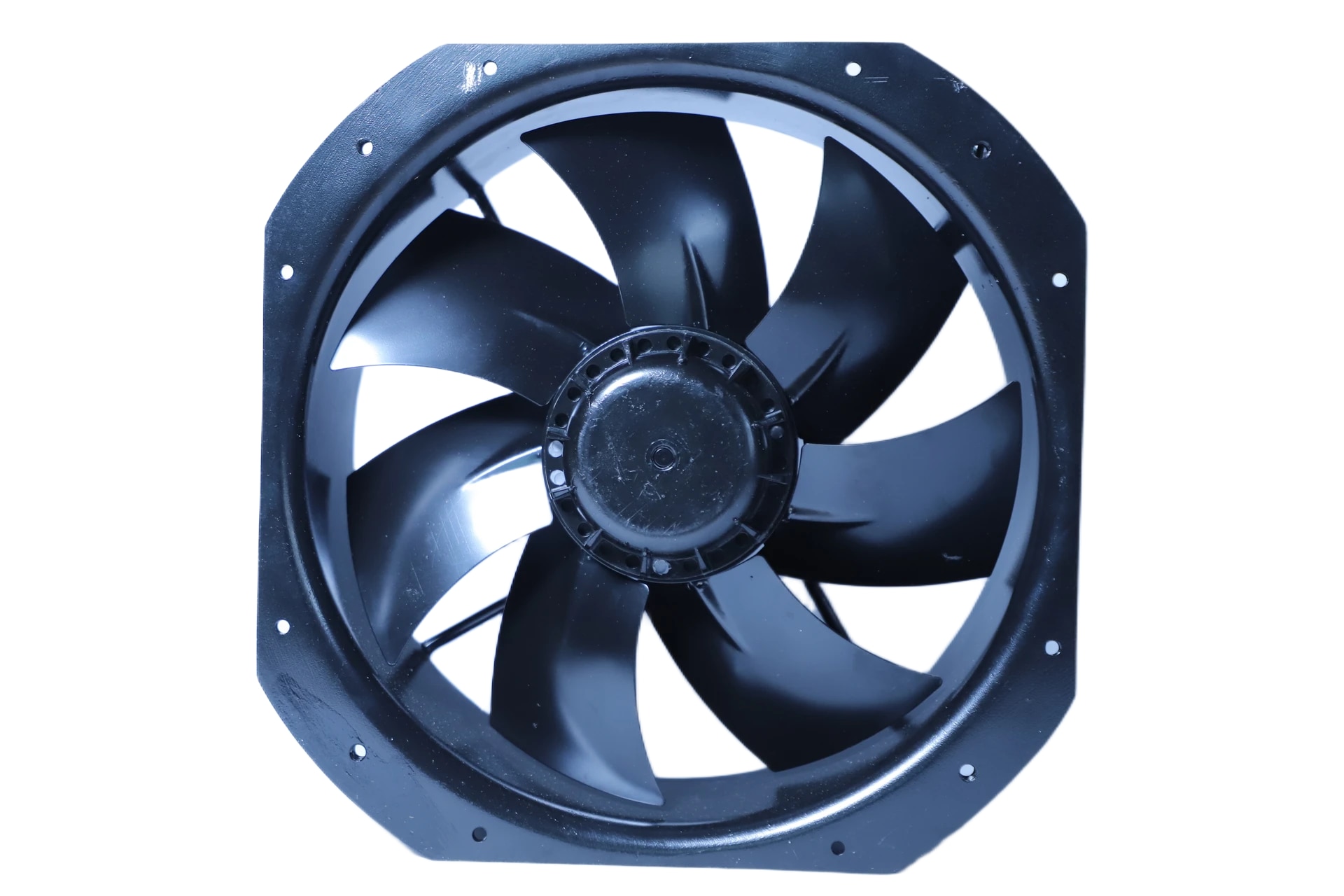

Brand: Rexnord Model No.: REC 28080 B2-MB Product Type: AC Axial Cooling Fan Fan Type: Industrial Axial Fan Blade Type: Metal Blade No. of Blades: 7 Bearing Type: Ball Bearing Housing Material: Aluminium Die-Cast Impeller Material: Metal Color: Black Size: 10 Inch Dimension (L×W×H): 280 × 280 × 80 mm Rated Voltage: 220–240V AC Operating Voltage: 185–245V AC Frequency: 50 Hz Phase: Single Phase Rated Current: 0.42 A Power Rating: 96 W Speed: 2650 RPM Air Flow: 1100 CFM Static Pressure: 22 mm H₂O Noise Level: 58 dB(A) Insulation Class: F IP Rating: IP54 Operating Temperature: -20°C to +80°C Dielectric Strength: 1500 VAC for 1 minute Insulation Resistance: Above 100 MΩ at 500 VDC Connection: PA-10 Connector Motor Design: External Rotor with Capacitor-Driven Motor Power Source: Electrical / AC Usage: Industrial Cooling and Ventilation
