Description

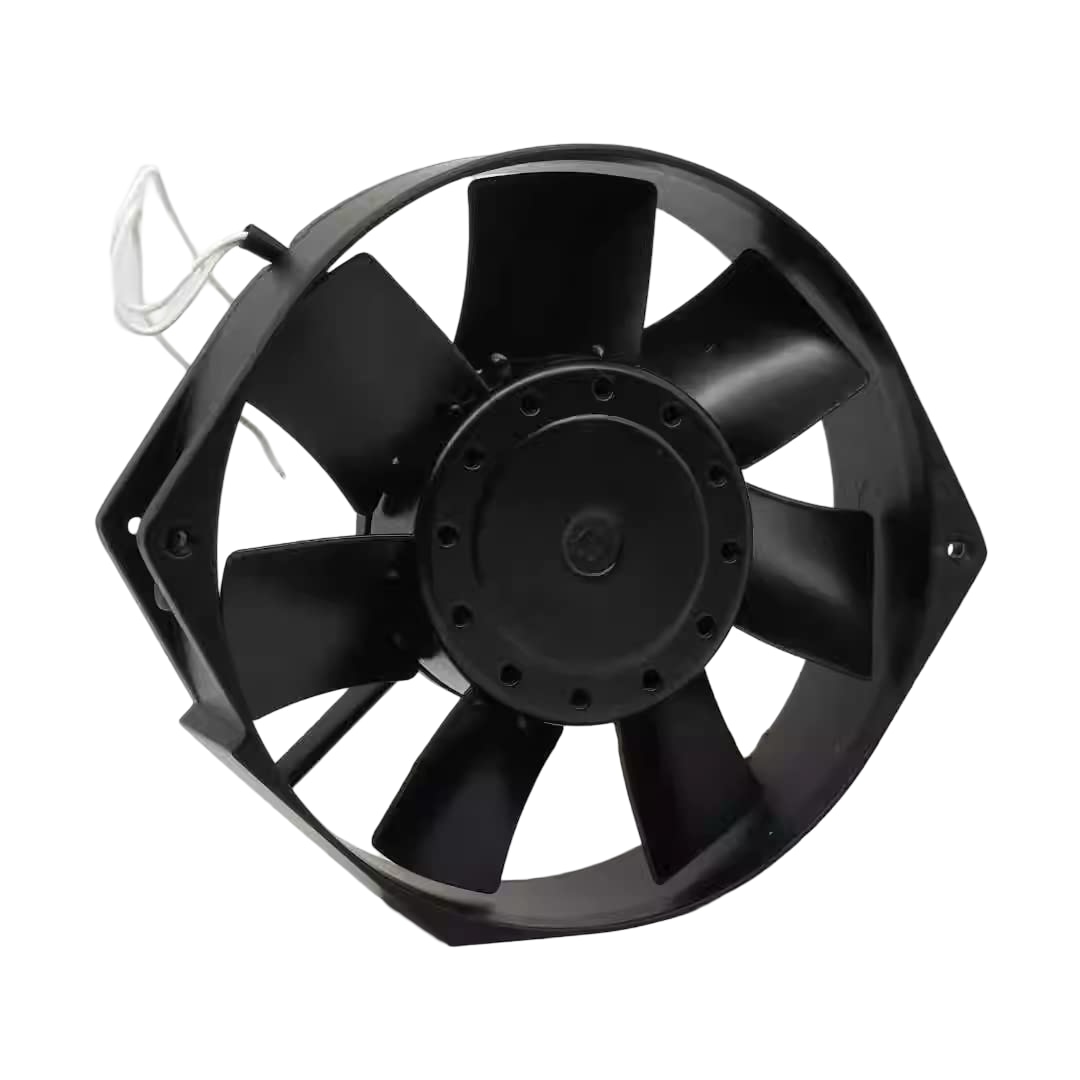

Model : UT797C-TP(B13) Type : Axial Cooling Fan Brand : Royal Fan AC/DC : AC Voltage : 230 V AC Frequency : 50/60 Hz Power : 36/31 W Current : 0.26 / 0.22 A Body Size : 172 × 150 × 38 mm Fan Type : Axial Flow Fan Blade Material : Iron Blade Frame Material : Aluminum Alloy Speed : 2650 / 3100 RPM Air Flow : 4.8 / 5.7 m³/min Static Pressure : 104 / 107 Pa Noise Level : 55 / 58 dB(A) Wiring Type : 2 Wire Mounting Type : Panel / Equipment Cooling Mount Application : Industrial Cooling, Control Panels, Machines, Electrical Cabinets Operating Temperature : Industrial Standard (varies by environment) Condition : New / Industrial Grade Usage : Continuous Duty Cooling Protection Type : Standard Industrial Protection
