Description

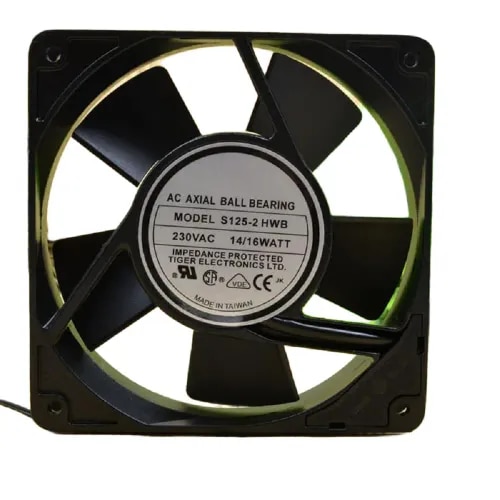

Product Type: AC Axial Cooling Fan Model: S125-2 HWB Brand: Tiger Rated Voltage: 230 V AC Frequency: 50/60 Hz Rated Current: 0.08 / 0.07 A Power Consumption: 16 / 14 W Fan Size: 120 × 120 × 25 mm Fan Size (Inch): 4.72 × 4.72 × 0.98 in Fan Speed: 2400 / 2900 RPM Air Flow: 63–74 CFM (Approx.) Static Pressure: 4.7 mmH₂O Noise Level: 38–42 dB(A) Bearing Type: Dual Ball Bearing Motor Type: Shaded Pole AC Motor Frame Material: Die-Cast Aluminum (ADC12) Blade Material: PBT Thermoplastic (UL94V-0) Connection Type: 2-Wire Lead Protection: Impedance Protected Insulation Class: Class B Operating Temperature: -30°C to +75°C Storage Temperature: -40°C to +80°C Life Expectancy: Up to 50,000 Hours Mounting Type: Panel Mount Application: Electrical Control Panels, Industrial Automation, UPS Systems, Servo Stabilizers, Telecom Equipment, Power Supplies, CNC Machines, HVAC Equipment, Industrial Machinery
