Description

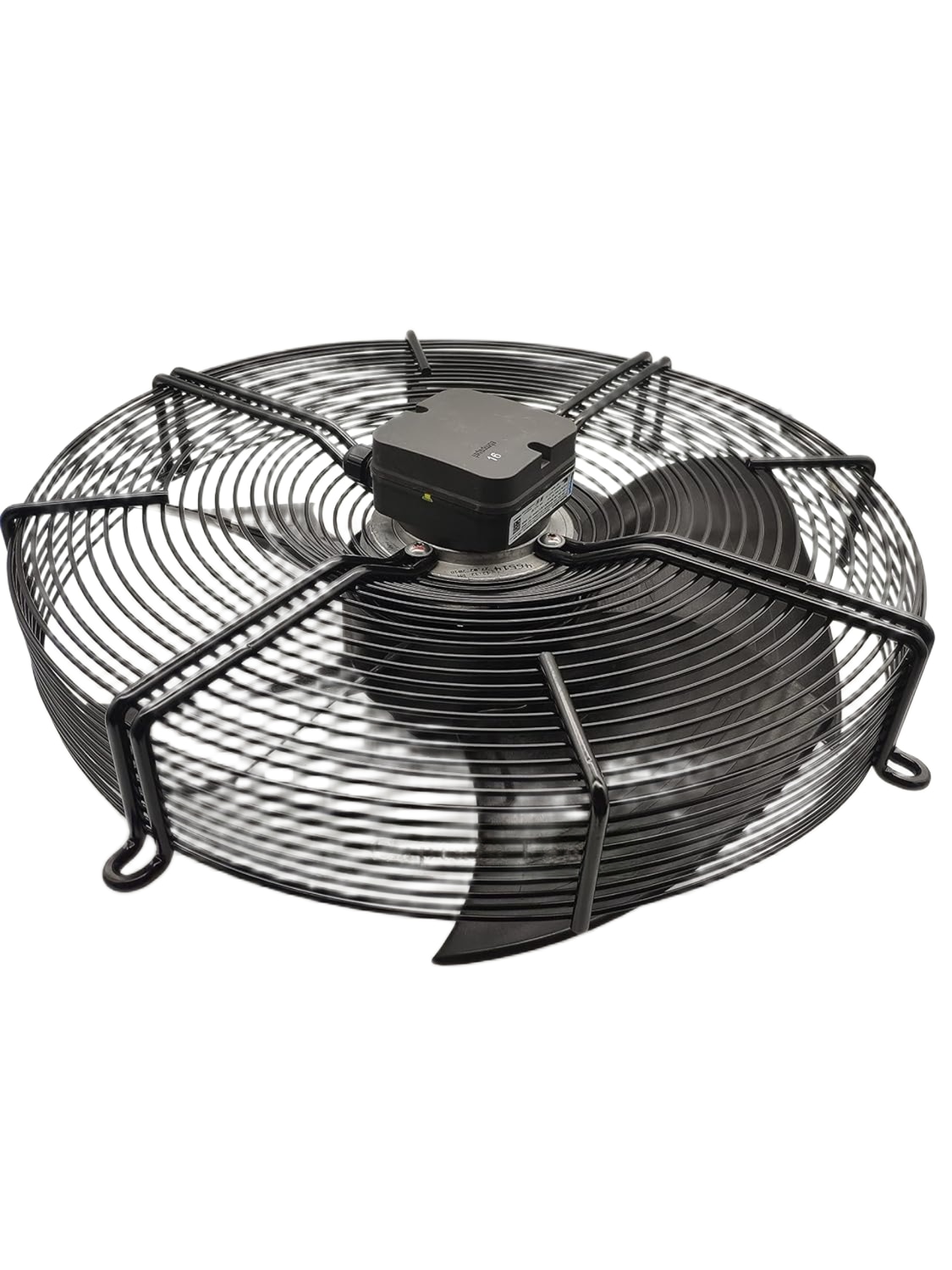

Manufacturer: ebm-papst Brand: EBM-Papst Model: S4E500-AM03-01 Fan Type: AC Axial Cooling Fan Application Type: Wall Mounted / Tube Axial Series: S Series (HyBlade®) Fan Size: 500 mm (20") Supply Voltage: 230 VAC Frequency: 50/60 Hz Phase: Single Phase Motor Type: External Rotor AC Motor (M4E110-GF) Motor Power: 680 W (50 Hz) / 880 W (60 Hz) Current Rating: 3.0 A (50 Hz) / 3.88 A (60 Hz) Speed: 1300 RPM (50 Hz) / 1400 RPM (60 Hz) Air Flow: Up to 8,905 m³/h (≈5,240 CFM) Bearing Type: Maintenance-Free Ball Bearing Blade Material: HyBlade® Composite (Aluminium Core with Plastic/PP) Number of Blades: 5 Protection Rating: IP44 Insulation Class: F Motor Protection: Thermal Overload Protector (TOP) Capacitor: 12 µF / 450 V Operating Temperature: -40°C to +65°C (50 Hz), up to +40°C (60 Hz) Mounting Position: Shaft Horizontal or Rotor Down Rotation Direction: Counter-Clockwise (Viewed from Rotor Side) Operating Mode: Continuous Duty (S1) Overall Dimensions: Ø525 × 179 mm Net Weight: Approx. 12.9 kg Package Dimensions: 560 × 560 × 240 mm (Approx.) Gross Weight: Approx. 14.0 kg
