Description

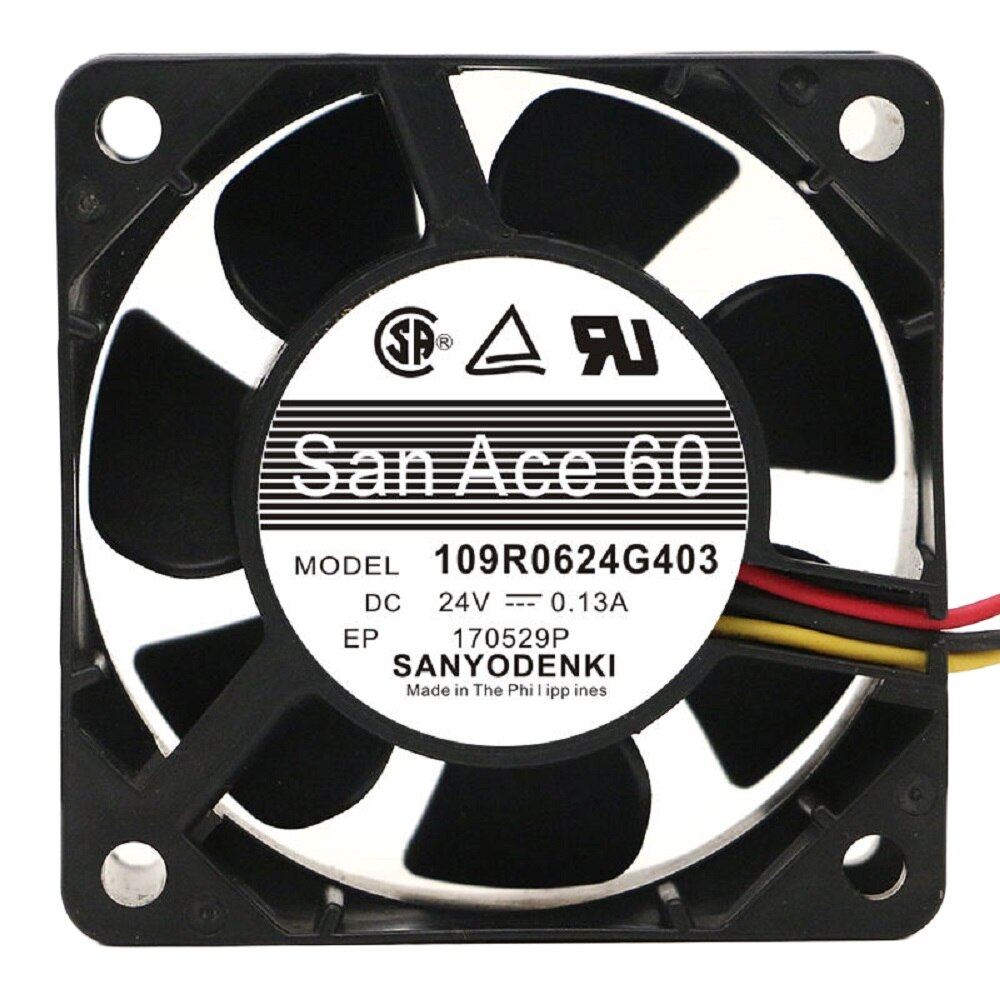

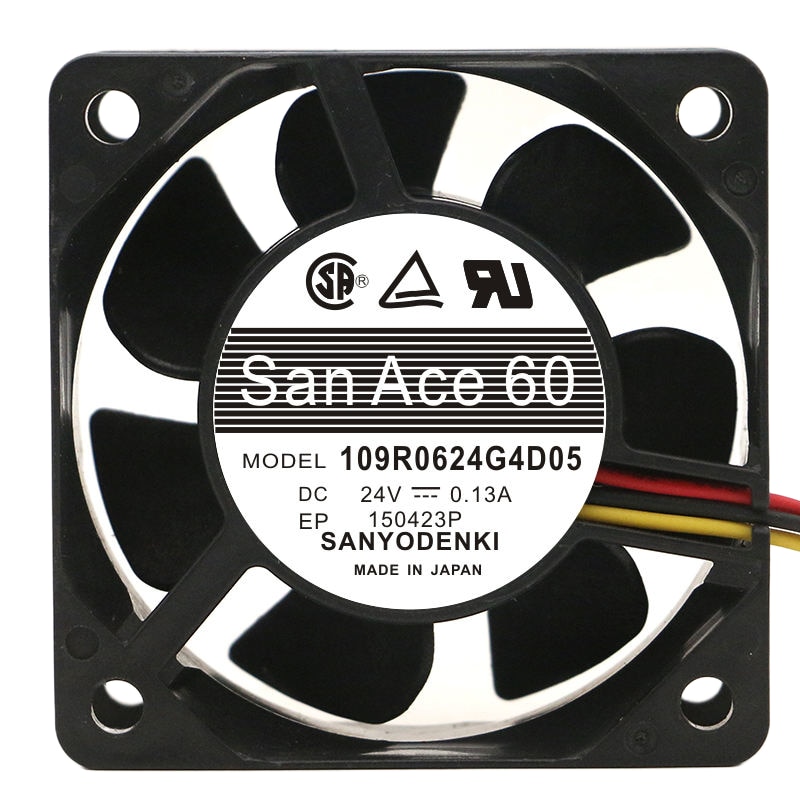

Brand: SANYO DENKI Series: San Ace 60 (109R Series) Models: 109R0624G402 / G403 / G4021 / G4D05 / G4D06 Fan Type: DC Axial Cooling Fan Fan Size: 60 mm × 60 mm × 25 mm Rated Voltage: 24V DC Voltage Range: 20.4 – 27.6 VDC Current Rating: ~0.13 A (model dependent) Power Consumption: ~3.0 – 3.5 W Speed: ~5000 – 6000 RPM Airflow: ~25 – 30 CFM Static Pressure: ~0.35 in H₂O Noise Level: ~38 – 40 dBA Bearing Type: Ball Bearing Fan Structure: Tube Axial Number of Wires: 2 / 3 Wire (variant based) Frame & Blade Material: High-quality plastic Operating Temperature: -20°C to +70°C Life Expectancy: ~40,000 hours @ 60°C Protection Feature: Locked Rotor Protection Mounting Type: Panel Mount
