Description

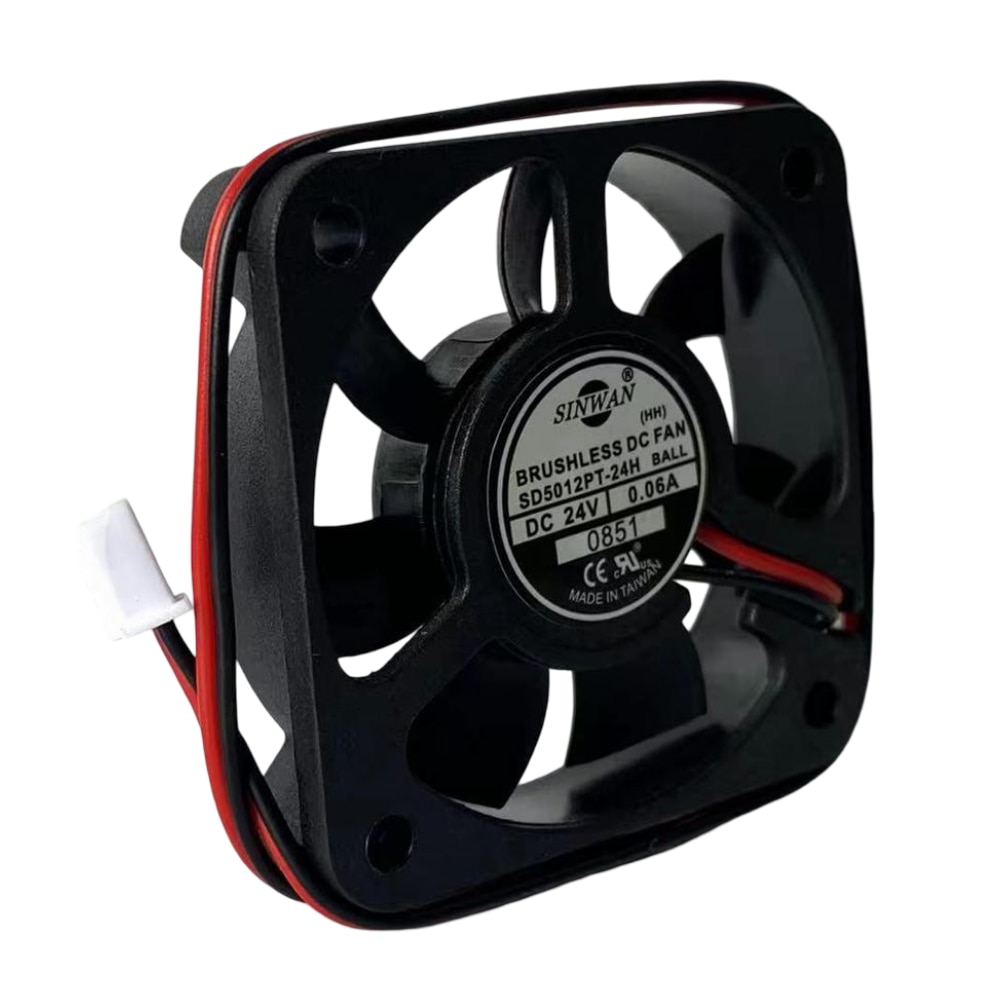

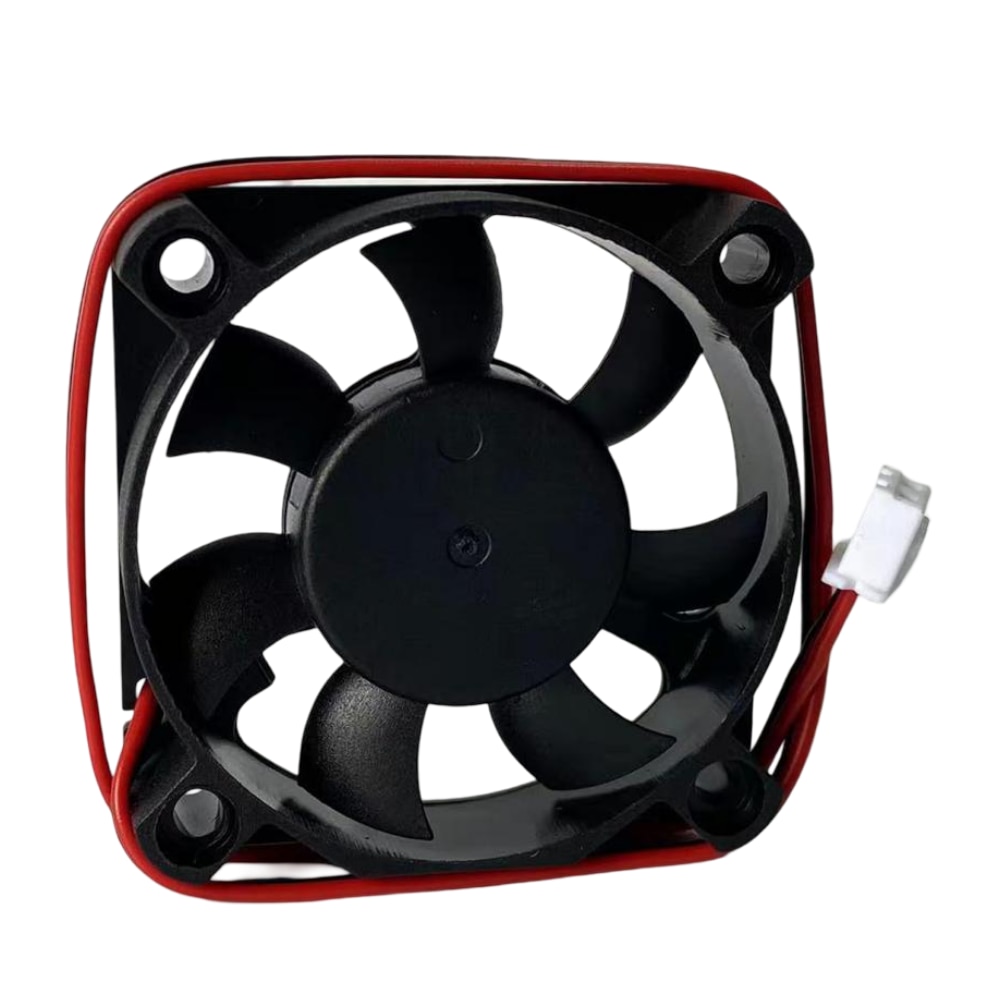

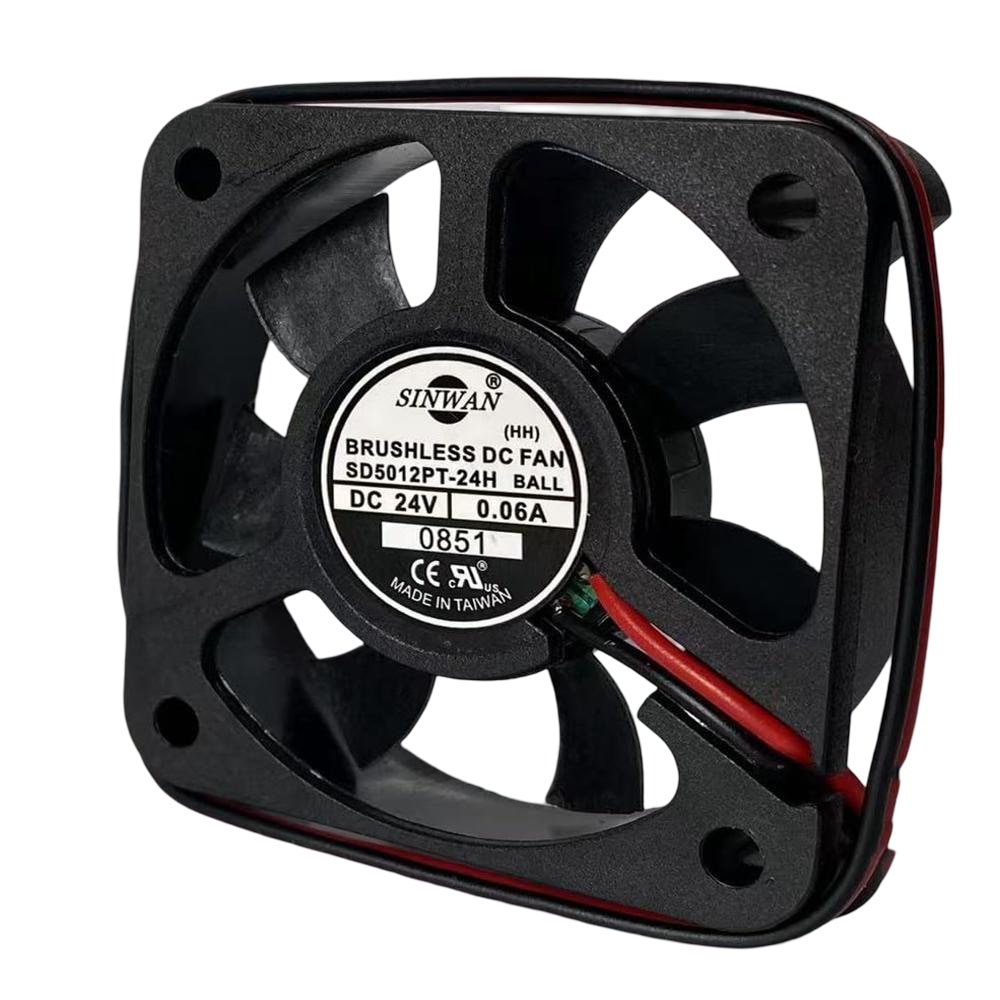

Product Name: SD5012PT-24H DC Brushless Axial Cooling Fan Brand: Sinwan Product Type: DC Brushless Axial Cooling Fan Model: SD5012PT-24H Rated Voltage: 24 V DC Operating Voltage: 12–27.6 V DC Rated Current: 0.06 A Power Consumption: 1.5 W Fan Size: 50 × 50 × 12 mm Fan Size (Inch): 1.97 × 1.97 × 0.47 in Fan Speed: 4500 RPM Air Flow: 11 CFM (0.30 m³/min) Static Pressure: 2.54 mmH₂O Noise Level: 26 dB(A) Bearing Type: Dual Ball Bearing Motor Type: Brushless DC Motor Frame Material: Glass Fiber Reinforced Thermoplastic (UL94V-0) Blade Material: Glass Fiber Reinforced Plastic Rotation: Counter Clockwise (Rotor Side) Connection Type: Lead Wire Protection: Electronic Polarity Protection IP Rating: IP55 (Optional IP67) Dielectric Strength: 500 VAC for 1 Minute Operating Temperature: -20°C to +65°C Storage Temperature: -20°C to +75°C Life Expectancy: Up to 70,000 Hours Mounting Type: Panel Mount Application: Industrial Equipment, Power Supply, UPS, Inverter, Telecom Equipment, Control Panel, Automation System, Medical Devices
