Description

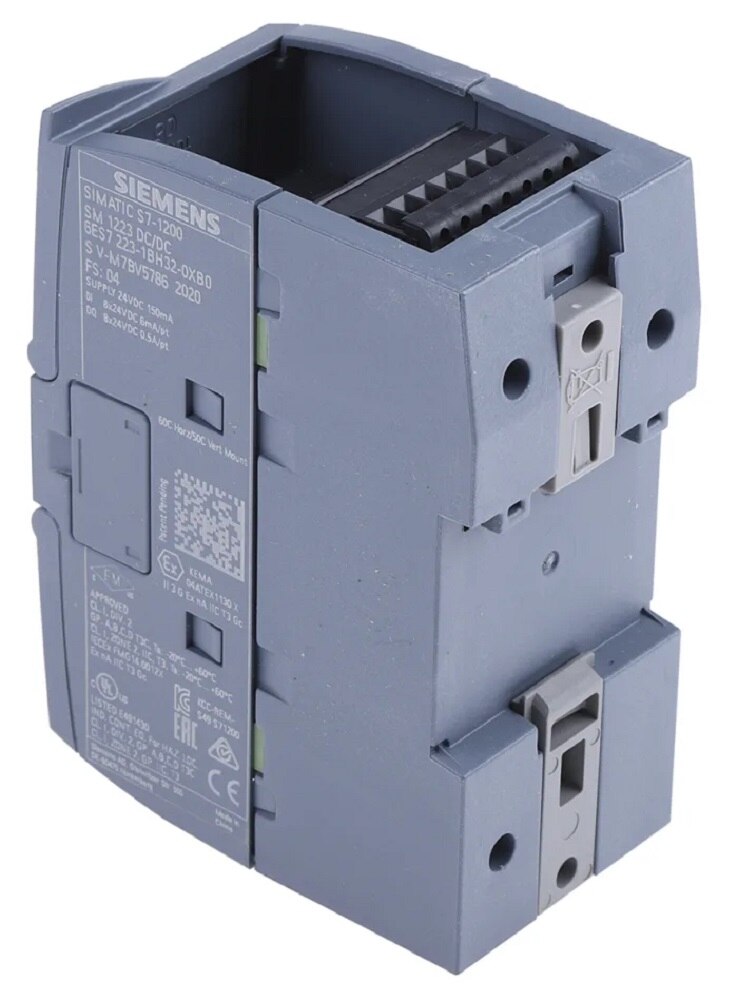

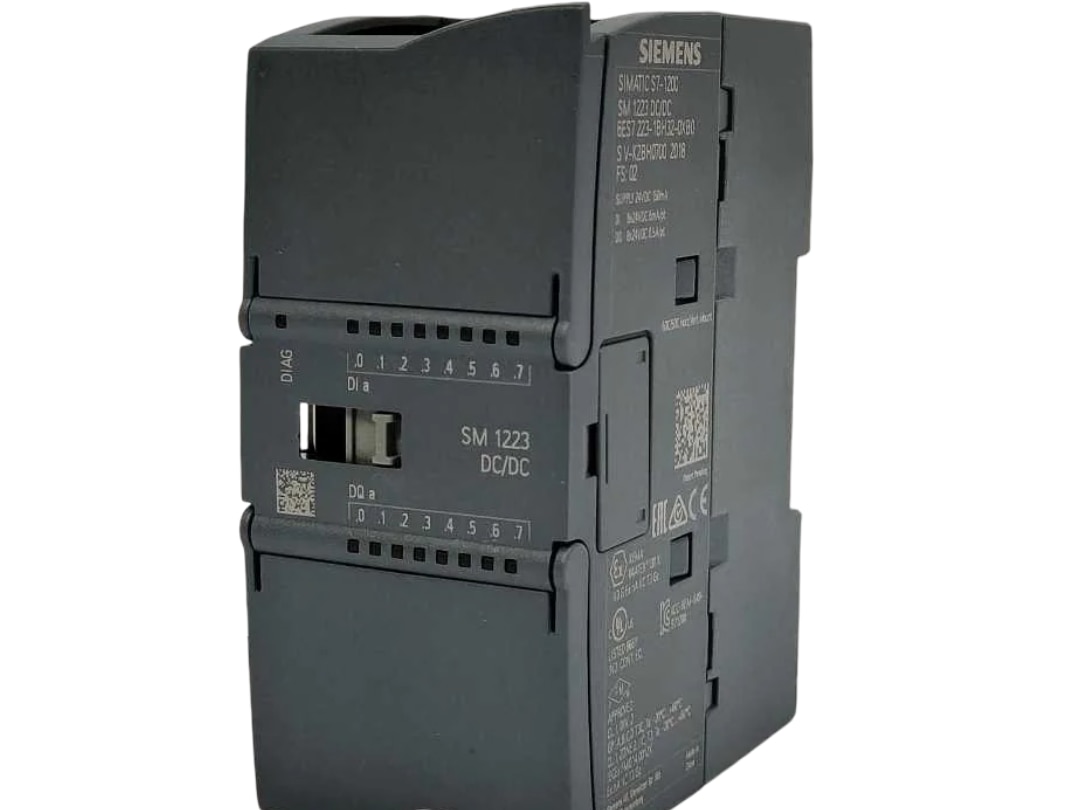

Brand: Siemens Model Number: 6ES7223-1BH32-0XB0 Product Type: PLC Digital I/O Expansion Module Series: SIMATIC S7-1200 Module Type: SM 1223 Digital I/O Module Digital Inputs: 8 DI Digital Outputs: 8 DO Input Voltage: 24 V DC Input Type: Sink / Source Output Type: Transistor Output Output Current: 0.5 A per Output Total I/O Points: 16 Channels Communication Interface: Backplane Bus Mounting Type: DIN Rail Mount Protection Class: IP20 Wiring Type: Screw Terminal Operating Temperature: -40°C to 70°C Storage Temperature: -40°C to 85°C Supply Voltage: 24 V DC Isolation: Integrated Electrical Isolation Programming Software: Siemens TIA Portal Compatible PLC: Siemens S7-1200 Series Dimensions: 45 × 100 × 75 mm Width: 45 mm Height: 100 mm Depth: 75 mm Net Weight: Approx. 0.196–0.200 kg Packaging Dimensions: 8.8 × 10.8 × 5.7 cm Package Weight: Approx. 0.25 kg Color: Light Grey Compliance: RoHS Compliant Country of Origin: Germany Application: Industrial Automation, Machine Control, Conveyor Systems, Process Control Panels Product Lifecycle Status: Active Product
