Description

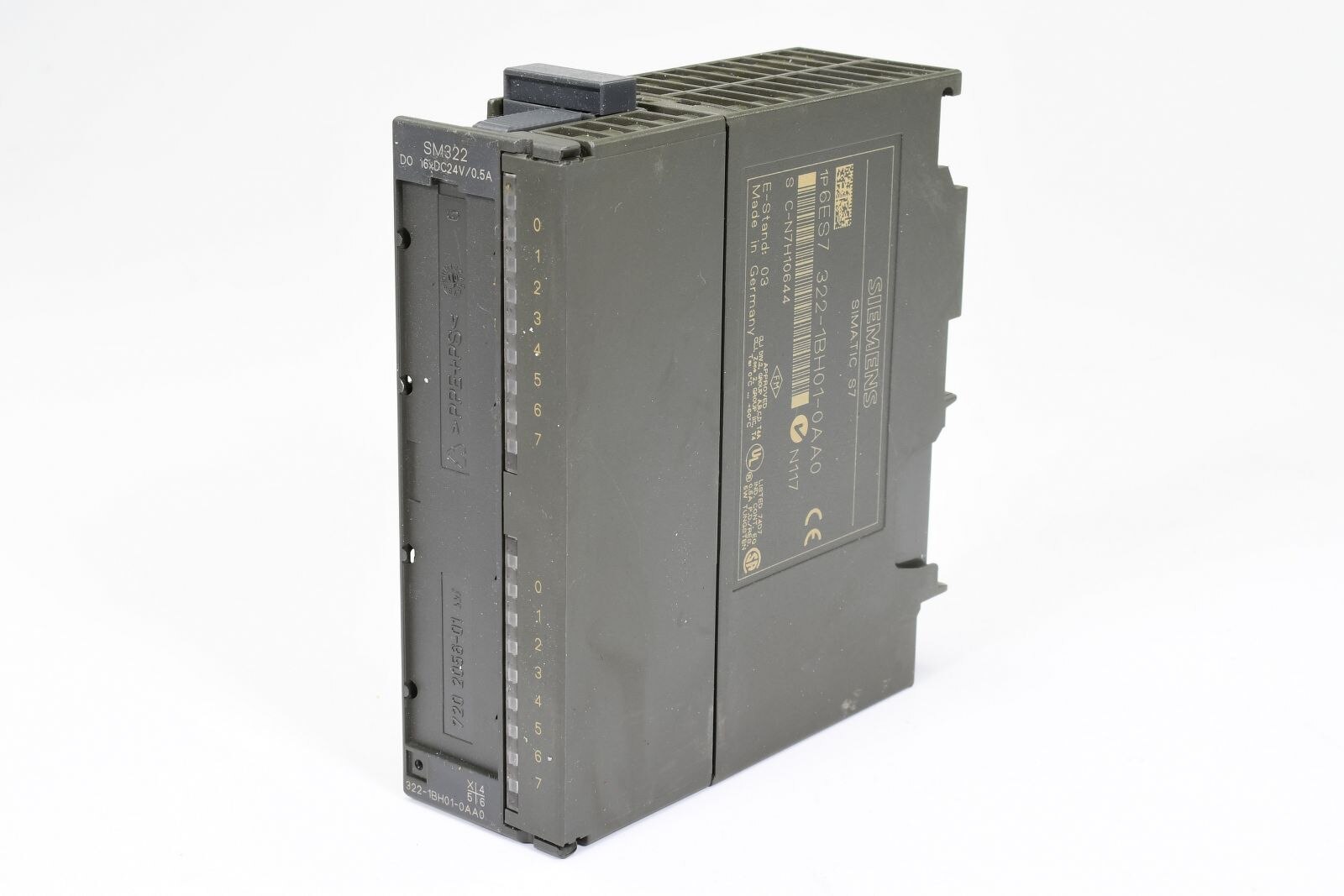

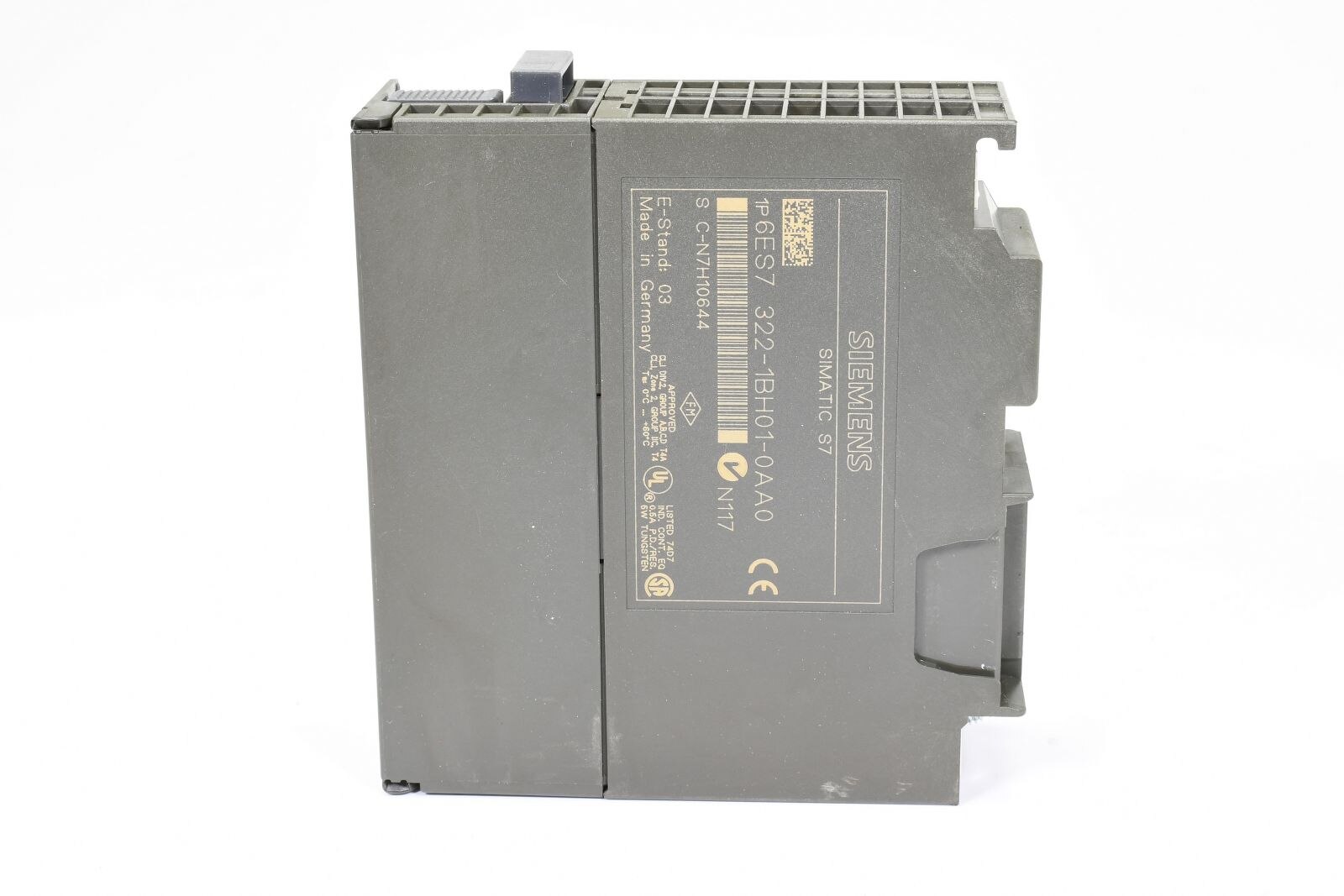

Brand : Siemens Model Number : 6ES7322-1BH01-0AA0 Product Series : SIMATIC S7-300 Module Type : Digital Output Module (SM 322) Number of Outputs : 16 DO Output Voltage : 24 V DC Output Current : 0.5 A per Channel Output Type : Digital Transistor Output Isolation : Optically Isolated Short Circuit Protection : Yes Load Voltage Range : 20.4 to 28.8 V DC Backplane Bus Current : Approx. 100 mA Power Loss : Approx. 6 W Switching Frequency : Up to 100 Hz Connector Type : 20-Pole Front Connector Mounting Type : Rack Mount / DIN Rail Dimensions : 40 × 125 × 120 mm Weight : Approx. 250 g Operating Temperature : 0°C to +60°C Storage Temperature : -40°C to +70°C Protection Class : IP20 Compatibility : Siemens S7-300 PLC Systems Country of Origin : Germany Application : Industrial Automation & PLC Control Systems
