Description

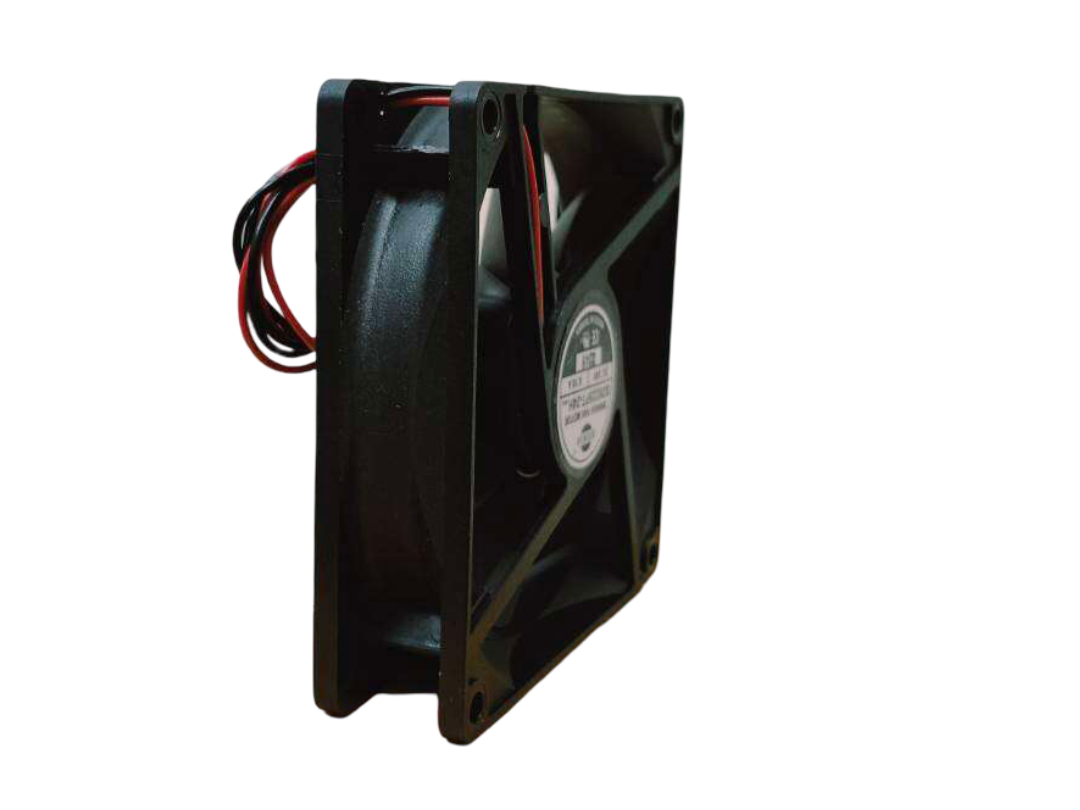

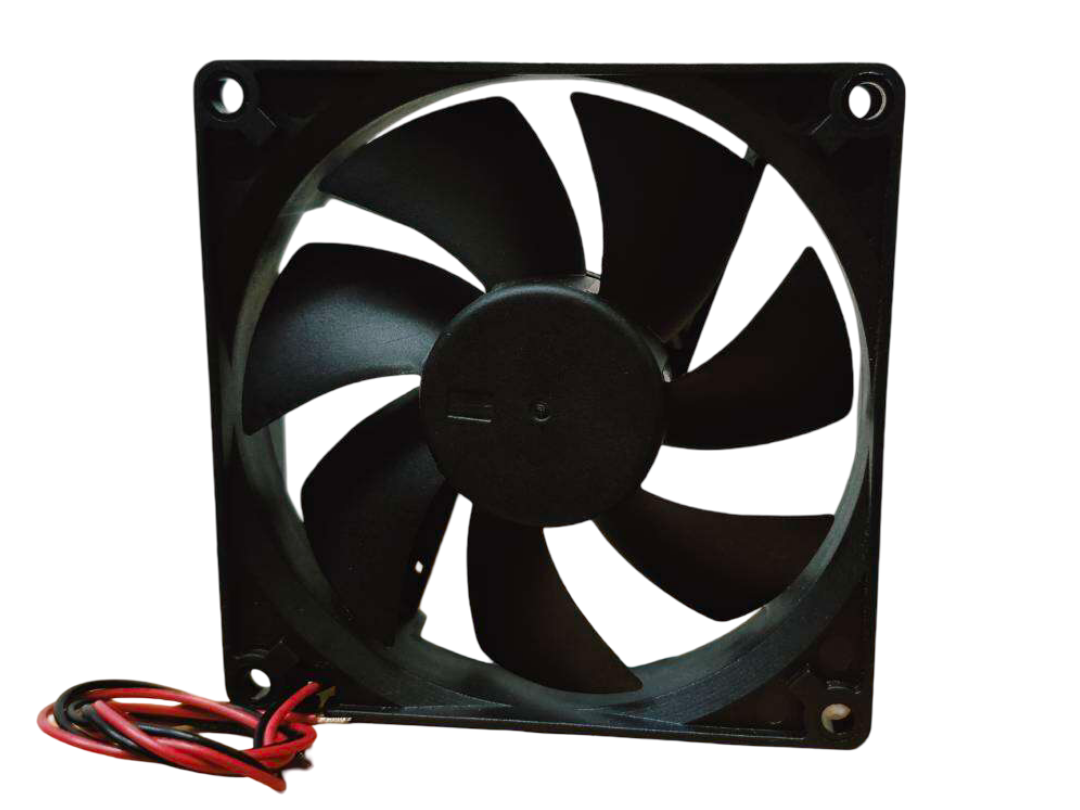

Product Type: DC Brushless Axial Cooling Fan Model: SD9225PT-24H Brand: Sinwan Rated Voltage: 24 V DC Operating Voltage: 12–27 V DC Rated Current: 0.18 A Power Consumption: 3.5 W Fan Size: 92 × 92 × 25 mm Fan Size (Inch): 3.62 × 3.62 × 0.98 in Fan Speed: 2900 RPM Air Flow: 50 CFM (1.4 m³/min) Static Pressure: 6.10 mmH₂O Noise Level: 33 dB(A) Bearing Type: Dual Ball Bearing Motor Type: Brushless DC Motor Frame Material: Glass Fiber Reinforced Thermoplastic (UL94V-0) Blade Material: Glass Fiber Reinforced Plastic (UL94V-0) Connection Type: Lead Wire / Terminal Rotation: Counter Clockwise (Rotor Side) Protection: Electronic Polarity Protection IP Rating: IP55 (Optional IP68) Dielectric Strength: 500 VAC for 1 Minute Operating Temperature: -20°C to +65°C Storage Temperature: -20°C to +75°C
