Description

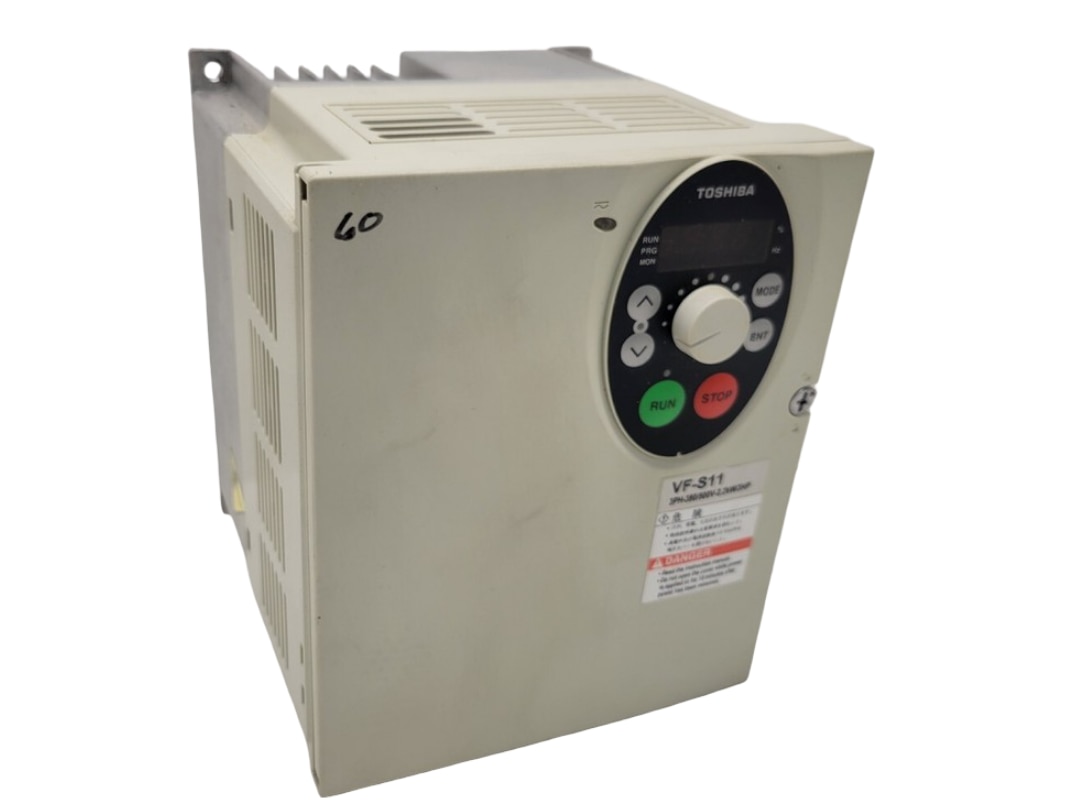

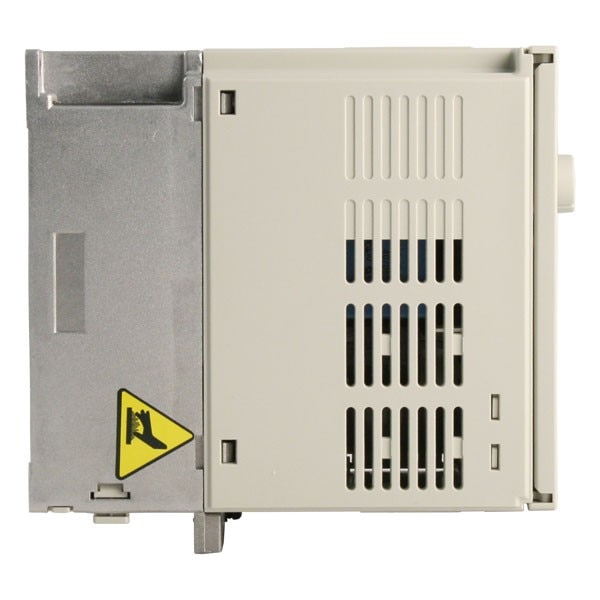

Category : Toshiba VFD Brand : Toshiba Model Number : VFS11-4022PL-WN Series : VF-S11 Series Product Type : Frequency Converter / AC Drive Power Rating : 2.2 kW Motor Power : 3 HP Input Voltage : 380-500 VAC Input Phase : Three Phase Rated Output Current : 5.5 A Output Frequency : 0.5-500 Hz Control Mode : Vector Control Enclosure : IP20 Application : Industrial Automation & Motor Speed Control Braking Type : Dynamic Braking Communication : Modbus RTU / RS485 Overload Rating : 150% for 60 Seconds EMC Filter : Built-in EMC Filter DC Reactor : Optional External DC Reactor Cooling Method : Forced Air Cooling Frame Size : Compact Industrial Frame Display Type : LED Digital Display Mounting Type : Wall Mount Programming Method : Keypad Programming Protection Features : Overload / Over Voltage / Over Temperature / Short Circuit Certifications & Standards : CE, UL, RoHS Operating Temperature : -10°C to +60°C Dimensions : 140 x 170 x 150 mm Dimensions in CM : 14 x 17 x 15 cm Dimensions in Inch : 5.51 x 6.69 x 5.90 Inch Weight : Approx. 3 Kg Color : White & Gray Country of Origin : Japan Warranty : 1 Year Condition : New
